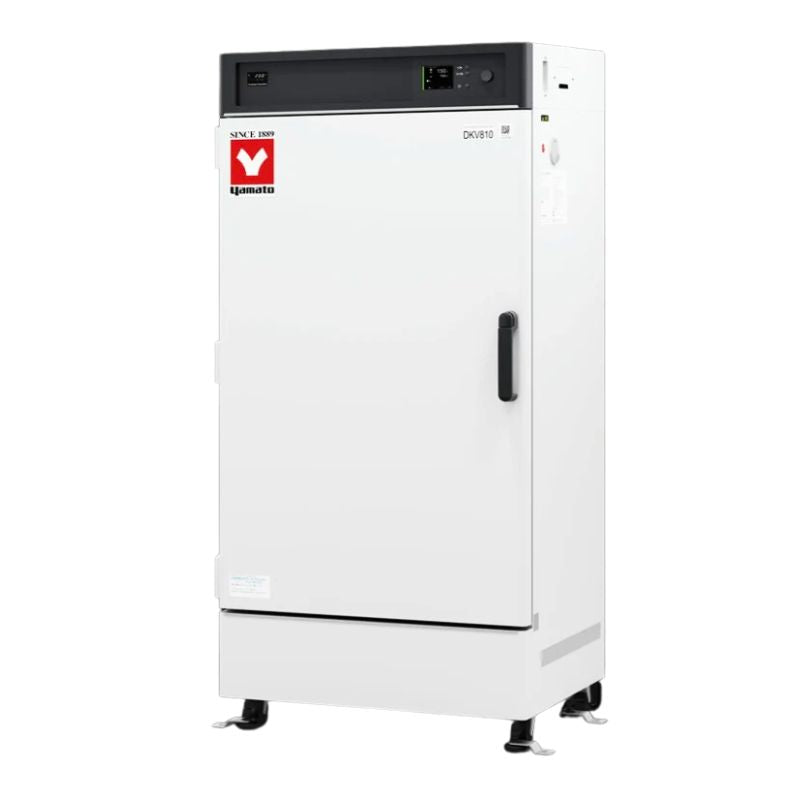

Yamato DKV810 Programmable Forced-Convection Oven – 10.6 Cu. Ft.

The Yamato DKV810 is a large-capacity programmable forced-convection laboratory oven combining a 300L / approximately 10.6 cu. ft. stainless-steel chamber with precise microprocessor temperature control and a modern 3.5" color LCD interface. Programmable operation, communication outputs, multiple safety systems, and a tall 1,000mm chamber make it well suited for asphalt, aggregate, soils, and general construction-materials laboratories requiring substantial drying and conditioning capacity.

Key Features

• 300L / approximately 10.6 cu. ft. chamber
• Forced-convection airflow
• Operating range approximately room temperature +10°C to 270°C
• 3.5" color LCD controller
• PID microprocessor temperature control
• Fixed-temperature and programmable operation
• Quick Auto-Stop, Auto-Stop, Auto-Start, and programmed operation
• Calibration offset and temperature upper/lower alarm functions
• RS-485 communication
• 4–20mA temperature output
• Stainless-steel chamber
• Built-in cable and exhaust ports
• Independent overtemperature protection
• Overcurrent leakage breaker
• Self-diagnostic safety functions
• 29 shelf positions at 30mm spacing
• 1-Year Warranty

Included Items

DKV810 oven, three shelf plates, six shelf brackets, and four fall-prevention fittings.

Typical Applications

Asphalt sample heating and drying, aggregate drying, soil moisture preparation, concrete-materials conditioning, laboratory aging, sample conditioning, thermal testing, research applications, and high-volume construction-materials laboratory work.

Lab Manager's Tip

The DKV810's tall 300L chamber is useful when you need substantial vertical capacity without moving to the much wider 545L DKV910. The programmable controller is also beneficial for laboratories running repeatable heating or conditioning cycles rather than simply holding one temperature all day.
