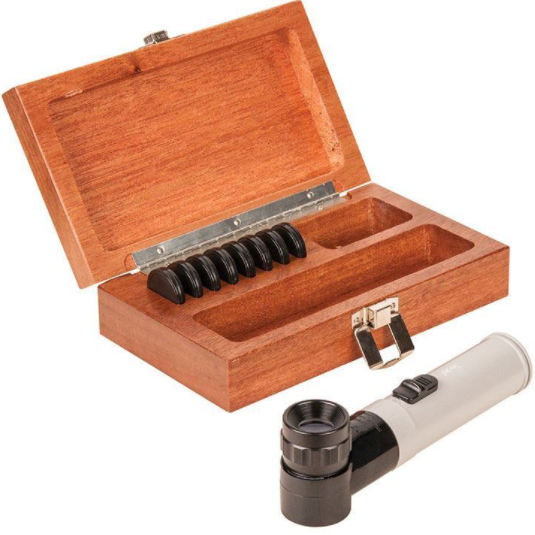

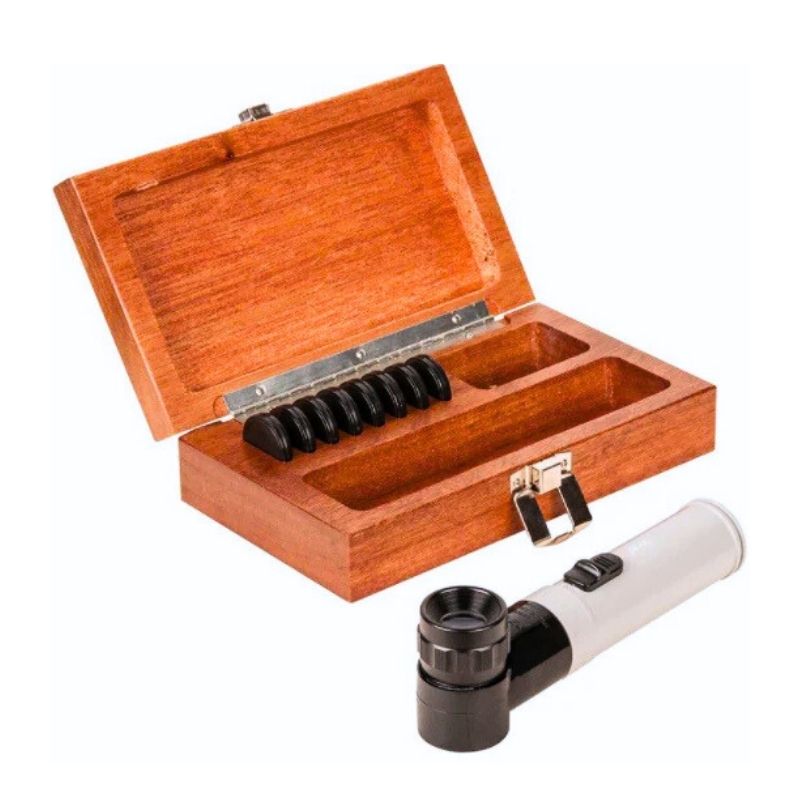

10x Optical Comparator w/ Wooden Case


$ 164.99
Item #: ME-3452

USA and Canada Prices Only. Click here for International Quotes

10x Optical Comparator


Allows for convenient identification of sieve opening sizes and close examination of the wire cloth condition. The comparator has precision scales in inch and millimeter units that are photo-etched on 1.2in (30.5mm) diameter interchangeable glass reticles with screw-in mounting. Magnified images are sharp, undistorted, and free of aberrations. The Comparator is packed in a wooden case with nine reticles included measuring distance, radii, diameters, angles, hole sizes, pitch, and thicknesses. An illuminating attachment for low-light conditions is also included and requires two C-size batteries for operation.

*Not effective for acceptance verification of wire cloth openings.


  • Ten-power magnification
  • Glass Reticles measure in inch or metric
  • The illuminating attachment used in low-light conditions
  • Components stored and protected in wooden case

Included Items:

  • 10x Optical Comparator
  • Nine Glass Reticles
  • Illuminating Attachment
  • Wooden Case
  • ME-3452
