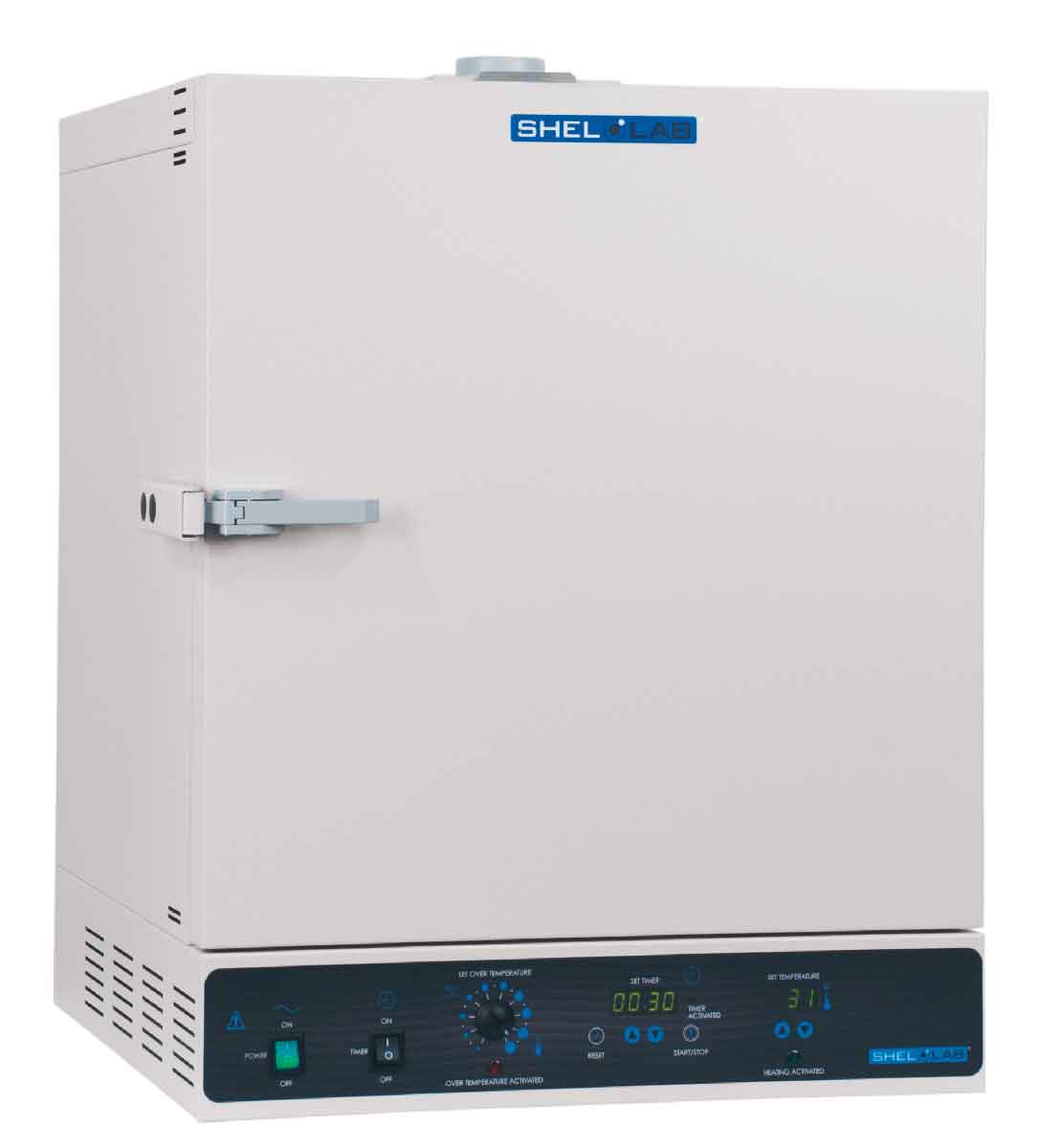

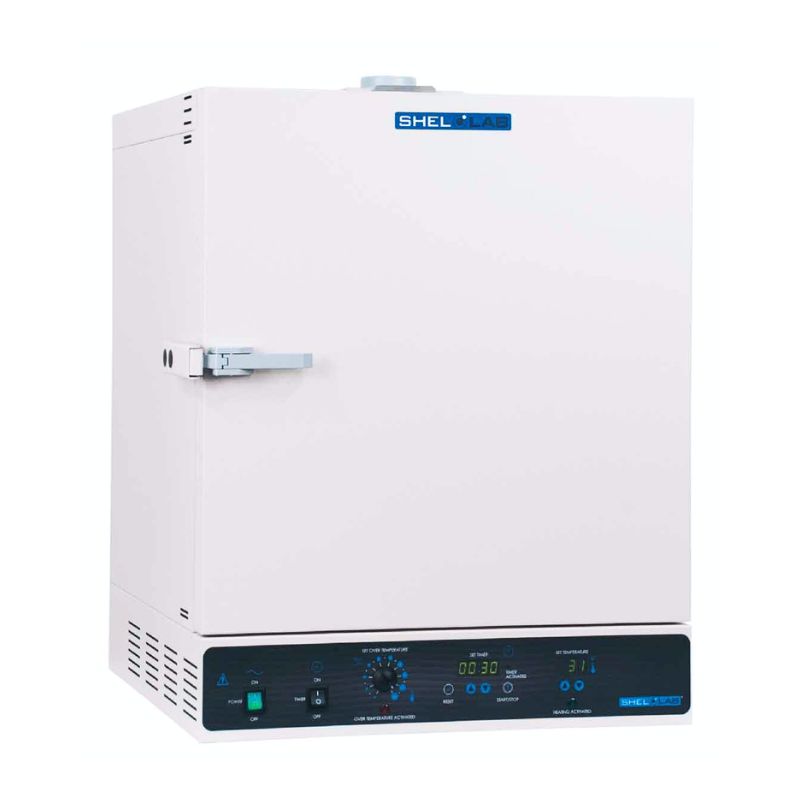

3-Cubic Ft Sheldon Forced Air Oven, 115V

The SHEL LAB 3-cubic-foot forced-air oven provides controlled heating for asphalt, aggregate and soils laboratories. Its forced horizontal airflow, digital temperature controls and stainless-steel chamber support sample conditioning, drying and general laboratory heating.

Key Features

• 3.0 cu. ft. nominal chamber volume
• Maximum operating temperature listed by HMA: 306°C
• Embedded microprocessor PID temperature control
• Countdown timer
• Horizontal forced airflow
• Stainless-steel interior
• Triple-wall construction helps limit exterior wall temperature
• 1.75-inch access port
• 115V power with NEMA 5-15P plug
• UL/CSA and CE approvals and DIN 12880 compliance

Lab Manager's Tip

Allow adequate clearance for airflow and verify that your laboratory circuit and outlet are suitable for the oven before installation. Do not use general-purpose ovens for flammable solvent evaporation unless specifically approved for that application.

Typical Applications

Asphalt specimen heating, aggregate drying, soil drying, sample conditioning, aging studies and laboratory research.

• User Manual
• Sheldon_SMO_Series_Forced_Air_Ovens.pdf
