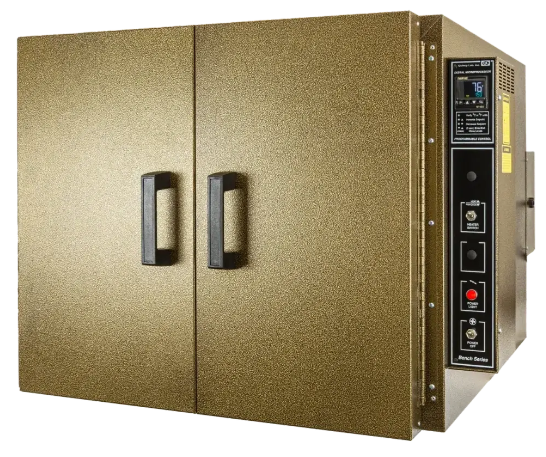

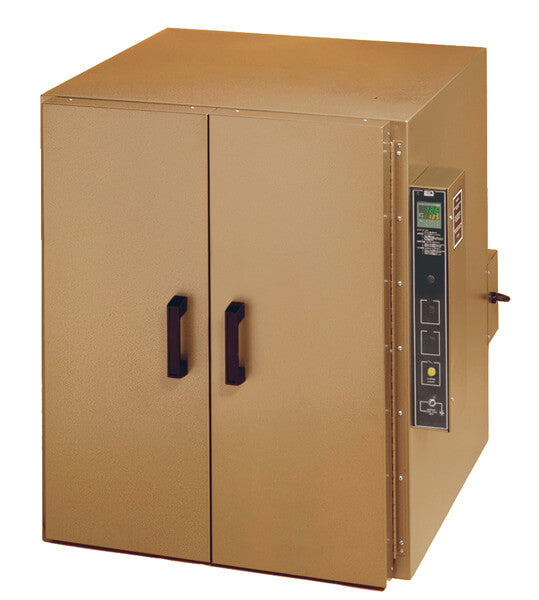

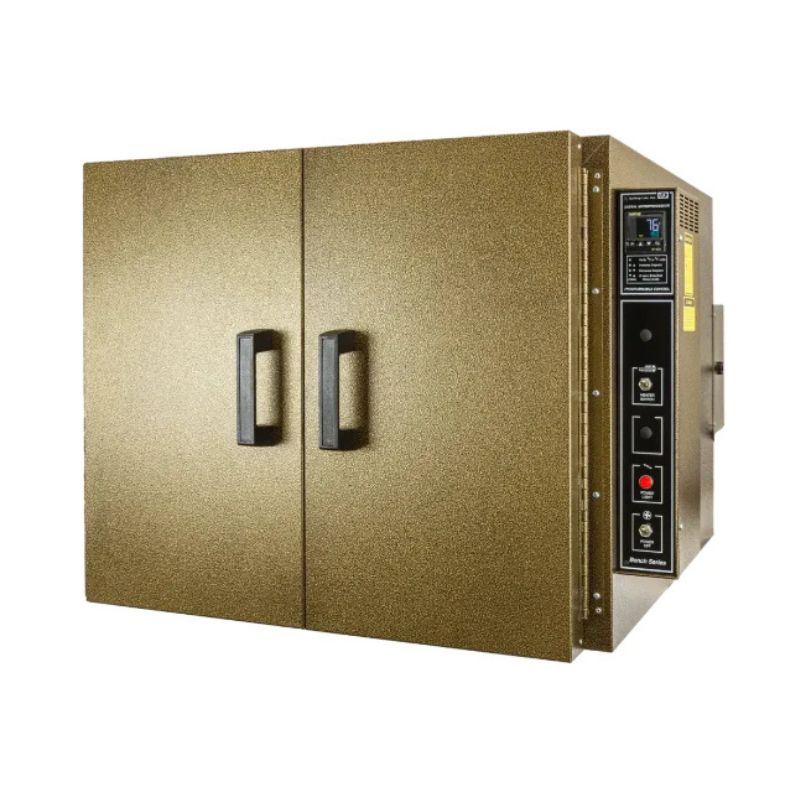

Quincy Stainless Steel Interior Workhorse Oven, 115V

Quincy Lab Workhorse Ovens provide forced-air laboratory heating with stainless-steel interiors for drying and conditioning aggregate, asphalt and soil specimens. HMA offers 7 cu. ft. and 10.6 cu. ft. configurations for laboratories needing larger batches and easy-clean chamber surfaces.

Key Features

• Useful for drying and conditioning associated with construction-materials test methods, subject to required temperature and uniformity checks
• Choose 7 cu. ft. or 10.6 cu. ft. nominal chamber configuration
• Stainless-steel chamber and drip pan
• Digital PID temperature controller with dual display
• Maximum temperature listed by HMA: 450°F
• Temperature uniformity listed by HMA: ±2°C
• Heavy-duty shelves rated at 80lb each
• 115V configuration with NEMA 5-15P plug
• Designed for Superpave-related laboratory preparation

Lab Manager's Tip

Verify the oven's 115V circuit, load distribution and airflow before installation. For ASTM C136/C136M aggregate gradation preparation or ASTM D2216 soil moisture determinations, follow the procedure's specified drying temperature and mass-constancy criteria; a 450°F maximum rating does not mean that temperature is appropriate for those tests.

Typical Applications

Aggregate drying, asphalt sample conditioning, soil moisture testing, sample preparation and routine construction materials laboratory heating.
