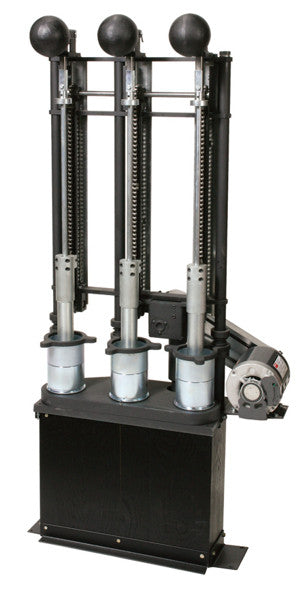

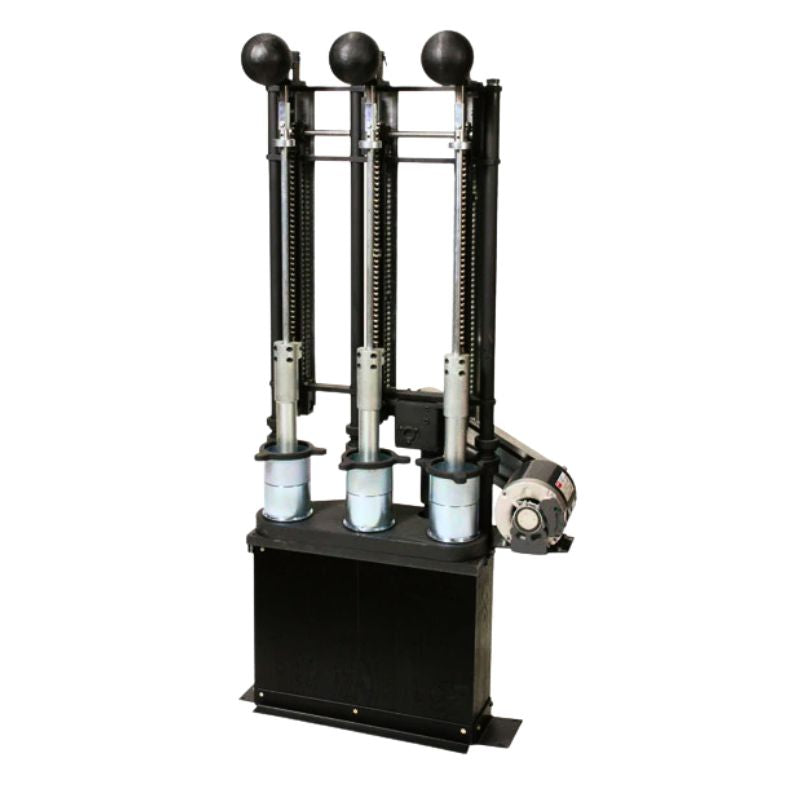

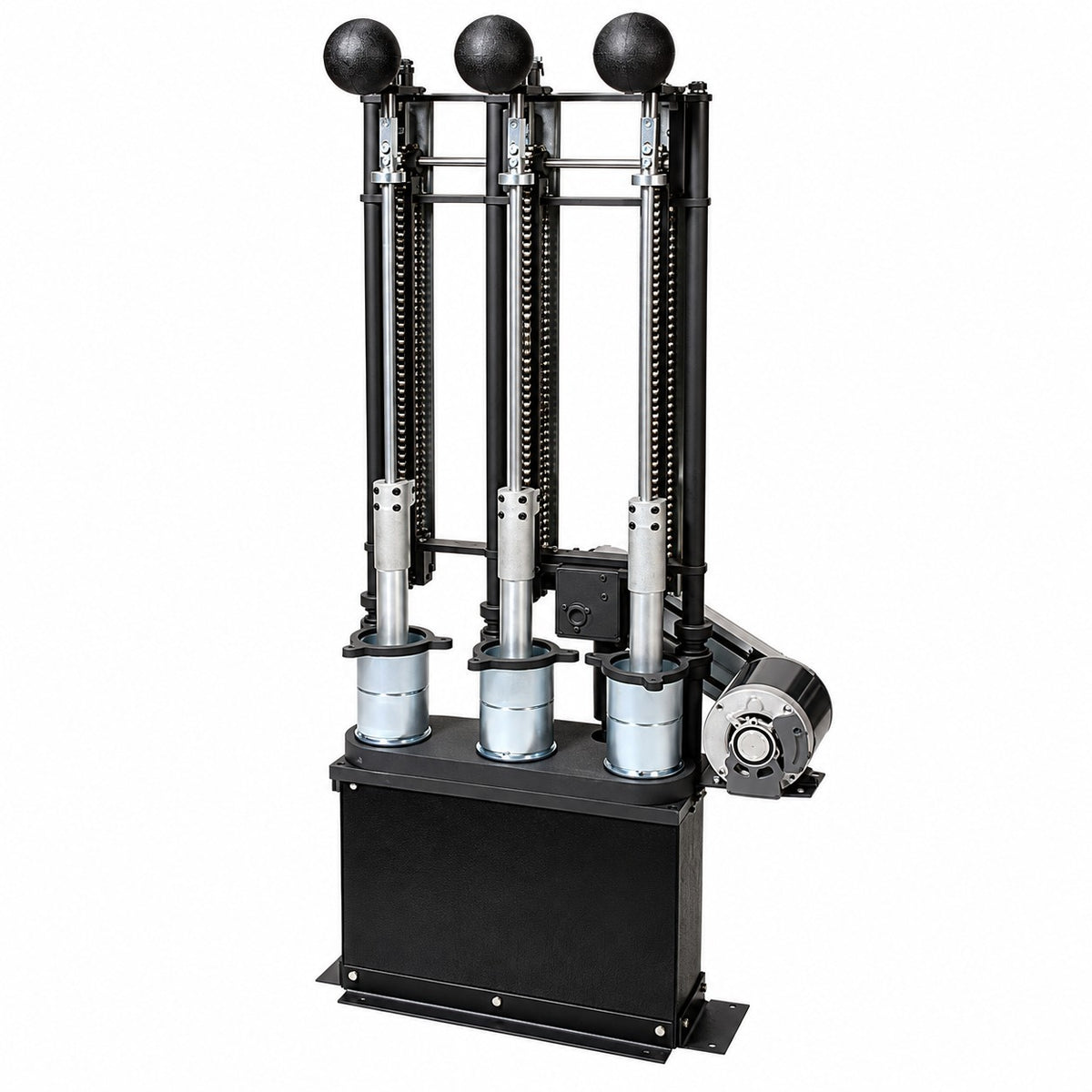

Automatic 4" Standard-Duty Triple Marshall Compactor with Rotating Molds

The Automatic Triple Marshall Compactor is designed for high-volume asphalt laboratories that need to prepare multiple Marshall specimens efficiently and consistently. Three 4" specimens are compacted simultaneously using rotating bases and 10lb bevel-faced hammers, while an automatic counter controls the compaction cycle.

Key Features

• Meets ASTM D5581, ASTM D6926, ASTM D6927, AASHTO R 68, and PTM 705
• Compacts three 4" / 102mm Marshall specimens simultaneously
• Rotating base plates and bevel-faced hammers provide consistent kneading action
• Three 10lb / 4.54kg hammer assemblies
• Automatic counter shuts off operation after the selected number of blows
• Single motor controls hammer operation and mold rotation
• ASTM-compliant oak compaction pedestal with steel plate
• Designed for high-throughput Marshall specimen preparation
• 115V/60Hz and 230V/50Hz models available

Included Items

Automatic Triple Marshall Compactor, ASTM-compliant oak pedestal with steel plate, automatic counter, three 10lb bevel-faced hammers, and three 4" compaction mold assemblies.

Typical Applications

Marshall specimen preparation, asphalt mix design, Marshall stability and flow testing, production QC/QA, DOT asphalt testing, commercial materials testing, and high-volume asphalt laboratory specimen preparation.

Lab Manager's Tip

This compactor makes the most sense when Marshall specimen volume is high enough to take advantage of three simultaneous compaction stations. Keeping additional preheated mold assemblies available can further increase throughput by allowing technicians to prepare the next specimens while another set is being compacted.
