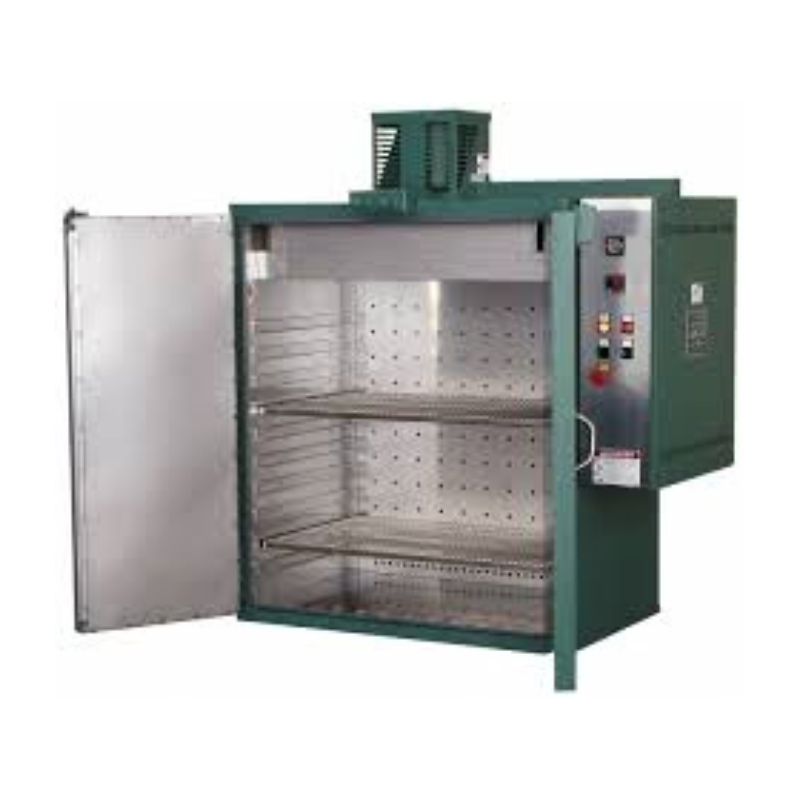

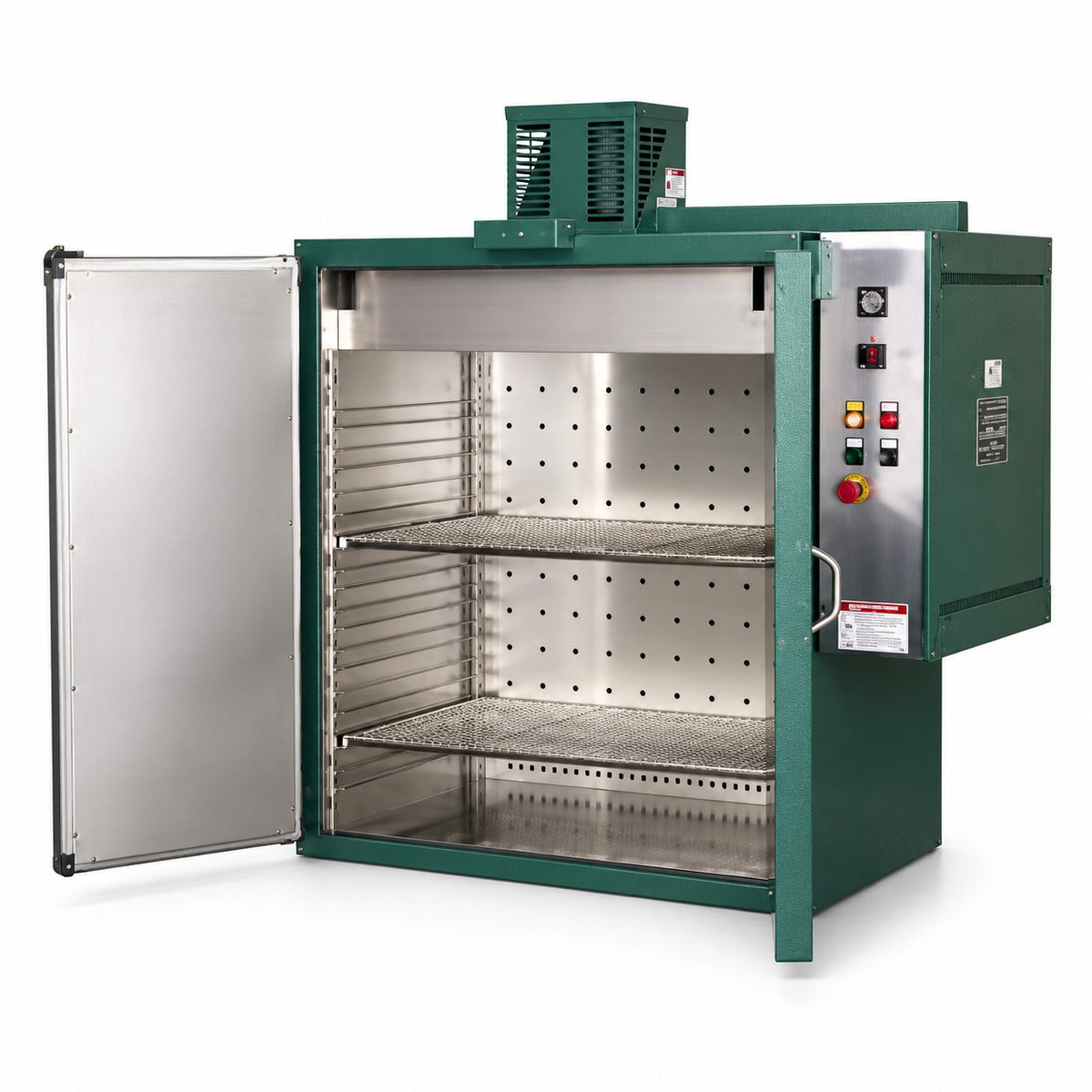

Grieve Model 323 Bench Oven

The Grieve Model 323 is a 15.8 cu. ft. forced-convection oven designed to provide substantial laboratory drying and conditioning capacity while maintaining a relatively narrow footprint. Its 36" wide x 21" deep x 36" high workspace, stainless-steel interior, and 400 CFM recirculating blower make it well suited for construction materials laboratories that need industrial-duty oven capacity but have limited floor or doorway space.

Key Features

• Maximum operating temperature: 400°F / 204°C
• 15.8 cu. ft. workspace
• Forced convection

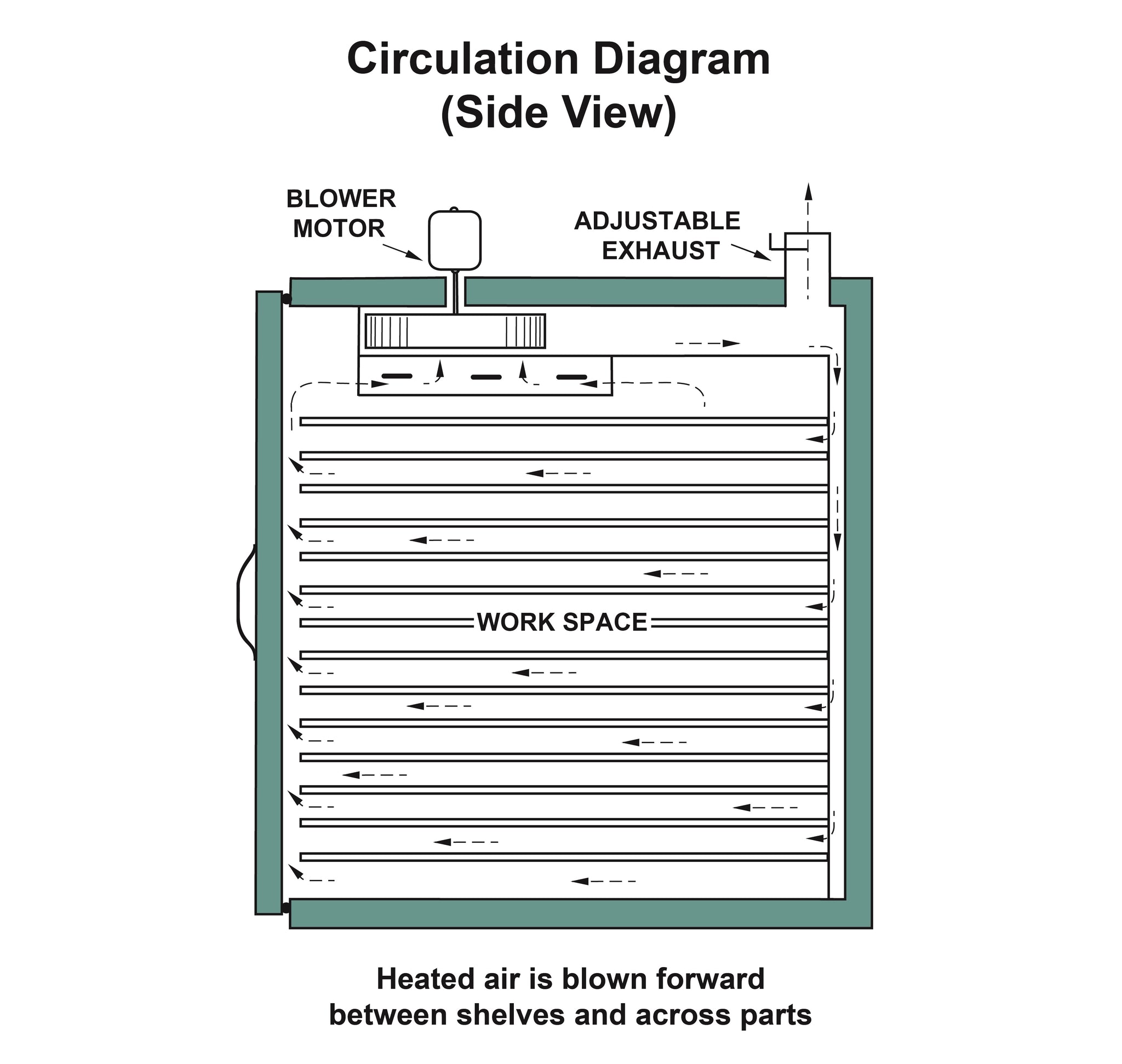

• Front-to-back airflow
• 400 CFM blower
• 1/3 hp blower motor
• 304 stainless-steel interior
• 2" insulation
• ±0.5% control accuracy
• ±8°F temperature uniformity
• 200lb maximum oven load
• Designed to fit through a standard 30" doorway when fully assembled

Included Items

• Grieve Model 323 oven
• Two reinforced nickel-plated wire shelves
• Shelf-support channels
• Integrated recirculating blower
• Wired control panel

Typical Applications

Aggregate drying, asphalt conditioning, moisture testing preparation, drying pans and containers, heating molds, general laboratory drying, and construction materials sample preparation.

Lab Manager's Tip

The Model 323 is particularly attractive when access is limited. Grieve specifically designed it to fit through a standard 30" doorway while still providing nearly 16 cu. ft. of chamber capacity.
