Tack Coat Bond Strength Shear Test Fixture, 6"

Tack Coat Bond Strength Shear Test Fixture, 6"

Item #:P-AFPBH6STM

$ 4,183.33
$ 0.00 $ 4,183.33
Sale Sold out
Shop all Asphalt Testing View full details

Additional Information

Product Description

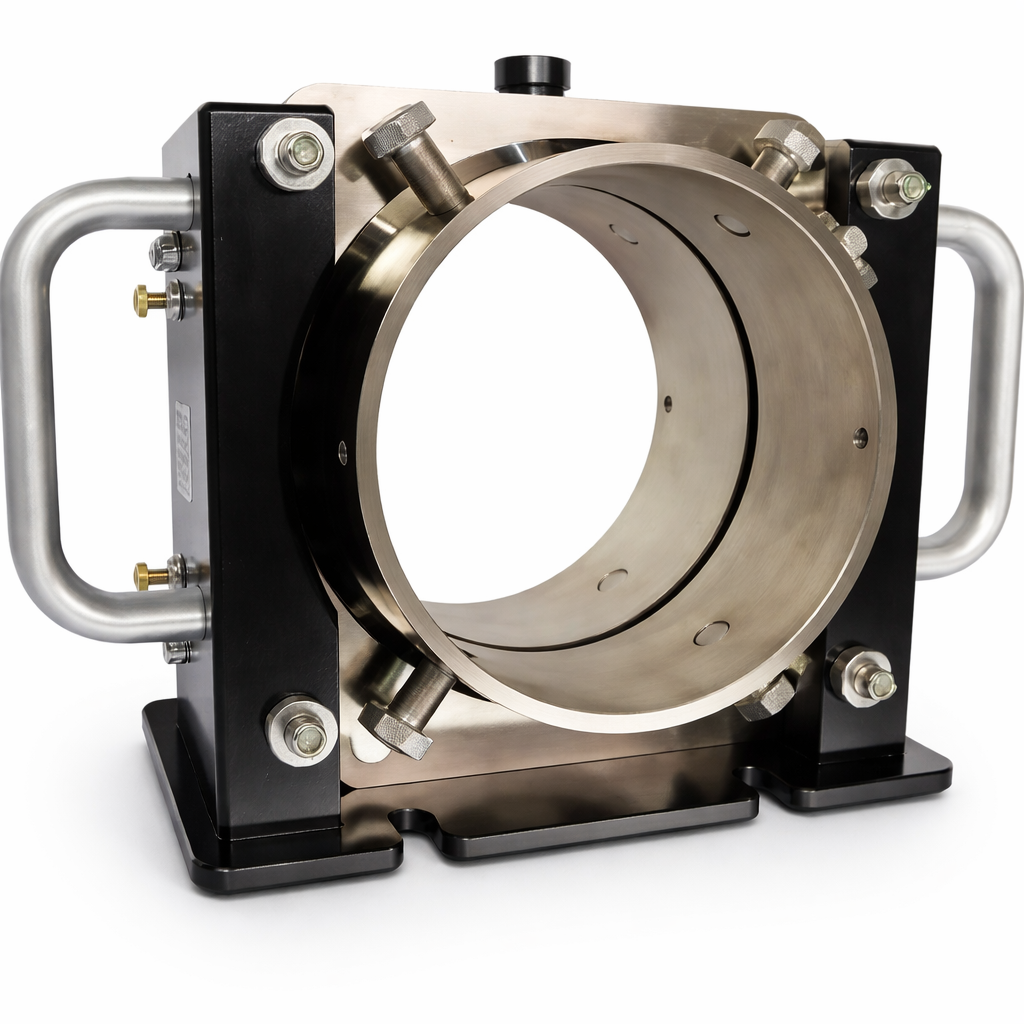

The Pine Tack Coat Bond Strength Shear Test Fixture evaluates interlayer shear resistance between asphalt pavement lifts. Designed for use with compatible Pine test presses, the fixture helps laboratories assess tack coat bonding in cores and prepared asphalt specimens.

Key Features

  • Supports Tex-249-F with the required 5.5"–6" specimen kit
  • Basic fixture accepts nominal 6" specimens
  • Compatible most standard asphalt loading frames
  • Adjustable shear gap; factory setting 1/4"
  • Optional sleeves support 2", 3" and 4" specimens
  • Optional normal-force kit applies approximately 0–100lb
  • Suitable for roadway cores and compacted asphalt specimens

Lab Manager's Tip

For Tex-249-F testing, order the appropriate 5.5"–6" alignment kit and verify the required press configuration. Smaller specimen sizes need separate sleeves and shim kits.

Typical Applications

Tack coat evaluation, pavement interlayer shear testing, asphalt bond research and DOT pavement QC.

Specifications

Standard fixture bore: 6"
Factory shear gap: 1/4"
Adjustable shear gap: 1/32"–3/4"
Fixture travel: 0.875"
Approximate fixture weight: 24.5lb. Width including handles: 13.1"; height: 9.25"; depth without normal-force kit: 6.6".
