Cable Kit for Rainhart Soil Compactor

The Replacement Cable Kit (662CK) provides a convenient maintenance solution for Rainhart Automatic Proctor Soil Compactors. This kit includes three replacement cables and three cable clamps, allowing laboratories to replace worn or damaged components in the compactor's mechanical operating system.

Designed to simplify routine equipment maintenance, the kit combines commonly serviced cable components into one convenient package. Replacing worn cables and clamps helps maintain dependable compactor operation, reduce unexpected downtime, and extend the service life of existing laboratory equipment.

Included Items

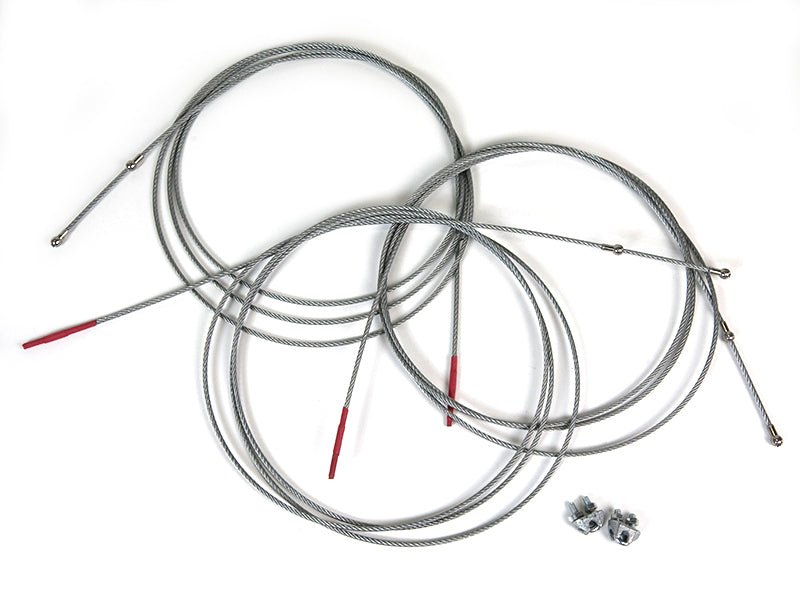

The Replacement Cable Kit includes three Rainhart Soil Compactor Replacement Cables (662-75) and three Cable Clamps (CBL1001). All six components are supplied together as one maintenance kit under HMA Part Number 662CK.

Lab Manager's Tip

Inspect the compactor cables regularly for fraying, broken strands, kinks, corrosion, or excessive wear. Check the cable clamps for looseness, deformation, or damage that could interfere with secure cable attachment.

When replacing a cable, inspect the associated clamps and attachment points to ensure proper engagement and alignment. Replace damaged components before returning the compactor to service.

For laboratories performing ASTM D698, ASTM D1557, AASHTO T 99, or AASHTO T 180 testing, verify the complete hammer mass, specified drop height, and proper compactor operation following maintenance to ensure continued compliance with applicable testing requirements.
