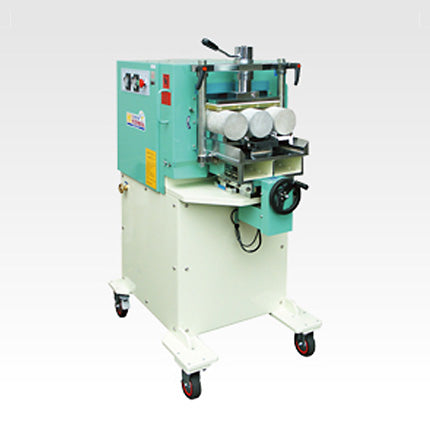

Concrete Cylinder Grinder

• Grinding ensures planeness and parallel finishing as fine as 0.002 inches (0.05 mm)
• High strength concrete specimens are finished to ASTM standards
• No more dangerous capping compound
• This is the ultimate example of the specimen end grinding machine
• This machine grinds three specimen end surfaces at one time automatically
• It is a successful and reliable machine to reduce manpower, work time, and space to 1/3

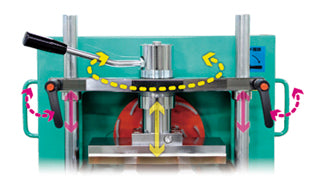

• Lever operation that provides easy specimen setting

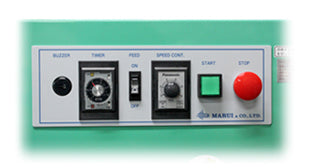

• The operation panel on the side surface has simple allocation of buttons and provides easy operation to anyone

• It is also equipped with specimen feeding speed adjustment function and timer function

• Save time
  Test specimens typically require less than 60 seconds to finish.  Continuous operator supervision is not required
• Save materials
  No capping material is required to finish the specimen end. Grinding disks typically finish 3,000 - 5,000 pieces before a replacement is necessary
• Portability and size
  Because of its small footprint, space is kept to a minimum. The end grinder is conveniently mounted on lockable castors providing easy mobility
• CT-7000

Standards	ANSI/ASTM C39
Applicable specimens	･φ 100 × H 200 mm x 3 ･φ 125 × H 250 mm x 2, φ 150 × H 300 mm x 2
Grinding revolution speed	1900r/min (60 Hz)
Grinding method	Diamond wheel grinding with water
Grinding structure	Electric pendulum sectorial movement right angle grinding
Grinding feeding	Automatic feeding, automatic stop by timer
Power supply	110 Volts, 60Hz, single phase
Accessories	Safety cover
