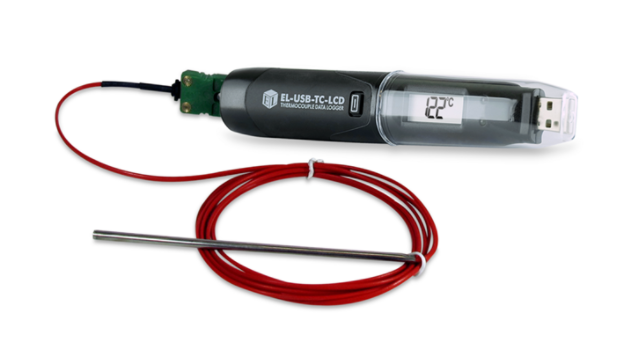

Data Logger, Stand-Alone with High Contrast LCD Display, USB

Lascar Electronics Inc

$ 102.00
Item #: TM-6150

Stand Alone Data Logger

  • This stand-alone data logger measures and stores over 32,000 temperature readings from a K, J, or T type thermocouple.

  • A thermocouple is attached via the thermocouple socket at the base of the unit.

  • The user can easily set up the logger and view downloaded data by plugging the module into a PC's USB port and using the supplied software.

  • Data can then be graphed, printed and exported to other applications.

  • The high contrast LCD can show several different temperature variables.The user can cycle between these using the push button.

  • The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.

  • Features : -200 to +1300°C (-328 to +2372°F)

  • Measurement Range (K-type), -100 to +900°C (-148 to +1652°F)

  • Measurement Range (J-type), 200 to +400°C (-328 to 752°F)

  • High contrast LCD, with 4-digit temperature display

  • USB Interface for Set-up and Data Download, 2 User-Programmable Alarm Thresholds, Bright Red and Green LED Indication

  • Immediate, delayed, and push-to-start logging

  • Supplied with basic K-type thermocouple rated from 0 to 300°C (32 to 446°F

  • Supplied complete with replaceable internal lithium battery.

  • TM-6150
