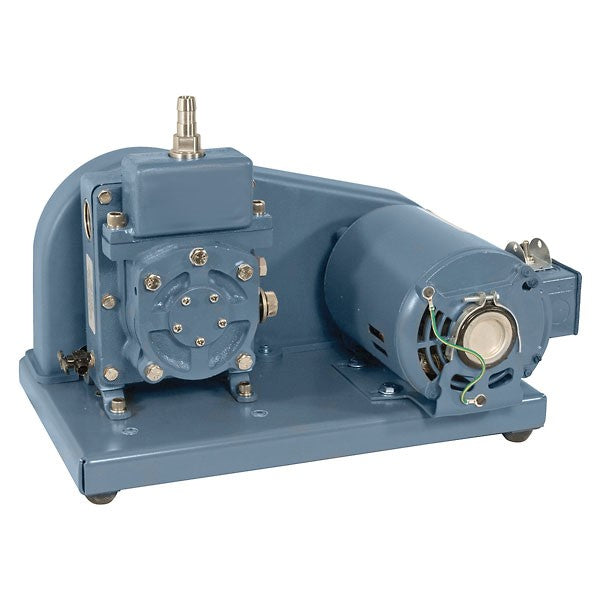

Welch DuoSeal High-Vacuum Pump - 115v

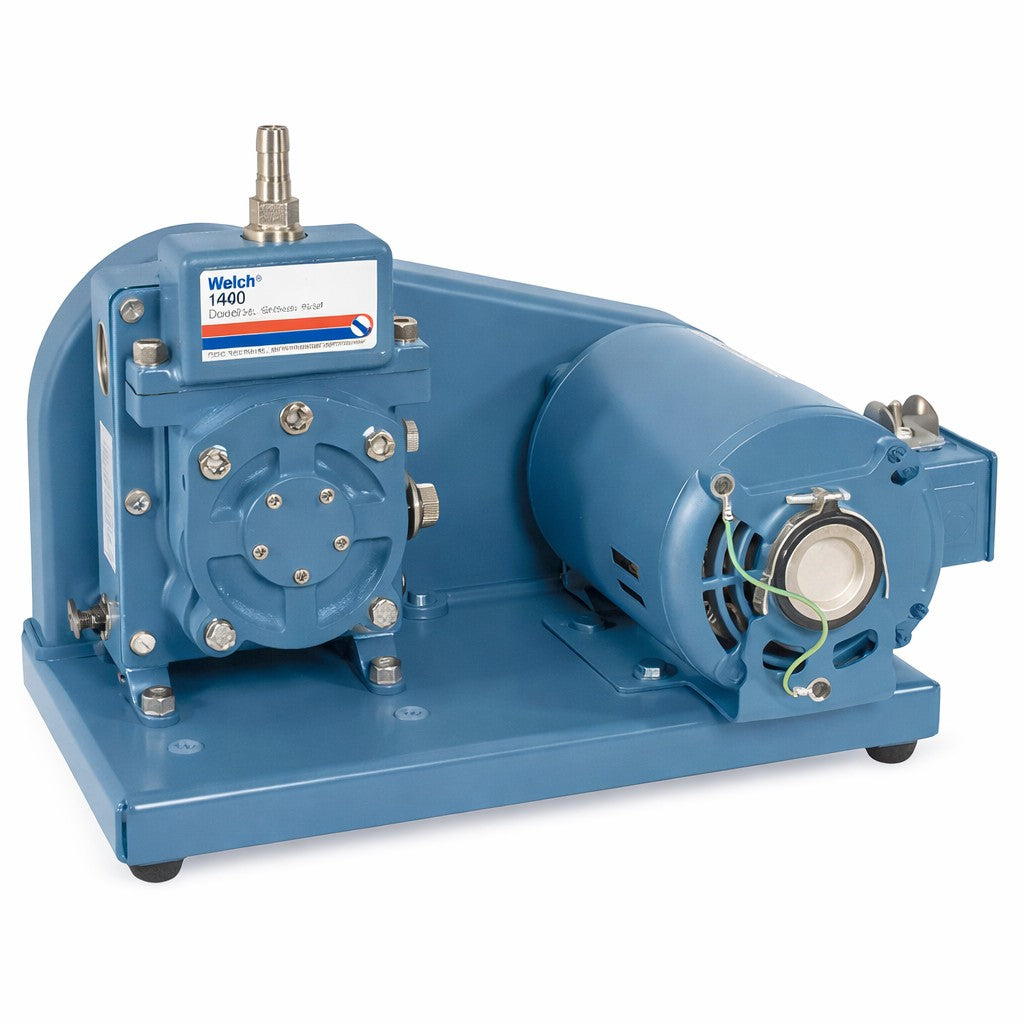

The Welch DuoSeal 1400-series oil-sealed rotary vane vacuum pump provides high vacuum for laboratory vacuum systems. Its belt-driven, low-speed design and generous oil reservoir support durable operation where stable vacuum performance is important.

Key Features

• Welch 1400-series DuoSeal design
• 0.9CFM (approximately 25L/min) free-air displacement
• Ultimate pressure rated at 0.0001Torr
• 115V, 60Hz electrical configuration
• Low-speed pulley drive reduces operating temperature and wear
• Large oil reservoir helps tolerate contamination
• Requires 7/16-inch ID vacuum tubing
• Oil-mist exhaust filtration available separately
• Use compatible vacuum pump oil; HMA lists VA-1310 as a related oil

Lab Manager's Tip

Use suitable vacuum tubing, maintain the oil level and consider an exhaust-mist filter for indoor operation. For AASHTO T 209/ASTM D2041 theoretical maximum specific gravity testing, the assembled vacuum system must achieve and hold the method's specified absolute pressure; the pump's ultimate rating alone does not establish system compliance.

Typical Applications

Laboratory vacuum systems, asphalt Rice testing where suitably configured, vacuum manifolds, vacuum ovens, vacuum distillation and materials research.
