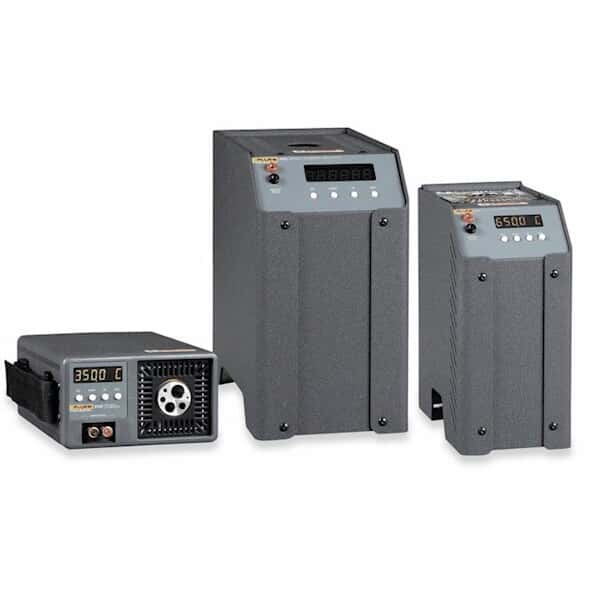

Fluke Calibration 9140-A Metrology Dry-Well Calibrator

The Fluke Calibration 9140-A Metrology Dry-Well Calibrator provides a portable, temperature-controlled reference environment for checking thermometers, probes, and thermal switches. Its removable insert options allow laboratories to accommodate different probe diameters without using a liquid bath.

Key Features

• Temperature range of 95°F to 662°F, as listed in the HMA catalog
• Published accuracy of ±0.5°C
• Adjustable heating and cooling rates from the front panel
• Supports thermal-switch actuation checks
• Removable inserts accommodate multiple probe diameters
• Insert A: Individual wells for a range of probe sizes
• Insert B: Two wells each for 3/8", 1/4", and 3/16" probes
• Insert C: Six 1/4" wells
• RS-232 interface and Windows software listed in HMA product information
• Portable construction weighing less than 8lb

Lab Manager's Tip

Before ordering, verify which insert is included or must be selected. For accredited calibration work, the dry well alone does not establish traceability; follow your documented procedure and use an appropriately calibrated reference thermometer when required.

Typical Applications

Thermometer verification, temperature-probe comparison, thermal-switch checks, laboratory instrument maintenance, and field calibration support.
