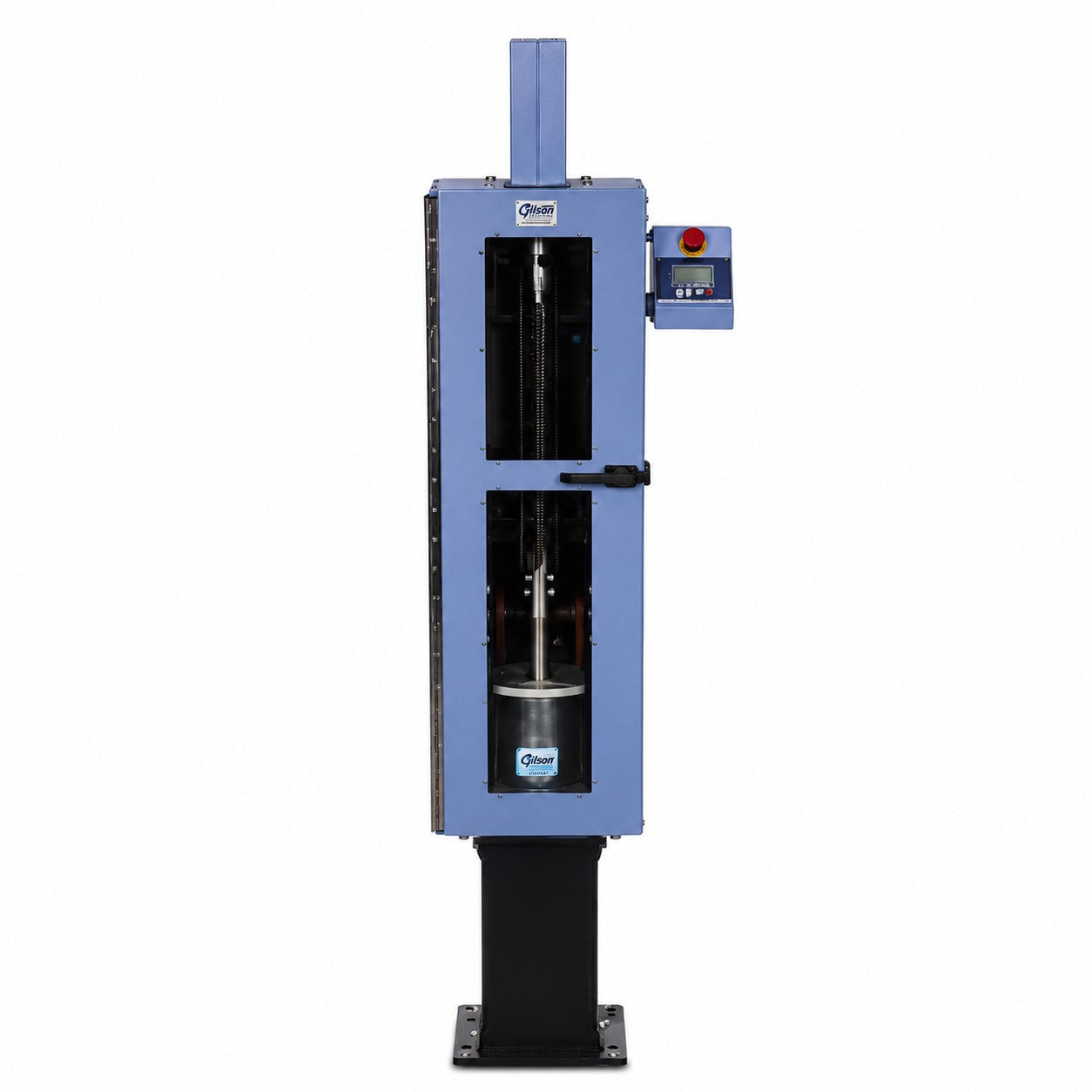

Gilson Mechanical Marshall Compactor, Rotating Base

Gilson Mechanical Marshall Compactors with rotating bases provide automatic hammer operation and mold rotation for consistent preparation of hot-mix asphalt specimens. Available for both 4" and 6" Marshall specimens, these heavy-duty compactors operate at 64 blows per minute and incorporate programmable controls and enhanced safety features for routine asphalt mix-design and QC testing.

Key Features

• Meets ASTM D5581, ASTM D6926, ASTM D6927, AASHTO R 68, and PTM 705
• Available for 4" / 101.6mm or 6" / 152.4mm Marshall specimens
• Rotating mold base provides kneading action during compaction
• Operates at 64 blows per minute
• Programmable electronic controller allows 1–999 blows
• Automatically stops when the programmed blow count is reached
• Real-time display shows current blow count and BPM
• Heavy-duty 3/4hp motor
• Easy-clamp mold securing system
• Fully enclosed operating area
• Safety interlock prevents operation unless the door is closed and latched
• Emergency-stop button provides immediate shutdown
• 4" and 6" models can be converted to the alternate specimen size with an optional conversion kit

Included Items

Marshall Compactor, ASTM-compliant oak pedestal with steel plate, stainless-steel hammer assembly, rotating compaction mold assembly, and easy-clamp mold securing system.

Typical Applications

Marshall specimen preparation, asphalt mix design, Marshall stability and flow testing, density and void analysis, asphalt QC/QA, DOT testing, contractor laboratories, commercial testing laboratories, and university asphalt research.

Lab Manager's Tip

Select the compactor around the specimen size your laboratory uses most frequently. The 4" MS-54 uses a 10lb bevel-faced hammer, while the 6" MS-56 uses a 22.5lb hammer. Both can be converted to the alternate specimen size with the appropriate conversion kit, making this a good option for laboratories that occasionally need both sizes.
