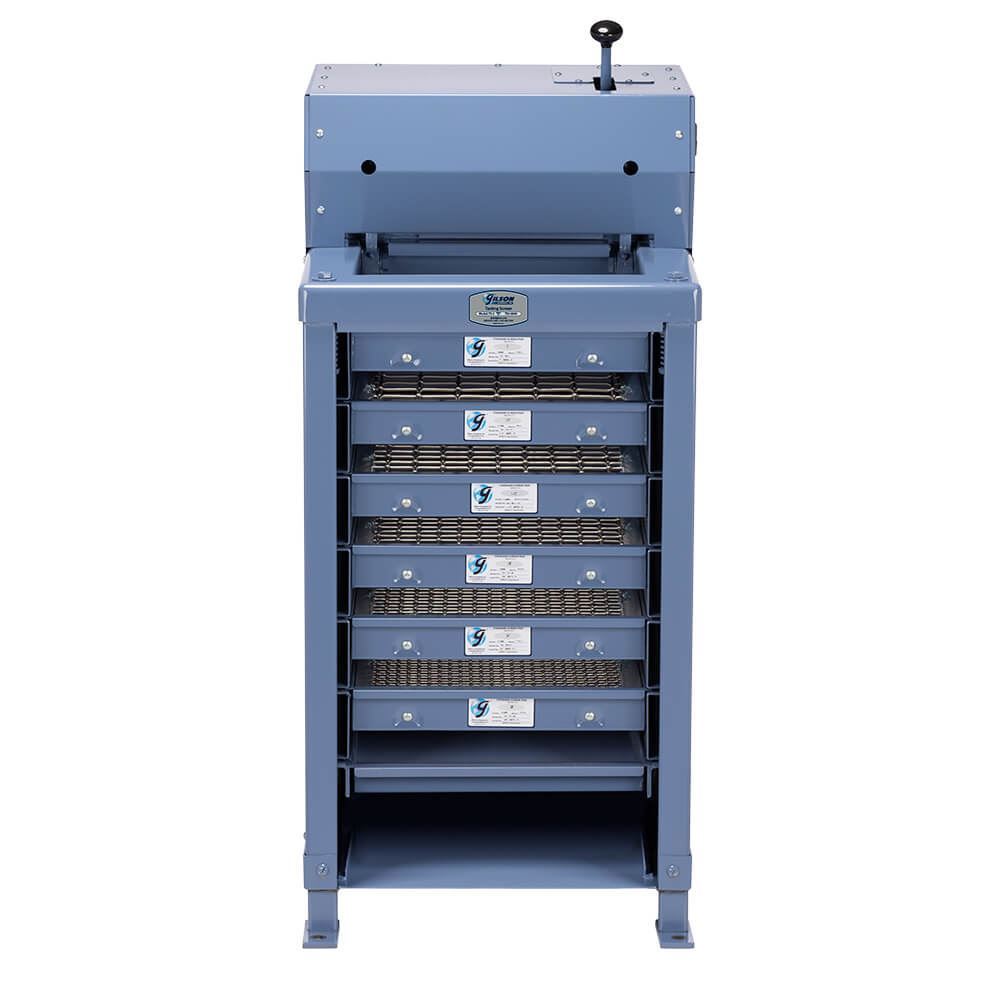

TS-3 Aggregate Screening Machine without Screens

The Gilson TS-3 Testing Screen is a heavy-duty aggregate screening machine designed for high-volume particle-size separation of coarse materials. A quick-acting hydraulic clamping system secures the trays, while the reinforced upper frame provides an additional tray position compared with standard five-tray Testing Screen configurations.

Key Features

• Designed for aggregate particle-size separation from approximately 4" through No. 4 / 101–4.75mm
• Six screen-tray capacity plus one dustpan position
• Maximum sample volume of 1 ft³ / 28.3L
• Quick-acting hydraulic clamping system
• Reinforced upper frame accommodates the additional screen tray
• Vertical vibration provides aggressive separation of coarse aggregate
• Trays are quickly secured and released using the hydraulic clamping handle
• Designed for mounting to a rigid floor
• Optional accessories are available for speed variation, reduced amplitude, dust control, and material handling

Included Items

TS-3 Testing Screen with hydraulic tray-clamping system and drive assembly. Screen trays and dustpan should be selected separately according to the sieve sizes required for the laboratory's testing program.

Typical Applications

Coarse aggregate gradation, aggregate QC/QA, asphalt aggregate testing, concrete aggregate testing, quarry and crusher quality control, DOT aggregate testing, construction-materials laboratories, and high-volume particle-size analysis.

Lab Manager's Tip

The TS-3 is a strong choice when six fractions are routinely required in one screening cycle. Before ordering trays, map the sieve series used most often in your lab and include the dustpan in the stack calculation. The machine should also be anchored to a rigid floor for proper operation.
