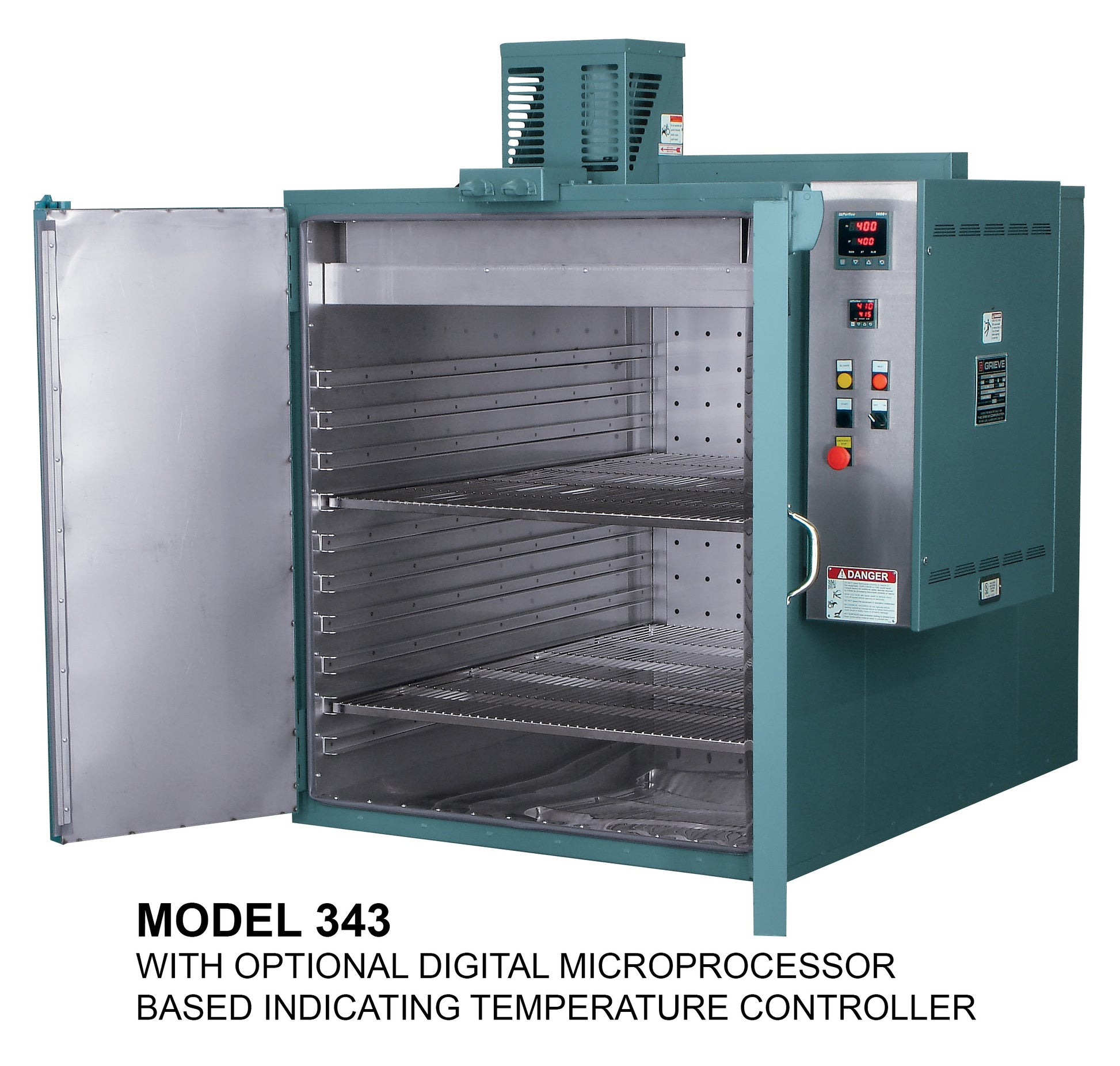

Grieve Model 343 Large Capacity Bench Oven - 36 CuFt.

The Grieve Model 343 is a large-capacity forced-convection oven providing 36 cu. ft. of workspace for laboratories that need to dry, heat, condition, or process large sample loads without moving to a full industrial floor oven. The 36" x 48" x 36" chamber provides exceptional usable depth for bulk samples and oversized laboratory items.

Key Features

• 36 cu. ft. workspace
• Maximum temperature: 400°F / 204°C

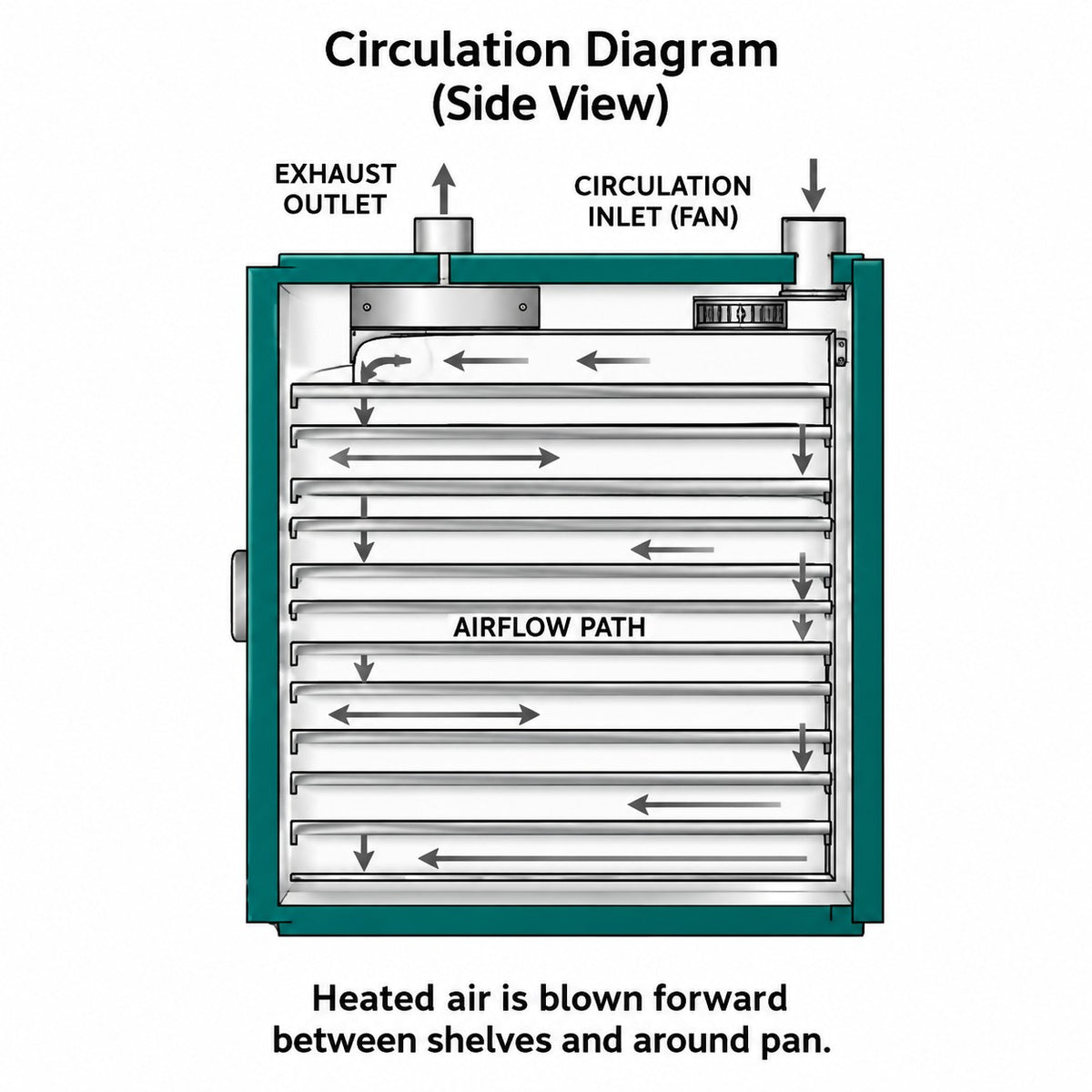

• Forced-convection air circulation
• 400 CFM recirculating blower
• 1/3 hp blower motor
• 304 stainless steel interior
• 2" wall insulation
• Two shelves included
• 50lb distributed load per shelf
• 200lb maximum oven shelf load
• 230V, 60Hz, single-phase

Typical Applications

Aggregate drying, asphalt sample conditioning, moisture removal, bulk laboratory drying, heating containers and equipment, and high-volume construction materials laboratory operations.

Lab Manager's Tip

The Model 343's biggest advantage is depth: its chamber is 48" deep. That makes it particularly useful for laboratories handling long items, large pans, or high-volume batches that don't fit comfortably in conventional bench ovens.
