Guide Rod Adjustment Plates for Rainhart Soil Compactor

The Guide Rod Adjustment Plates (662-250-44) are replacement components designed for the Rainhart Series 662 Automatic Proctor Soil Compactor. These plates are part of the compactor's guide rod assembly and provide a service solution for maintaining the equipment's mechanical guidance system.

Designed for use with the compactor's existing guide rod components, the adjustment plates help support proper mechanical alignment and dependable operation. Replacing worn or damaged plates allows laboratories to maintain their existing soil compaction equipment without replacing larger assemblies unnecessarily.

Key Features

• Identified as Part Number 662-250-44 in the manufacturer's soil compactor replacement parts documentation.
• Used within the compactor's guide rod assembly to support mechanical adjustment and alignment.
• Provides replacement components for servicing worn or damaged guide rod adjustment plates.


Included Items

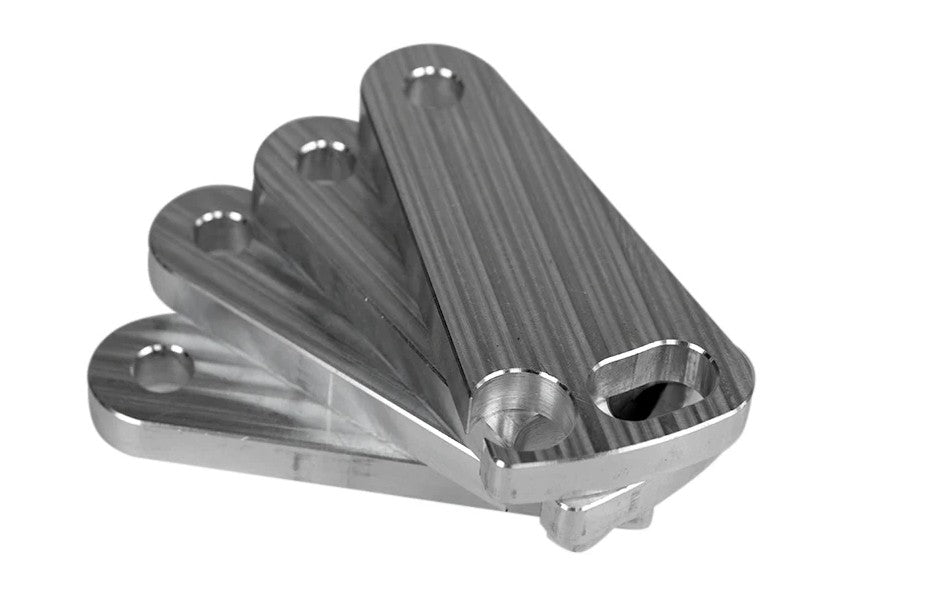

The product consists of 4 Guide Rod Adjustment Plates, Part Number 662-250-44, for the Rainhart Automatic Proctor Soil Compactor.

Lab Manager's Tip

Inspect the guide rod adjustment plates periodically for wear, deformation, loose hardware, or signs of improper alignment. The guide rod system should operate smoothly without excessive binding or unwanted movement during compaction cycles.

When servicing the adjustment plates, inspect the associated Guide Rods (662-250-43), Guide Rod Assemblies (662-250-40), and Eccentrics (662-250-42) for wear or damage. These components work together within the compactor's guidance mechanism.

• Rainhart_Soil_Compactor_662EP_Parts_Diagram.pdf
