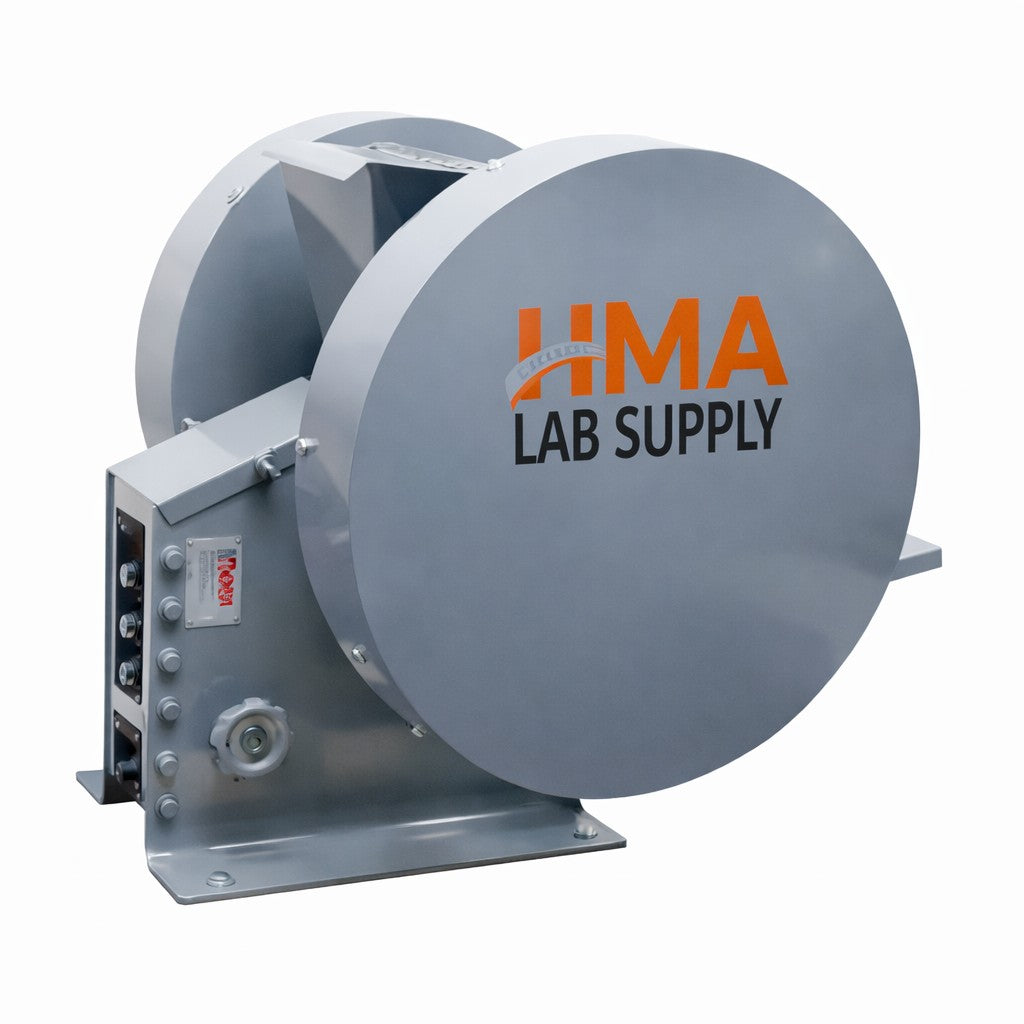

Heavy-Duty Chipmunk Jaw Crusher

The Heavy-Duty Chipmunk Jaw Crusher is designed for high-volume reduction of hard rock, ores, minerals, and aggregate samples before laboratory testing. With throughput up to 800lb per hour, heavy alloy-steel jaws, and multiple electrical configurations, it provides significantly greater production capacity than smaller laboratory crushers while retaining the adjustable particle-size control needed for sample preparation.

Key Features

• Maximum feed size approximately 2.4" x 4"
• Throughput up to 800lb / 363 kg per hour
• Adjustable final particle size from approximately 1/16" to 5/8"
• 9" x 4" steel-alloy jaws
• Heavy-duty construction for rock and mineral sample preparation
• Grease cups simplify bearing lubrication
• Bearings are designed for easier replacement
• Single- and three-phase electrical configurations available
• Includes sample pan, feed hopper, belt guards, flywheel, and motor starter switch

Included Items:

• Heavy-Duty Chipmunk Jaw Crusher
• Electric Motor Starter Switch (must be installed on-site)
• Sample Pan
• Feed Hopper
• Belt Guards
• Flywheel

Typical Applications

Aggregate laboratories, mining and mineral laboratories, geotechnical testing, quarry QC, DOT laboratories, universities, and high-volume sample-preparation operations.

Lab Manager's Tip

This is the better Chipmunk choice when throughput is the priority. The Heavy-Duty model is rated up to 800lb/hr. versus approximately 400lb/hr. for the standard Chipmunk series, making it much better suited to laboratories processing large quantities of rock or aggregate.
