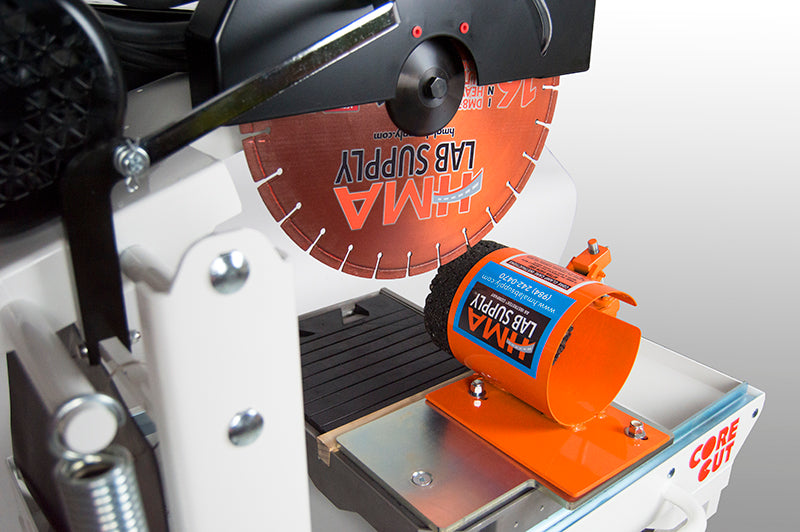

HMA's 16" Blade CoreSaw Package

The HMA 16" CoreSaw Package is designed to make a single full-depth cut through a 6" asphalt or concrete core, simplifying specimen preparation for laboratory testing. Configurations include asphalt or concrete blades and optional folding stand components.

Key Features

• 16" blade allows a single-pass cut through a 6" core
• 2.5hp motor with selectable 115V or 230V operation
• 21A at 115V or 10.5A at 230V

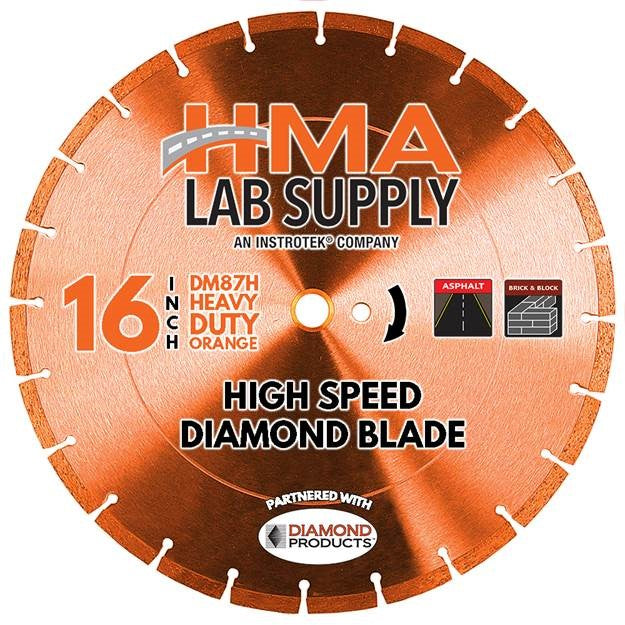

• Select asphalt or concrete blade by configuration

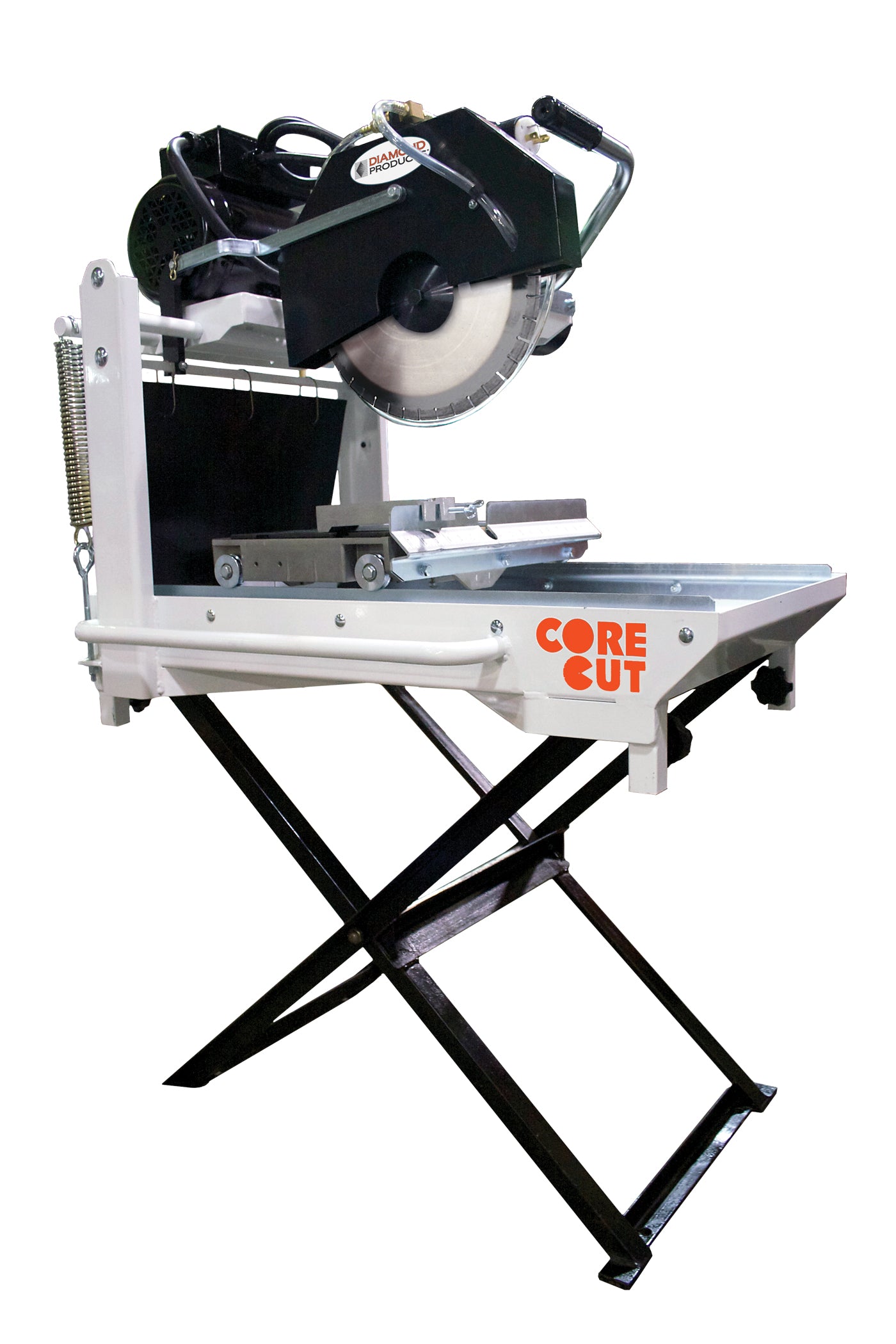

• Rolling cart and 6" core clamp supplied with applicable package variants
• Coolant circulation pump and face shield listed with package
• 4" core clamp sold separately

Included Items

The selected package may include a rolling cart, 6" core clamp, four legs, coolant pump, face shield, and material-specific blade; confirm contents for the selected variant.

Lab Manager's Tip

Confirm the selected SKU includes the stand and accessories your laboratory needs. Check electrical circuit capacity and coolant supply before installation.

Typical Applications

Asphalt and concrete core trimming, specimen preparation, pavement core sectioning and materials-testing laboratories.
