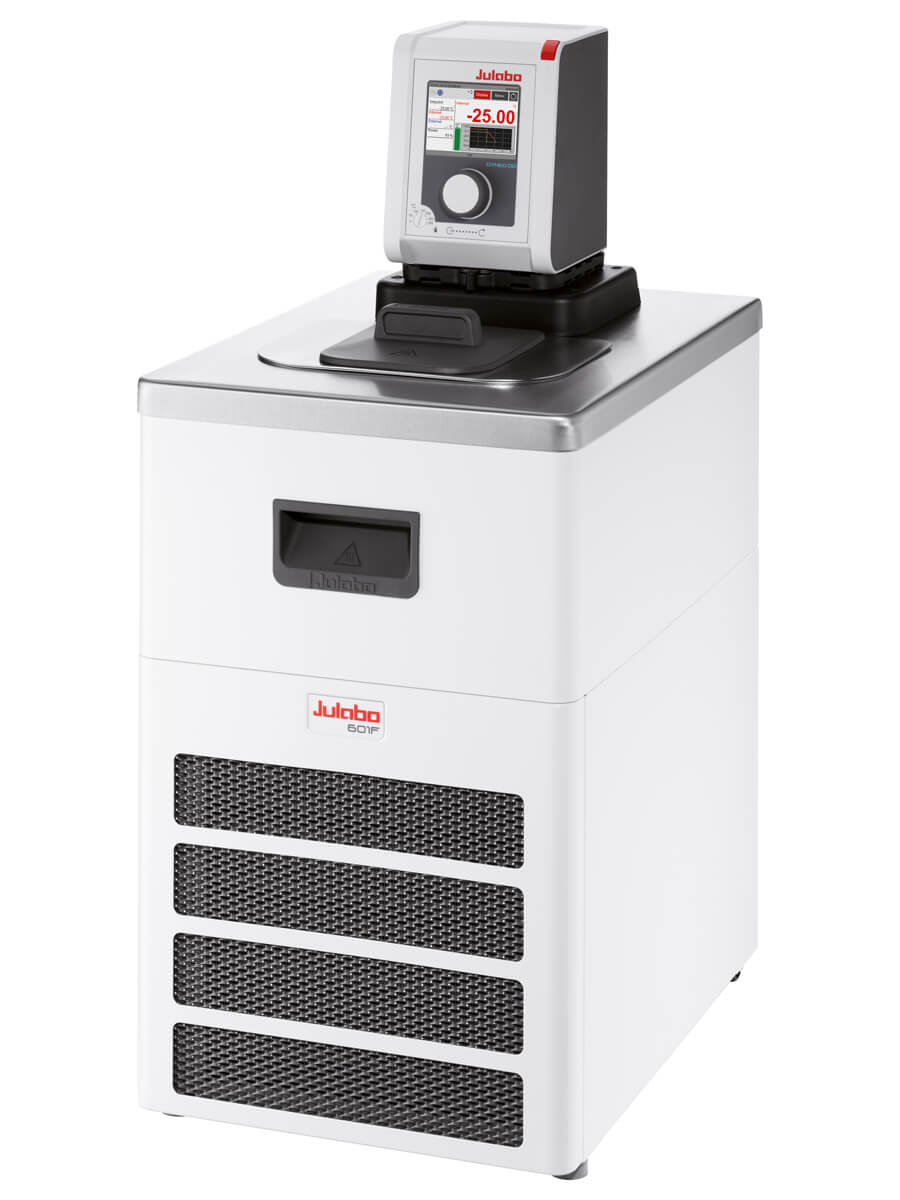

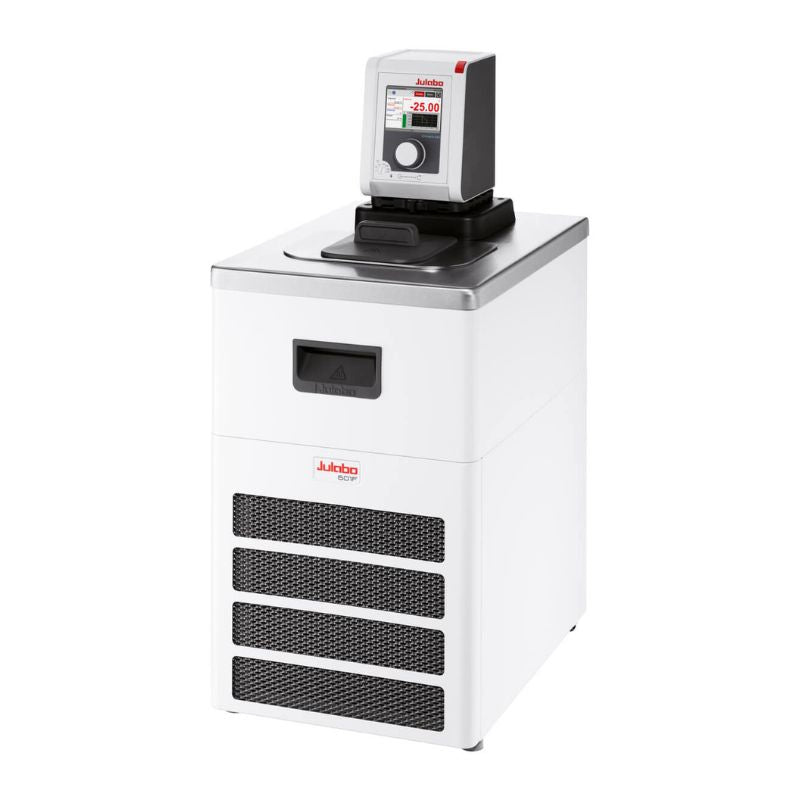

Julabo DYNEO™ Refrigerated Circulator Bath 115v / 60Hz

HMA Lab Supply

$ 8,879.99
Item #: WB-3600

USA and Canada Prices Only. Click here for International Quotes

DYNEO™ refrigerated/heating circulator is suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low temperature capabilities from -20 °C to -50 °C with an upper temperature limit of 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A color TFT display with central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB connection for external PC control and data-logging with digital options including RS232 port or an analog module interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tanks with integrated drain port.
Class III (FL) according to DIN 12876-1.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

Ideal for BBR setup!

Part # WB-3600

Your Advantages:

• USB connection

• Removable ventilation grid

• Space-saving cooling coil design provides more usable space in the bath tank

• For internal and external applications

• Powerful and infinitely adjustable pressure pump

• Flow rate 27 l/min, pressure 0.7 bar

• Easy switching between internal and external circulation

• Large color TFT display, multilingual interface

• Central rotary knob (controller) simplifies operation

• Integrated programmer

• Integrated external Pt100 connection

• RS232 interface or analog interfaces (optional)

• Powerful cooling machines

• Optimized cooling coil design saves space in the bath tank

• Bath cover included with delivery

• Integrated drain makes emptying liquid easy and safe.



Bath tank: Stainless steel

Bath cover: integrated

Usable bath opening in.: (W x L / D) 8.7 x 5.9 / 7.9

Weight lbs: 84.2

Barbed fittings inner diameter: 8/12 mm

Dimensions in. (W × L × H): 14.2 x 18.1 x 29.1



115V/60Hz (Nema N5-15 Plug)

115V/60Hz Heating capacity kW 1

Cooling capacity (Ethanol) °C/kW: 200/0.6, 20/0.6, 0/0.44, -10/0.27 -20/0.16, -30/0.04

Viscosity max. cST: 50

Refrigerant: R449A

Filling volume g: 150

Global Warming Potential for R449A: 1397

Carbon dioxide equivalent t: 0.21

Pump capacity flow rate l/min: 8 ... 27

Pump capacity flow pressure psi: 1.5 ... 10.2
