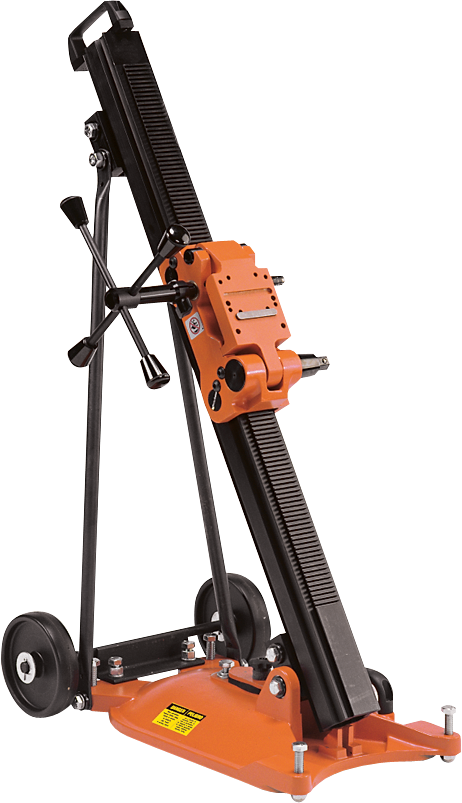

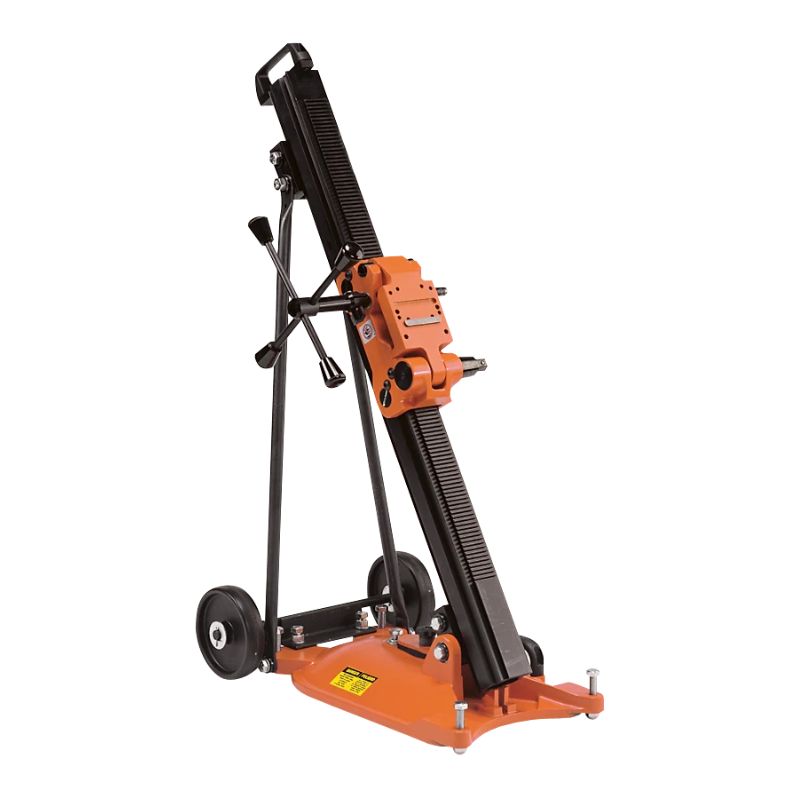

M-5 Combo Drill Stand Only

M-5 Combo Drill Stand Only

SKU: Item #:CE-5030

Regular price $ 2,284.00
Regular price $ 0.00 Sale price $ 2,284.00
Sale Sold out
Quantity
Shop all Core Removal View full details

Additional Information

Product Description

The M-5 Combo drill stand provides a sturdy mounting platform for compatible core-drill motors used in concrete and asphalt sampling. A 40-inch mast and angle-adjustable frame support a range of drilling positions, while the quick-disconnect motor mount can make equipment changes more convenient. The sliding four-spoke feed handle can be positioned for right- or left-hand operation, and a positive carriage lock helps secure the drilling assembly when repositioning. This stand-only configuration is useful for laboratories and field crews that already own a compatible drill motor and want a more versatile coring support system.

Key Features

  • Supports collection of pavement cores for workflows such as ASTM D5361/D5361M when paired with suitable drilling equipment and the required sampling procedure.
  • Accommodates compatible electric or hydraulic drill motors, giving crews flexibility to use existing equipment rather than commit to a single motor type.
  • Provides a quick-disconnect motor mount that can simplify installation, removal and equipment changes.
  • Allows angled drilling up to 45 degrees for field situations where vertical access is limited.
  • Uses double-column support and adjustable side bearings to help maintain a stable drilling setup.
  • Offers a four-spoke sliding feed handle that can be used on either side and a positive carriage lock for more convenient setup and control.

Included Items

M-5 Combo drill stand with quick-disconnect motor mount and four-spoke sliding handle. Drill motor, core bit and other drilling accessories are not included.

Lab Manager's Tip

Check motor mount compatibility, anchoring, water supply and stand stability before drilling; the stand itself has no electrical requirement, but the selected motor does. For ASTM D5361/D5361M pavement core sampling, follow the required location, orientation, diameter and sample-identification practices to preserve representative specimens.

Typical Applications

Concrete core drilling, asphalt pavement coring, field sampling, drill-motor mounting and pavement evaluation.

Specifications

Configuration: Drill stand only
Mast: 40in
Angle adjustment: Up to 45°
Motor mount: Quick disconnect
Feed handle: Four-spoke, reversible side
Carriage: Positive lock
Support: Double-column frame
Side bearings: Adjustable
Motor compatibility: Selected Milwaukee, Core Bore and WEKA motors with proper mounting hardware
