M-5 Heavy Duty Core Rig - Choose Drill/Vacuum Pump Options

M-5 Heavy Duty Core Rig - Choose Drill/Vacuum Pump Options

SKU: Item #:CE-5062

Regular price $ 4,823.11
Regular price $ 0.00 Sale price $ 4,823.11
Sale Sold out
Vacuum Pump
Motor
Quantity
Shop all Core Rigs View full details

Additional Information

Product Description

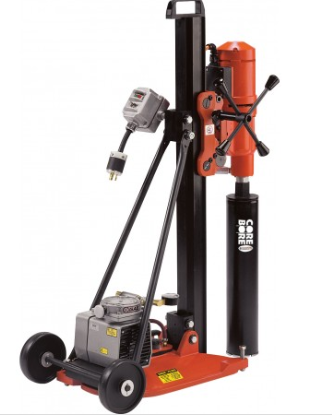

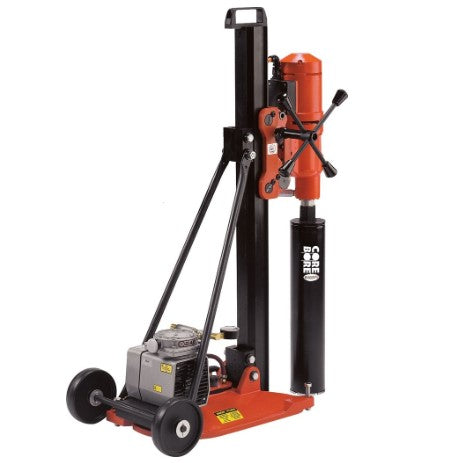

The M-5 Heavy-Duty Core Rig provides a stable drilling platform for extracting cylindrical concrete and asphalt pavement cores. Its quick-disconnect motor mounting system, adjustable carriage, and heavy-duty combination stand make it suitable for field crews performing routine pavement and structural concrete coring. Multiple motor and vacuum-pump configurations allow users to select a setup that matches their drilling requirements.

Key Features

  • Heavy-duty M-5 coring platform
  • Quick-disconnect motor mounting
  • Available with CB733 or CB744 drilling motor
  • Four-spoke sliding operating handle
  • Handle can be installed on either side
  • Positive carriage lock
  • 40" mast
  • Combination stand for anchor or vacuum mounting
  • Adjustable angle stand for drilling up to 45°
  • Double-column support improves rigidity
  • Adjustable carriage side bearings
  • Available with or without vacuum pump
  • Core bits and drill-rod extensions sold separately

Lab Manager's Tip

Match the motor to the largest core diameter your crew expects to drill routinely. The CB744 offers greater stated bit capacity than the CB733. Also consider whether the jobsite allows mechanical anchoring or requires vacuum mounting, since the optional vacuum pump can be important for some applications.

Typical Applications

Asphalt pavement coring, concrete pavement coring, bridge-deck sampling, roadway construction inspection, pavement thickness verification, laboratory core collection, DOT field testing, and construction-materials sampling.

Specifications

Mast height: 40"
Standard bit capacity: 12"
Maximum drilling angle: 45°
CB733 motor: 115V, 20A; 345 / 630 / 1,000 RPM; maximum stated bit capacity 16"
CB744 motor: 115V, 25A; 225 / 300 / 565 / 780 RPM; maximum stated bit capacity 18"
Mounting: Combination anchor/vacuum stand
Vacuum pump: Optional
Core bit: Not included
