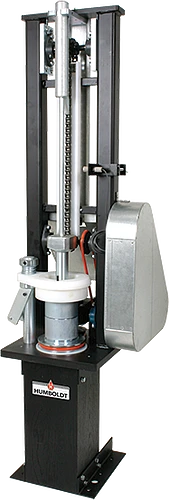

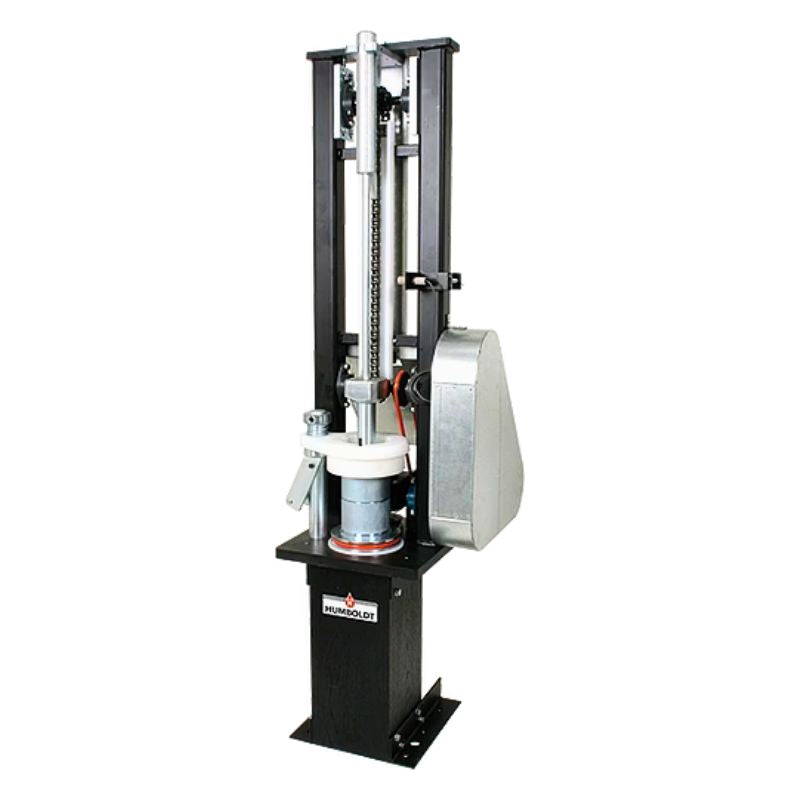

Marshall Compactor - Automatic, Rotating Mold 4" or 6"

The Heavy-Duty Automatic Marshall Compactor provides a rigid, repeatable method for preparing 4" or 6" asphalt specimens for Marshall testing. The rotating-mold design works with a tapered-foot hammer to produce a kneading action during compaction, while the automatic counter allows the technician to preset the required number of blows and automatically stops the machine when the cycle is complete.

Key Features

• Supports ASTM D6926, ASTM D5581, AASHTO T 245, and PTM 705 applications
• Available for 4" or 6" diameter Marshall specimens
• Rotating mold combined with tapered-foot hammer produces kneading action
• Heavy-duty frame withstands repetitive compaction loads
• Automatic counter allows presetting the required number of blows
• Automatically stops when the programmed compaction cycle is complete
• LED readout displays blow count
• Cam-action mold holder simplifies insertion and removal of the compaction mold
• 4" and 6" configurations can be converted by changing the hammer and mold
• Multiple voltage/frequency configurations available

Included Items

Mechanical Marshall compactor, ASTM-compliant pedestal, automatic counter, tapered-foot hammer assembly, one compaction mold, and one package of paper discs.

Typical Applications

Marshall specimen preparation, asphalt mix design, Marshall stability and flow testing, production QC/QA, DOT asphalt testing, commercial testing laboratories, contractor laboratories, and university asphalt research.

Lab Manager's Tip

Choose the specimen size based on the applicable specification and aggregate size rather than simply selecting the smaller 4" mold. If your laboratory regularly prepares both sizes, the same heavy-duty machine can be converted by changing the hammer and mold assembly, which may be more economical than maintaining two separate compactors.
