Melting Pot for Capping Compounds - Various Sizes

Ritehete

$ 1,932.00
Item #: HE-4078

USA and Canada Prices Only. Click here for International Quotes

Melting Pots

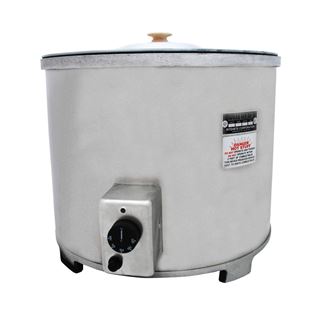

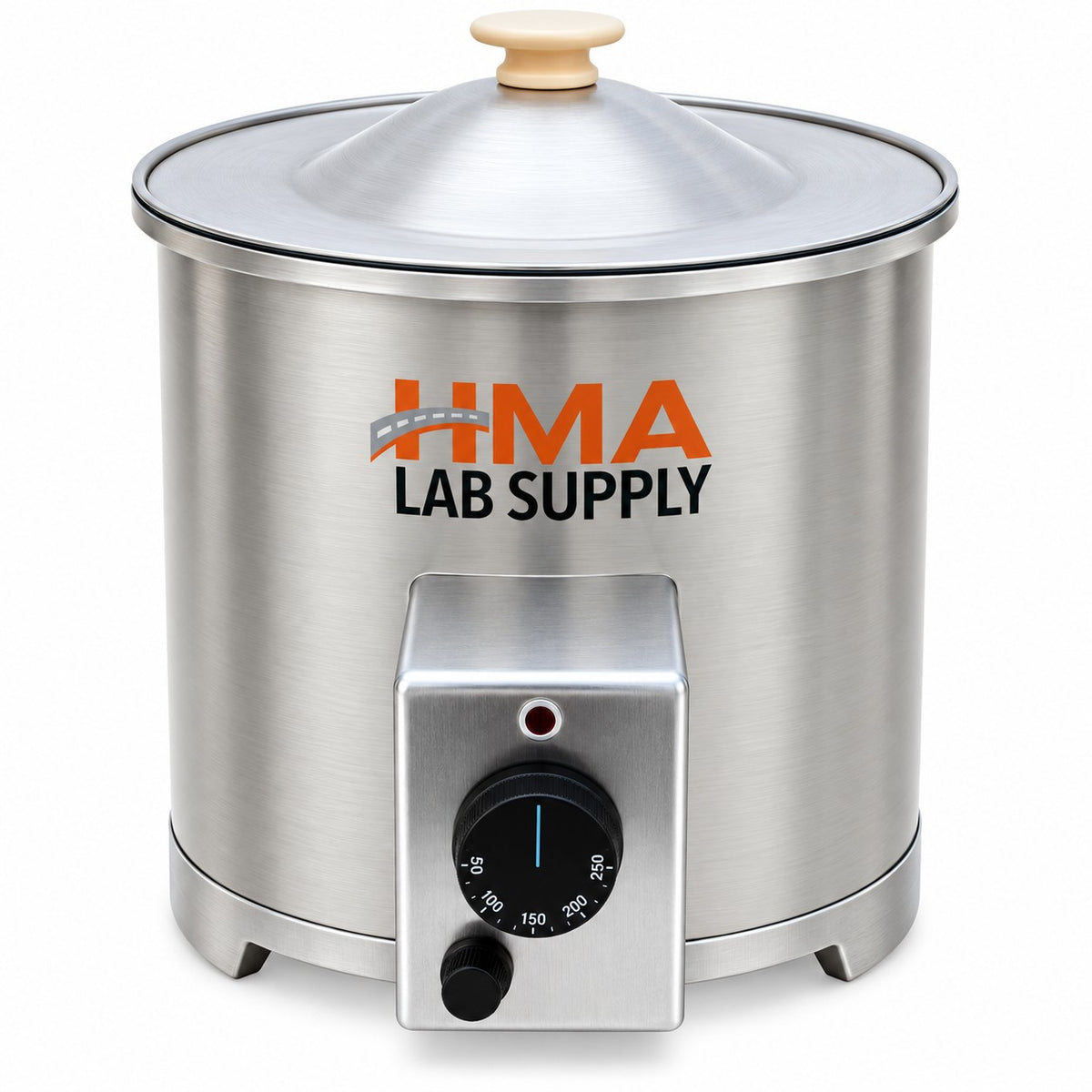

Melting Pots are ideal for preparing capping compounds, wax, tars, liquid asphalt, and other materials in the lab. Each Melting Pot has precision temperature controls that hold consistently to a set point from 100°—320°F (38°—160°C). A high limit control automatically turns pots off at 360°F (182°C). A unique, helically-wound cast aluminum liner provides even heat distribution. The stainless steel outer casing ensures long service life.

Features:

  • Precision temperature control for 100°—320°F (38°—160°C) range holds to set point
  • Limit control turns pots off at 360°F (182°C)
  • Sturdy flat lid with a non-metallic knob for easy removal.
  • Element is bonded to the Inner liner from top to bottom for even heat distribution
  • Durable stainless steel outer case assures dependable long-lasting service
  • Ideal for preparing capping compounds, wax, tars, liquid asphalt and other materials
  • 4-28qt. sizes available - Choose size from drop-down
  • 38˚-160˚C (100˚-320˚F)
  • ASTM C617, AASHTO T231
Inside Dimensions

HE-4073: 7.5 x 7in (191 x 178mm), Dia.xD

HE-4074: 10 x 6in (254 x 152mm), Dia.xD

HE-4075: 10 x 9in (254 x 229mm), Dia.xD

HE-4076: 14 x 7in (356 x 178mm), Dia.xD

HE-4077: 14 x 9in (356 x 229mm), Dia.xD

HE-4078: 14 x 11in (356 x 279mm), Dia.xD

Outside Dimensions

HE-4073: 10.8 x 10.5in (273 x 267mm), Dia.xD

HE-4074: 15.4 x 11in (391 x 279mm), Dia.xD

HE-4075: 15.4 x 13in (391 x 330mm), Dia.xD

HE-4076: 18.4 x 13.3in (467 x 337mm), Dia.xD

HE-4077: 18.4 x 15in (467 x 381mm), Dia.xD

HE-4078: 18.4 x 15.1in (467 x 384mm), Dia.xD
