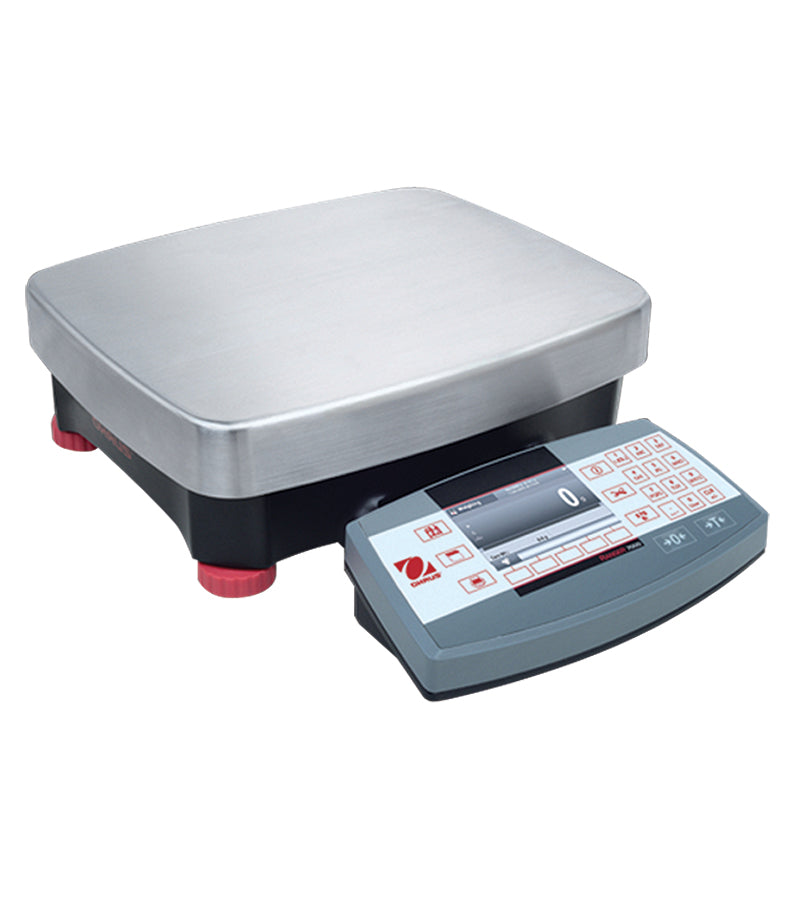

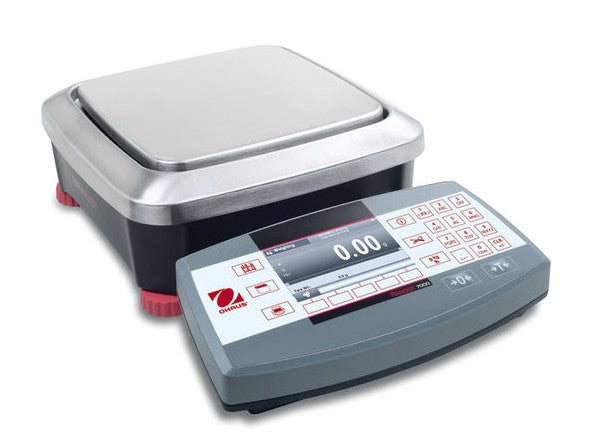

Ohaus Ranger™ 7000 Series Balances

The Ranger 7000 Series combines precision weighing with a detachable color touchscreen display for construction-materials laboratories and field operations. Four HMA configurations cover capacities from 3kg to 35kg, allowing technicians to select the readability and platform size that fit their sample preparation and weighing requirements.

Key Features

• Four capacity/readability configurations from 3kg x 0.01g to 35kg x 0.1g
• Detachable full-color 3-inch VGA touchscreen display
• Sieve-analysis software included
• Stainless-steel weighing platform with automatic tare
• Integral weigh-below hook for suspended weighing
• USB host connection; USB device included
• AC adapter operation; rechargeable battery options available
• Auto-shutoff function
• Certificate of Conformance available upon request

Lab Manager's Tip

Choose the smallest capacity that safely accommodates your heaviest routine load; the 3kg and 6kg configurations provide finer readability than the 15kg and 35kg models. Check platform dimensions before selecting pans or accessories.

Typical Applications

Aggregate sieve analysis, density-related suspended weighing, asphalt and soils sample preparation, general laboratory mass measurements, and construction-materials QC.
