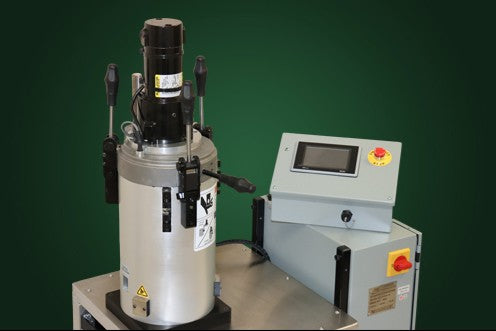

Pine GB1 Brovold Superpave Gyratory

Pine Test Equipment, Inc.’s GB1 Brovold Superpave Gyratory Compactor compacts asphalt specimens.

The System

A hydraulic system and an integrated industrial computer drive the GB1. Users define height and number of gyrations using a touchscreen control panel.  Angle of gyration and pressure are fixed.  The GB1 compacts material at a constant pressure and angle of gyration.  It gyrates at a fixed speed.  The system extrudes compacted specimens out the top of the machine.  The enclosed compaction chamber keeps the user safe.   And, two USB ports make exporting data simple.

Specimen Size

The GB1 compacts only 150-mm specimens

Compaction Modes

The GB1 Brovold Superpave Gyratory Compactors makes specimens to a specified height or number of gyrations.  Enter the desired height and set the number of gyrations to 299, the maximum allowed, to make specimens to a desired height.  Enter the desired number of gyrations and set the height to 10.0 mm, the minimum, to make specimens with a desired number of gyrations.

Portability

The GB1 weighs only 304 pounds and is self-contained.  As a result, it is ideal for on-site testing and mobile labs.  Roll it into the bed of a pickup truck.  Lift it into a van.  You can take it just about anywhere.
