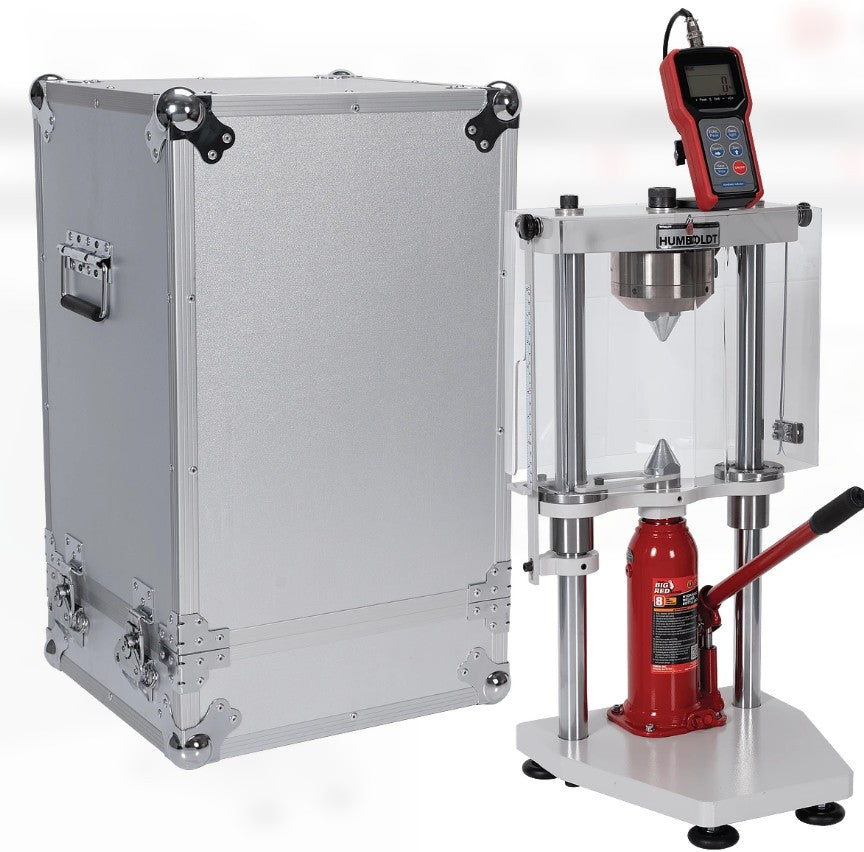

Point Load Tester

The Point Load Tester evaluates the point-load strength index of rock cores and irregular specimens in laboratory and field settings. A hydraulic ram and digital peak-load indicator support controlled loading of specimens up to 4" in diameter.

Key Features

• Supports point-load strength testing under ASTM D5731
• Hydraulic loading capacity up to 50kN
• 50kN pancake load cell and digital peak-load indicator
• Accepts core specimens up to 4" diameter
• Conical loading platens
• Inch and millimeter specimen scale
• Clear protective front and rear covers
• Portable frame for field and laboratory testing

Included Items

Hydraulic frame and ram, 50kN load cell, digital indicator, conical platens and protective covers.

Lab Manager's Tip

Record specimen dimensions and orientation for each test; point-load results depend on geometry and loading direction. Keep protective covers in place during specimen failure.

Typical Applications

Rock strength classification, geotechnical investigation, aggregate source evaluation, quarry QC and engineering research.
