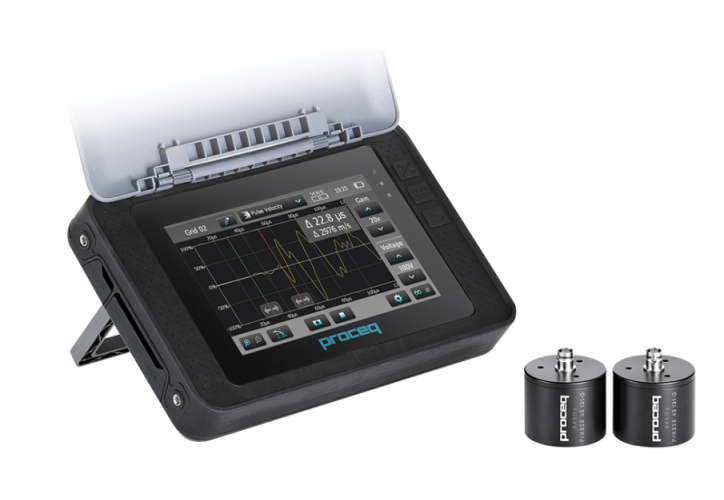

Pundit PL-200 Pulse Velocity Tester
Pundit PL-200 Pulse Velocity Tester
SKU: Item #:CT-6320
Couldn't load pickup availability
Share

Additional Information
Product Description
The Pundit PL-200 is a portable ultrasonic pulse velocity system for non-destructive evaluation of concrete and other materials. It allows technicians to evaluate concrete uniformity, measure pulse velocity, investigate cracks, and perform detailed ultrasonic measurements without damaging the structure. Its touchscreen interface and visualization tools make it particularly useful for field investigation and laboratory research.
Key Features
- Supports ASTM C597 ultrasonic pulse velocity testing
- Ultrasonic pulse velocity technology
- Measures transmission time and pulse velocity
- Concrete uniformity assessment
- Crack-depth measurement capability
- Compressive-strength estimation using an established correlation curve
- Area and line-scan functionality
- 20–500 kHz instrument bandwidth
- 0.1 μs measuring resolution
- Adjustable receiver gain
- Compatible with multiple transducer frequencies
- PL-Link PC software for analysis and data export
Typical Applications
Concrete uniformity evaluation, ultrasonic pulse velocity testing, crack-depth investigation, non-destructive concrete evaluation, structural investigations, research laboratories, DOT testing, and concrete quality assessment.
Lab Manager's Tip
Transducer selection matters almost as much as the instrument itself. The correct frequency depends on aggregate size, specimen dimensions, surface condition, and the material being tested. For conventional concrete, 54 kHz transducers are commonly suited to general-purpose work, while other frequencies address very coarse or fine-grained materials.
Specifications
ASTM C597
