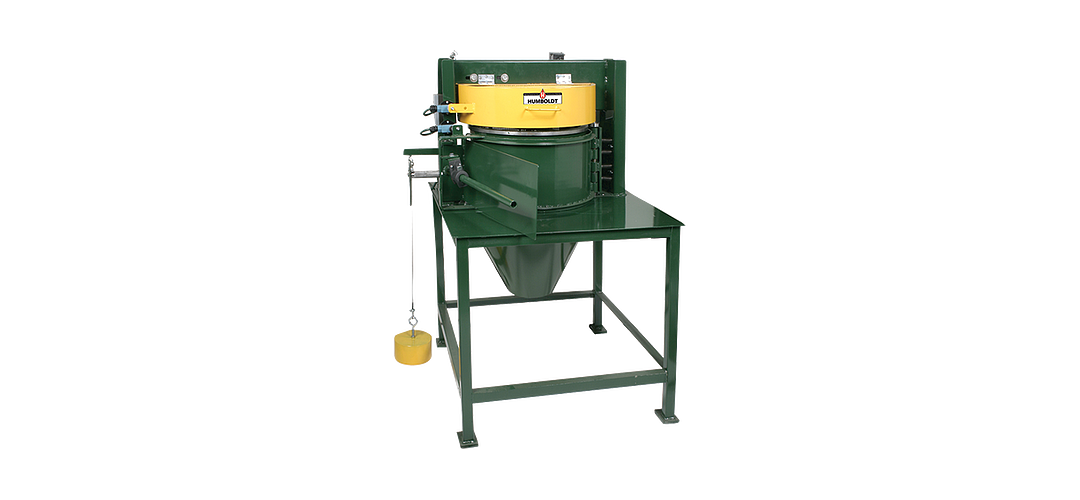

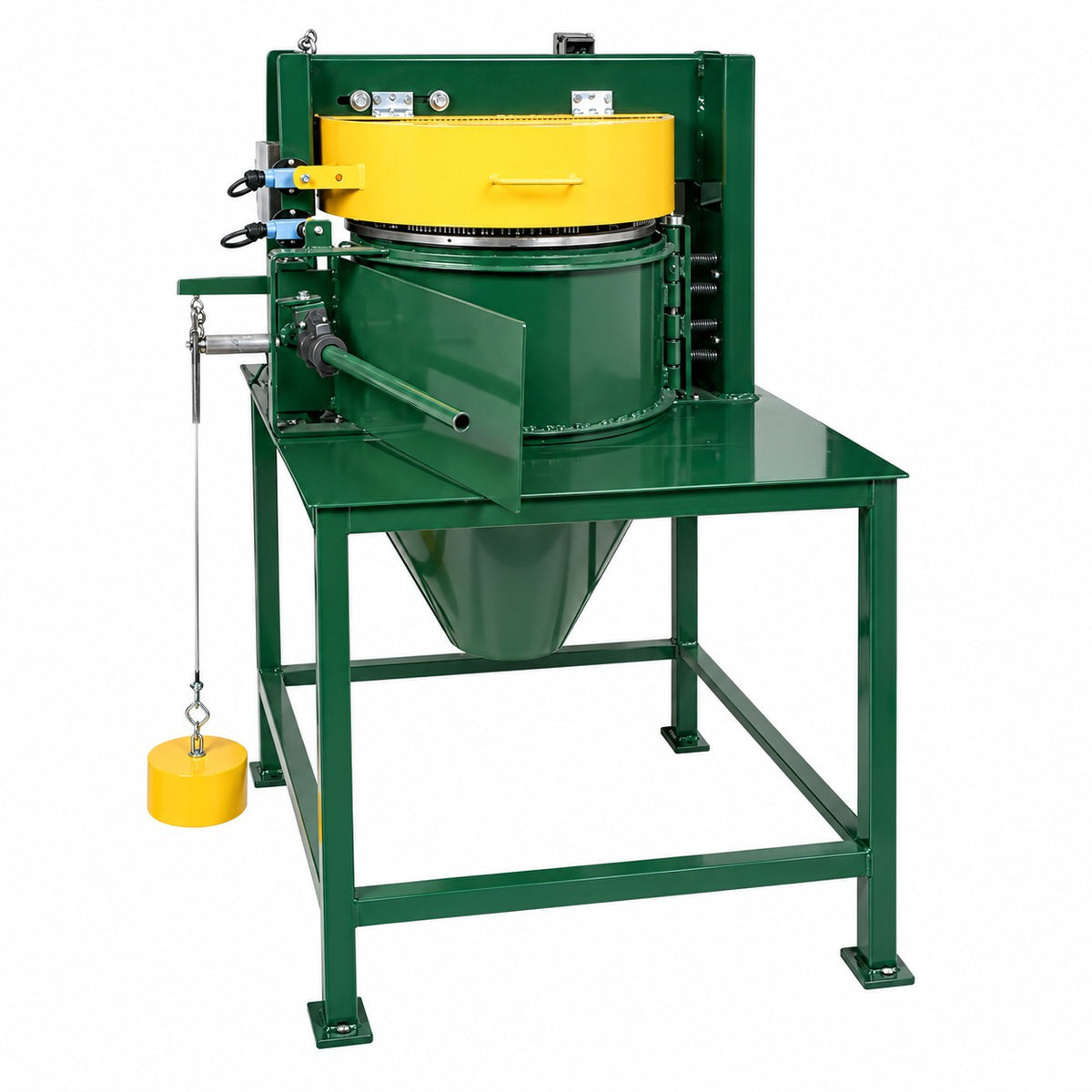

Rapid Soil Processor

The Humboldt Rapid Soil Processor dramatically reduces the manual preparation required for moisture-density and other soil testing by automatically processing soil samples while separating oversized material. Its motor-driven offset rotating drum requires no preset adjustments, allowing technicians to perform other laboratory work while the sample is being processed. Rocks up to approximately 3/4" are automatically separated to help protect the processing screen.

Key Features

• Automates time-consuming soil sample preparation
• Motor-driven offset rotating drum
• No preset adjustments required
• Automatically separates rocks up to approximately 3/4"
• Heavy-duty all-metal construction
• Frees technicians to perform other work during sample processing
• Replaceable processing screens
• Approximately 32" × 36" × 53"
• Available in 120V/60Hz, 220V/60Hz, and 220V/50Hz configurations
• Applicable to sample preparation associated with ASTM D558, D698, D1557, D1883 and D5102

Typical Applications: Geotechnical laboratories, DOT laboratories, commercial testing laboratories, universities, contractors, and soils laboratories performing Proctor, soil-cement, CBR, and other moisture-density-related testing.

Lab Manager's Tip: This machine makes the most sense for laboratories processing a high volume of soil samples, where reducing repetitive manual preparation can significantly improve technician productivity and consistency.
