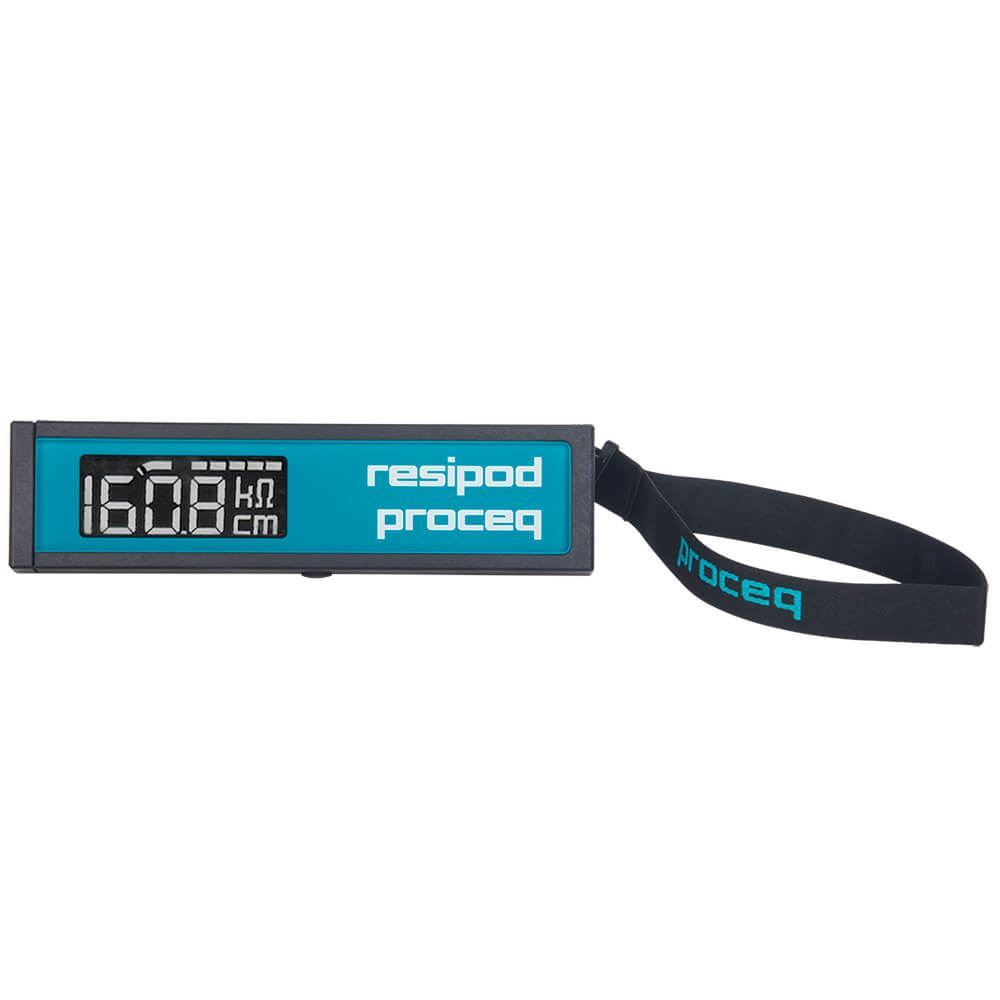

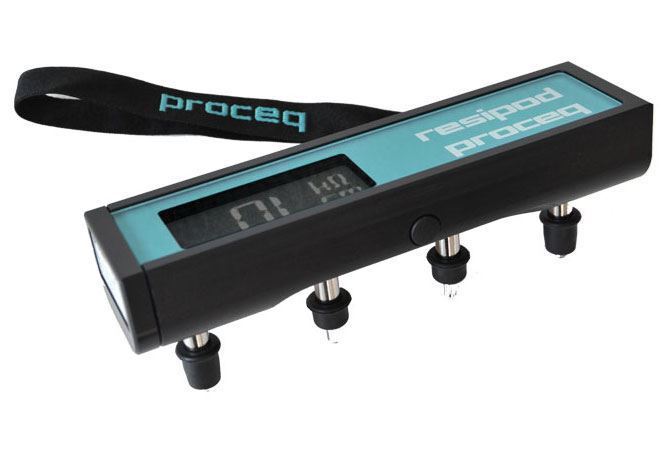

Resipod Concrete Resistivity Meter

The Resipod Concrete Resistivity Meter is a portable, easy-to-use testing instrument designed to measure the electrical resistivity of concrete, helping laboratories and field technicians evaluate concrete durability and resistance to chloride ion penetration. With selectable probe spacing and a wide measurement range, the Resipod provides a practical, nondestructive approach to assessing concrete quality.

Key Features

·         AASHTO T358: The 38mm probe spacing option is specified for surface resistivity testing in accordance with AASHTO T358.

·         Nondestructive Testing: Measures concrete surface resistivity without damaging the test specimen or structure.

·         Wide Measurement Range: Measures concrete resistivity from 1 to 1,000 kΩ·cm.

·         Two Probe Spacing Options: Available with 38mm or 50mm probe spacing to accommodate different testing requirements.

·         Simple Operation: User-friendly design requires minimal training, making it suitable for routine laboratory and field testing.

·         Durability Assessment: Helps evaluate concrete's resistance to chloride ion penetration and potential reinforcement corrosion.

·         Portable Design: Convenient for testing concrete specimens and evaluating existing concrete structures.

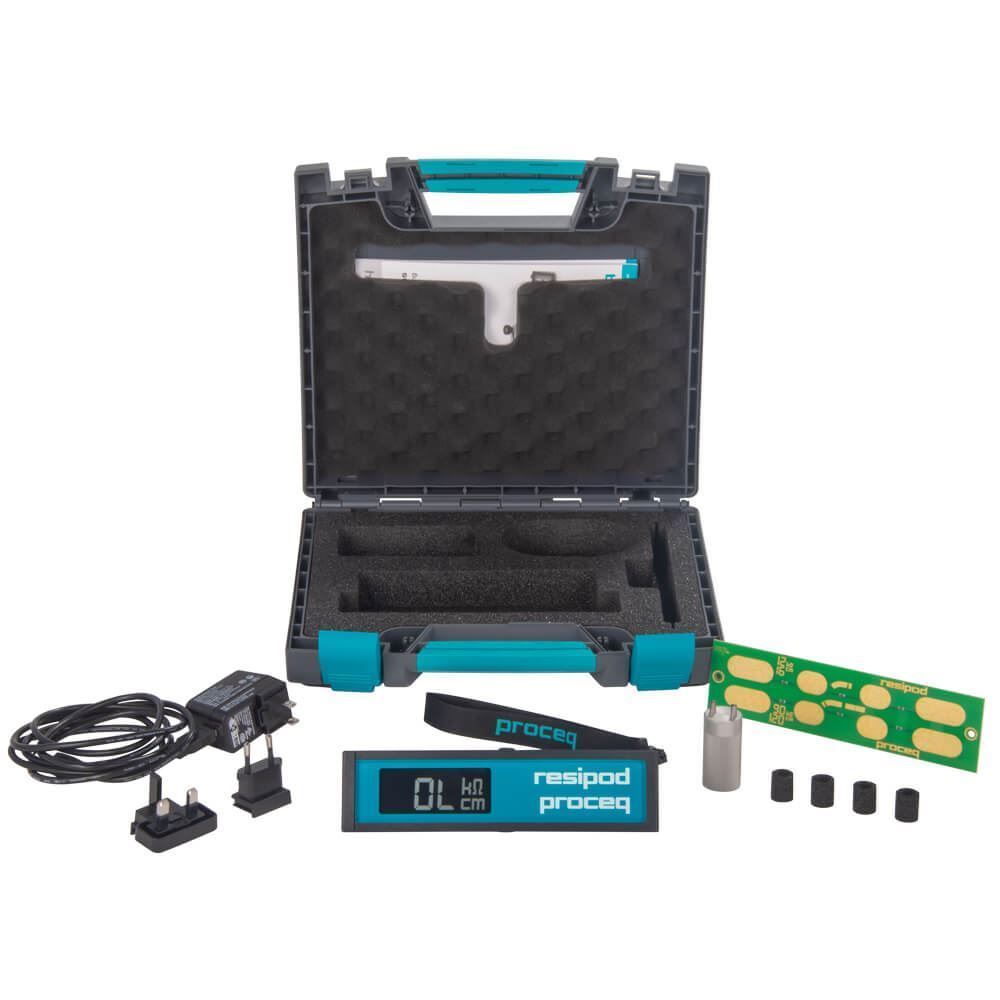

Included Items

·         Resipod Concrete Resistivity Meter

·         Test strip

·         Foam contact pads

·         USB charger

·         Resipod Link software

·         Carrying case

·         Carrying strap

Lab Manager's Tip

For laboratories performing AASHTO T358 testing, select the 38mm probe spacing configuration. Consistent probe contact, proper surface moisture conditions, and repeatable measurement locations are essential for reliable resistivity results. Higher resistivity values generally indicate lower ionic conductivity and potentially greater resistance to chloride penetration, but results should be interpreted with consideration of moisture, temperature, and concrete composition.

Typical Applications

The Resipod Concrete Resistivity Meter is used by concrete testing laboratories, transportation departments, engineering consultants, and quality control personnel to evaluate the electrical resistivity of hardened concrete.

Typical applications include assessing concrete durability, evaluating resistance to chloride ion penetration, supporting corrosion-risk assessments for reinforced concrete, and monitoring concrete quality during construction or infrastructure inspections.

The instrument is also useful for evaluating concrete mixture performance and comparing durability characteristics of different concrete formulations.
