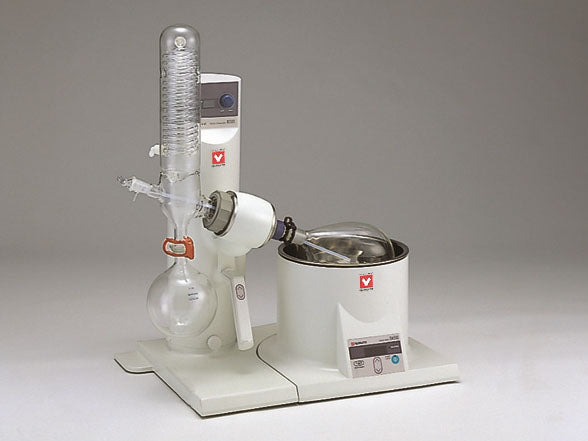

Rotary Evaporator
- Features
- One touch electric lift for easy up and down movement.
- The evaporator's motor speed (rpm) is digitally set and displayed.
- Unique durable vacuum seal suitable up to 2L flasks.
- Stable rotation at low and high speeds.
- Equipped with lift up switch in case of power outage.
- Removable bath for easy cleaning and water replacement, with the option for water or oil bath.
- Compact design fits into any fume hood.
- Universal power supply: works with 100-240VAC
- AR-3000
| Motor | DC brushless motor |
|---|---|
| Rotation speed | 20~250 (rpm) |
| Lift stroke | 130ｍｍ |
| Rotational speed setting | Control knob (digital indication) |
| Safety function (main unit) | Manual-setting lower limit, motor overload |
| Lifting feature | Motorized lifting system |
| External dimensions（W×D×H mm） | 643×400×727mm |
| Remarks(dimensions) | When glass set B is installed. Lift-up time: 857 mm |
| Power Source | AC100 to 240V 1.5A |
| Weight | 14.1kg |
| Remarks(weight) | Excluding glassware and water/ oil bath. |
