Adjustable Hitch Mount Core Rig

Plan B

$ 7,199.00
Item #: CE-1175

USA and Canada Prices Only. Click here for International Quotes

HMA's Adjustable Hitch Mount Core Rig

  • Our Core Rig setup is recommended for asphalt use. If you plan on using it for other applications, please call to ensure proper rig configuration

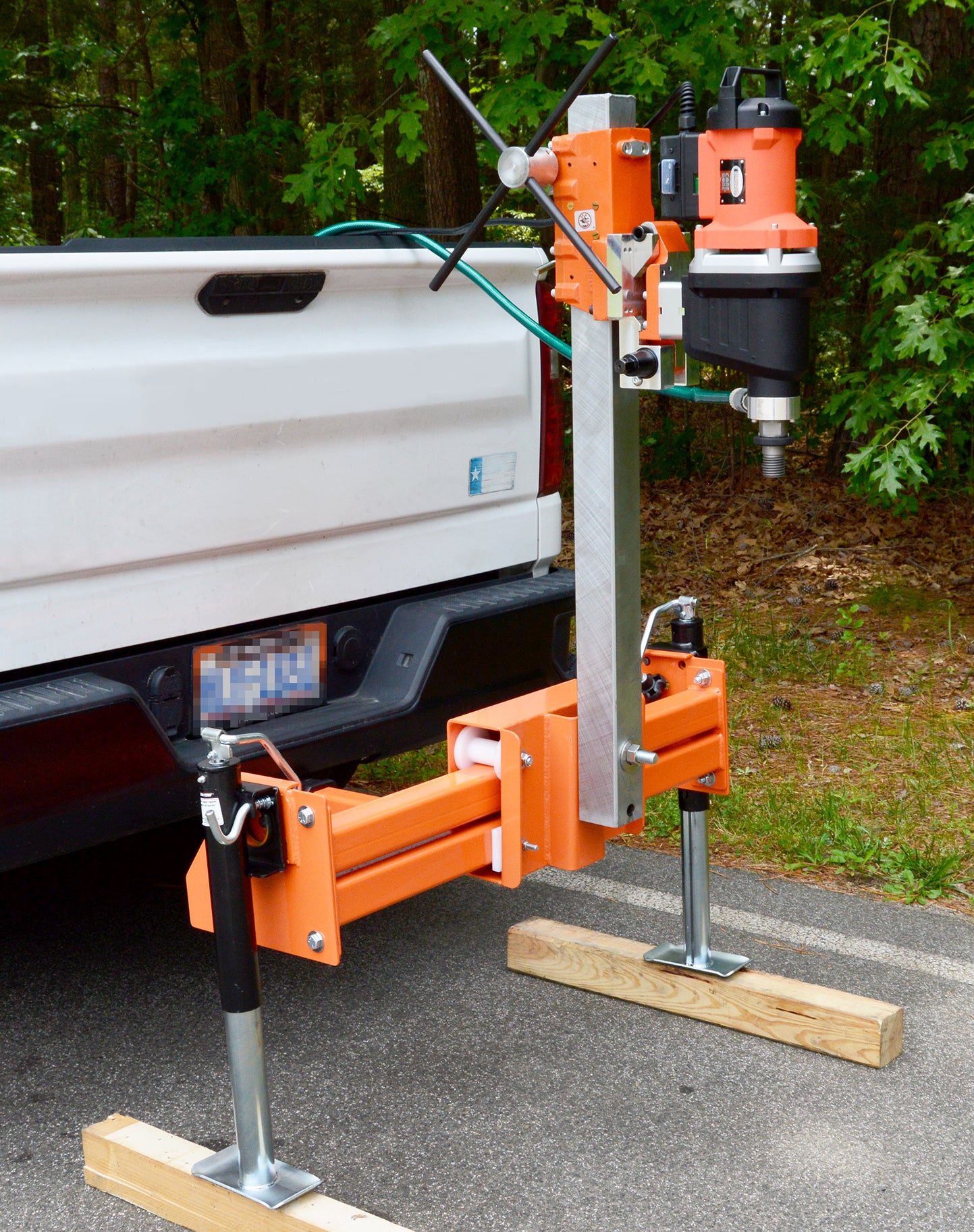

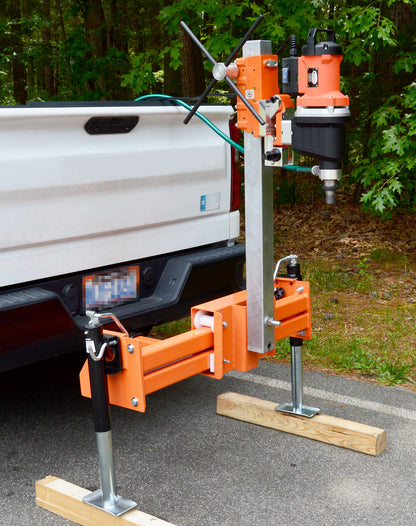

  • Adjustable Hitch Mounted frame provides a 36" wide coring area without moving your vehicle
  • Available with Core Bore Drill Motor - Milwaukee motors are currently unavailable
  • Provides a rigid reaction mass to prevent the coring rig from spinning around itself if the core bit becomes bound up in the pavement, unlike free-standing core drills
  • Core Bore Components
  • Stabilizing Jacks at each end help level up the back end of your truck to provide a vertical core:  11.25" Retracted Length & 21.25" Extended Length
  • Fits in a standard bed and Class 3 (2") Hitch Receiver
  • You can use your existing Core Drill with the Hitch Mount by removing the base plate and drilling 2-holes through your mast to fit over the bolts on the Sliding Hitch Mount.
  • Core Bits Sold Separately - available HERE
  • Drill Rod Extensions Sold Separately - available HERE
  • For our complete line of core removal tools - Click HERE

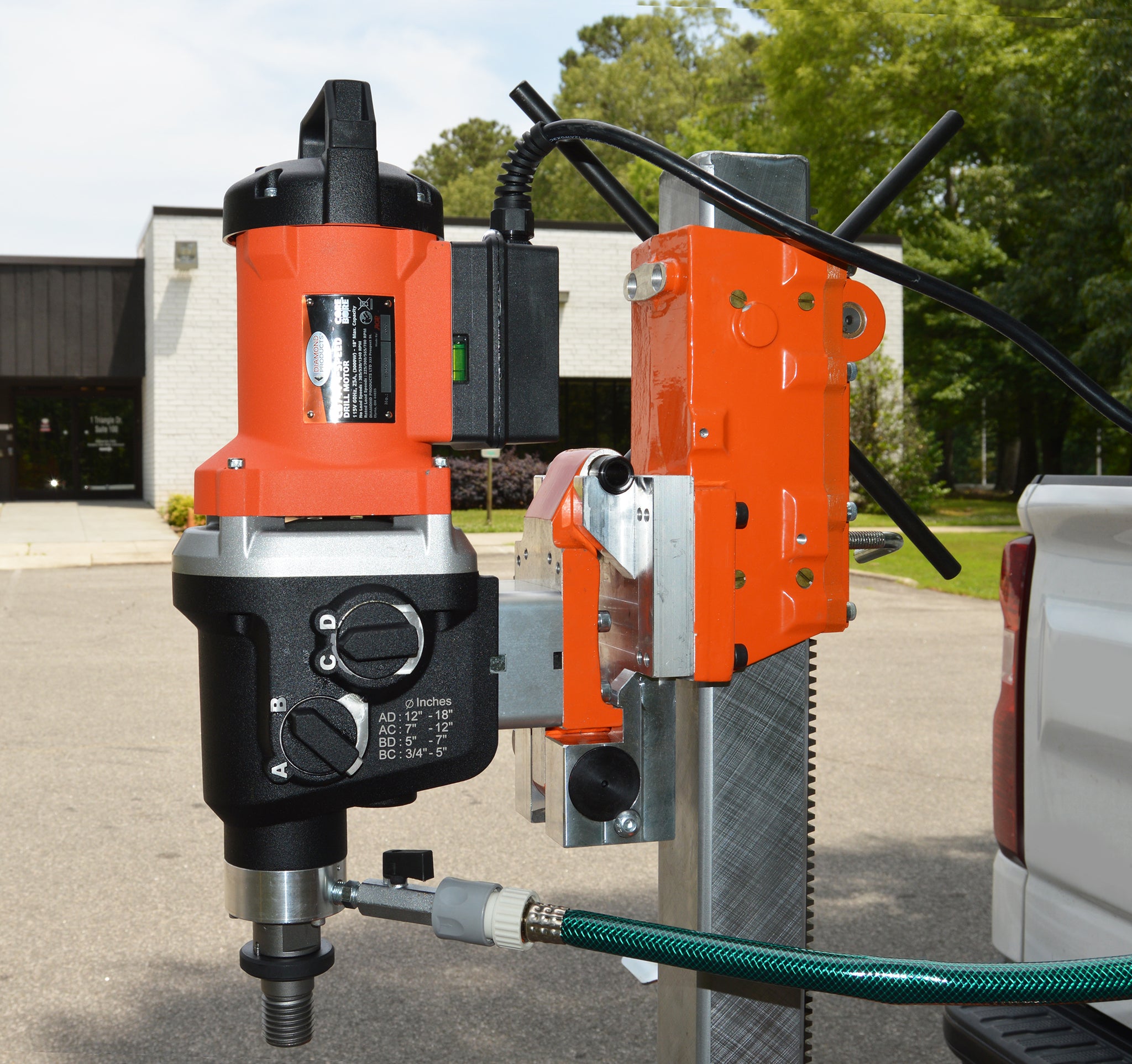

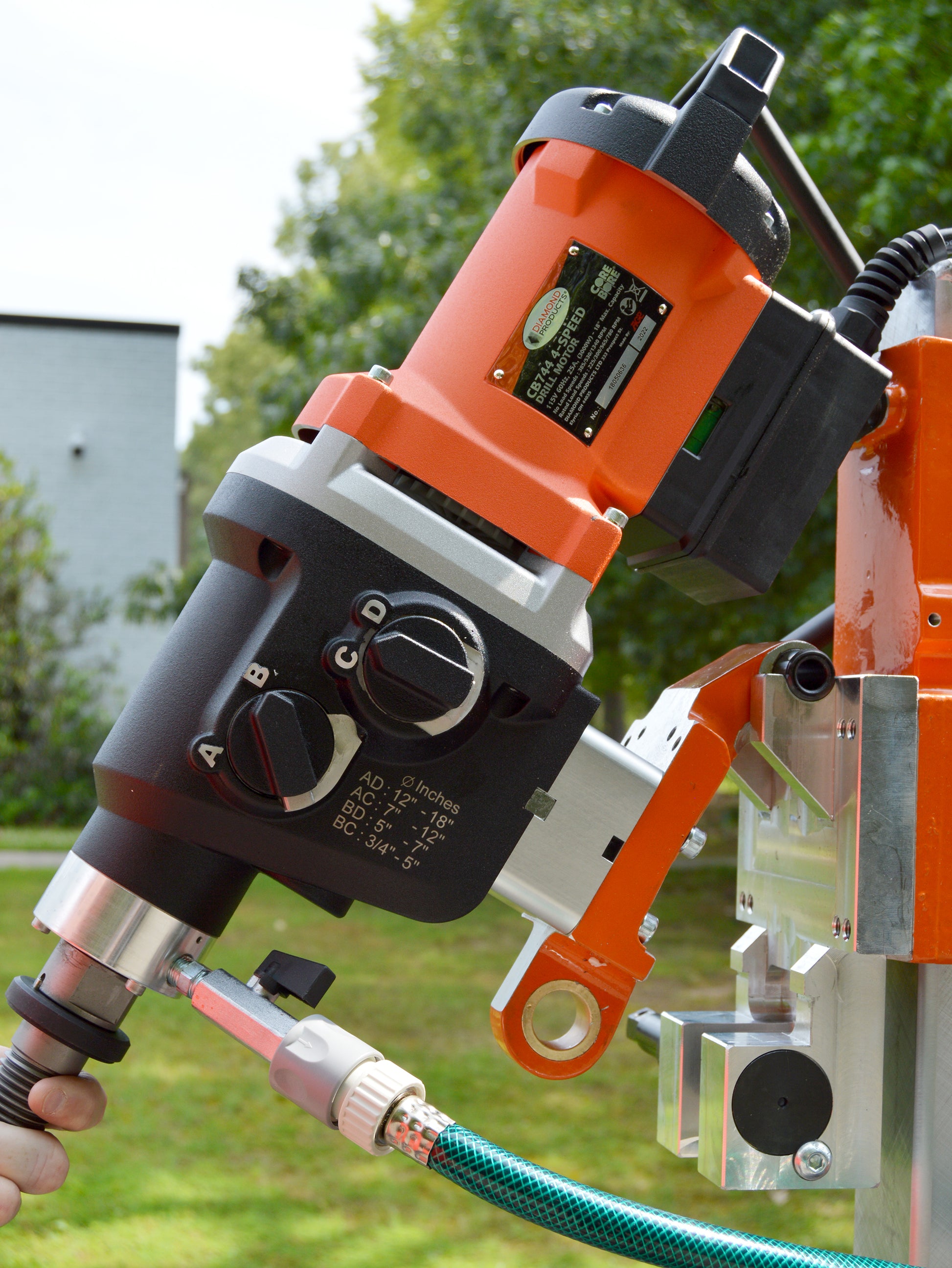

  • Features the HMA Adjustable Hitch Mount, fitted with a CoreBore 42" Mast, Carriage Assembly, Quick-Disconnect Motor Mount, 2-Outlet Control Panels with Dual Ammeters/On-Off Switches/115V Receptacles (for Drill Motor and your Water Pump) and a Milwaukee® 2-Speed Drill Motor
  • Does NOT include water tank, water pump or generator
  • 300lbs.
  • CE-1175
