Soil Cement Mold Set

The Soil-Cement Mold Set is designed for preparing cylindrical soil-cement specimens for compressive strength testing in accordance with ASTM D1632 and ASTM D1633. The mold assembly allows a predetermined quantity of soil-cement mixture to be initially consolidated with a tamping rod and then compacted to the required specimen length using a dropping-weight compactor.

Built around a durable seamless steel mold, this complete set provides the primary mold components needed for consistent laboratory preparation of soil-cement specimens. It is ideal for geotechnical, construction materials, DOT, and research laboratories performing strength testing of cement-stabilized soils and bases.

Key Features

• Applicable Standards: ASTM D1632, ASTM D1633
• Designed for preparation of soil-cement compressive strength specimens
• 2.8 x 9 in (71 x 229 mm) ID x H seamless steel mold
• Includes a 6 in (152 mm) mold extension with collar
• Top and bottom pistons provide proper specimen formation during compaction
• Split spacer clip assists with specimen preparation
• Rugged construction for repeated laboratory use
• Additional molds can increase sample preparation and curing efficiency
• Designed for use with a dropping-weight soil-cement compactor

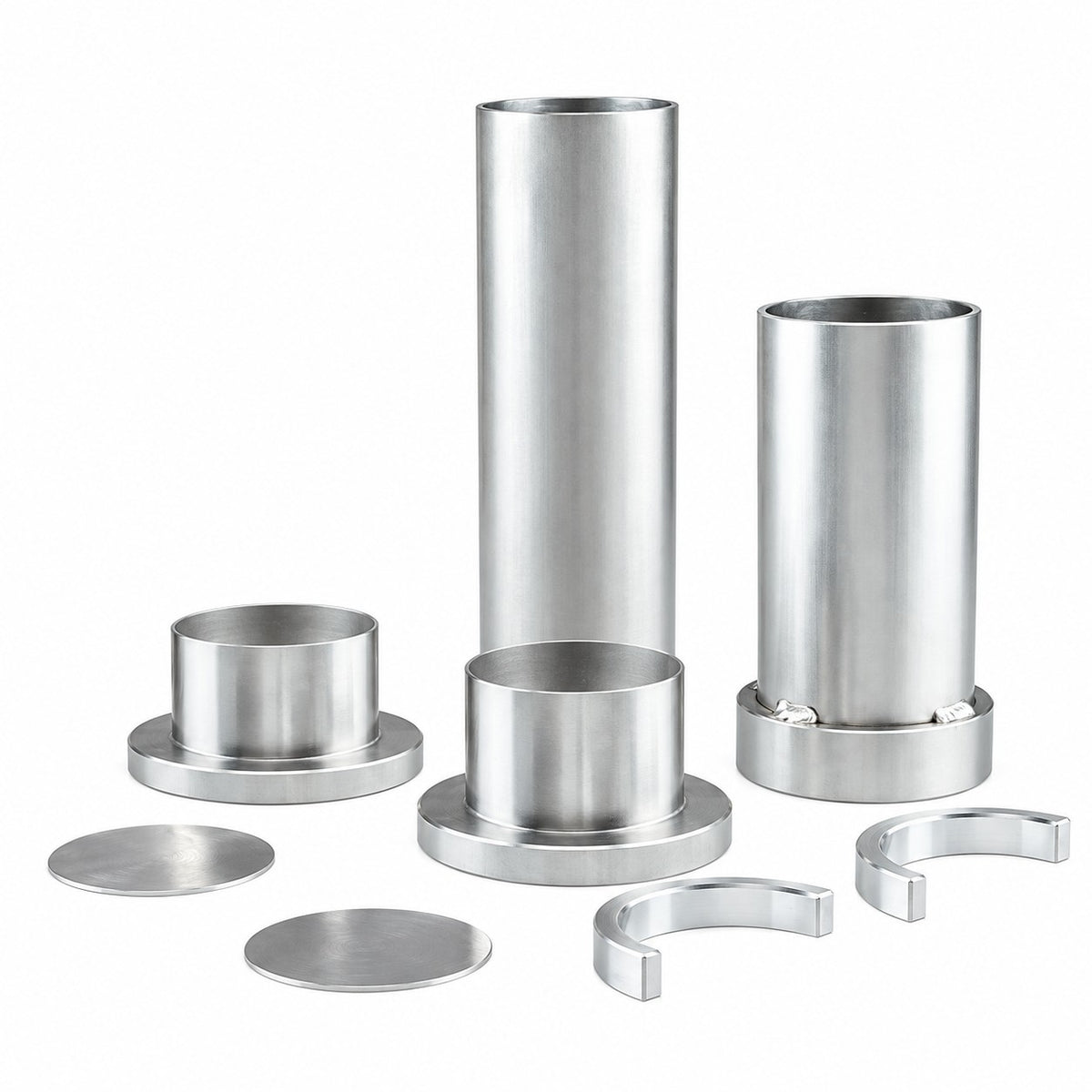

Included Items

• 2.8 x 9 in (71 x 229 mm) ID x H seamless steel mold
• 6 in (152 mm) mold extension with collar
• Top piston
• Bottom piston
• Split spacer clip
• Two aluminum 1/16 in (1.54 mm) thick separating discs

Lab Manager's Tip

For a complete soil-cement specimen preparation setup, pair the Soil-Cement Mold Set with a compatible dropping-weight soil-cement compactor and tamping rod. Additional molds are recommended for laboratories preparing multiple specimens because they allow samples to remain in their molds during preparation and curing without slowing the next batch of testing.
