Soil Compaction Analyzer for Rainhart Soil Compactor

The Rainhart Soil Compaction Analyzer is designed for use with compatible Rainhart automatic soil compactors to provide additional measurement and analysis during specimen compaction. Rather than relying solely on the finished moisture-density relationship, the SCA allows advanced laboratories to evaluate soil response throughout the compaction process.

Key Features

• Required for TxDOT Tex-113E
• Designed for compatible Rainhart automatic soil compactors
• Adds measurement and analysis capability to the soil-compaction process
• Provides additional information about specimen behavior during compaction
• Supports advanced soil-compaction analysis
• Designed for integration with the Rainhart compactor platform
• Particularly useful for DOT, geotechnical, and research laboratories

Included Items

• Laptop Computer & Cables: 8lbs, 20” X 16” X 4”
• Control Box Assembly & Hardware: 14lbs, 16” X 14” X 14”

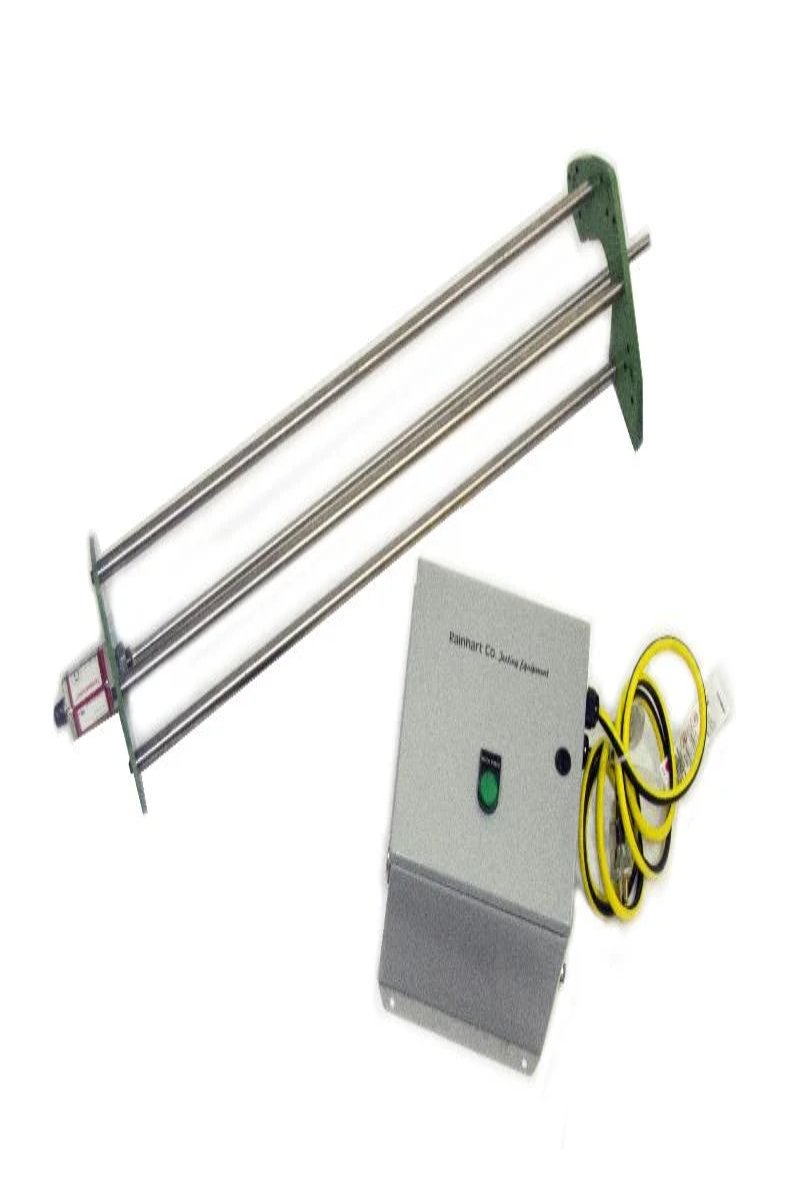

• Sensor Stand & Sensor: 20lbs, 48” X 10” X 10”
• 220VAC / 50Hz models available


Typical Applications

Proctor compaction analysis, advanced moisture-density evaluation, soil compaction research, DOT soil testing, geotechnical laboratory testing, university research, and evaluation of soil response throughout the compaction process.

Lab Manager's Tip

The SCA is not a replacement for the automatic soil compactor—it expands the information available from the compaction process. It is most valuable for laboratories interested in understanding how the specimen responds during compaction rather than simply recording the final moisture-density relationship.
