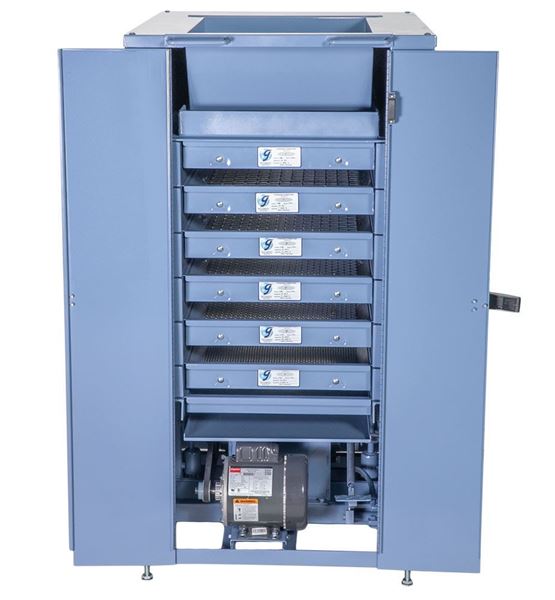

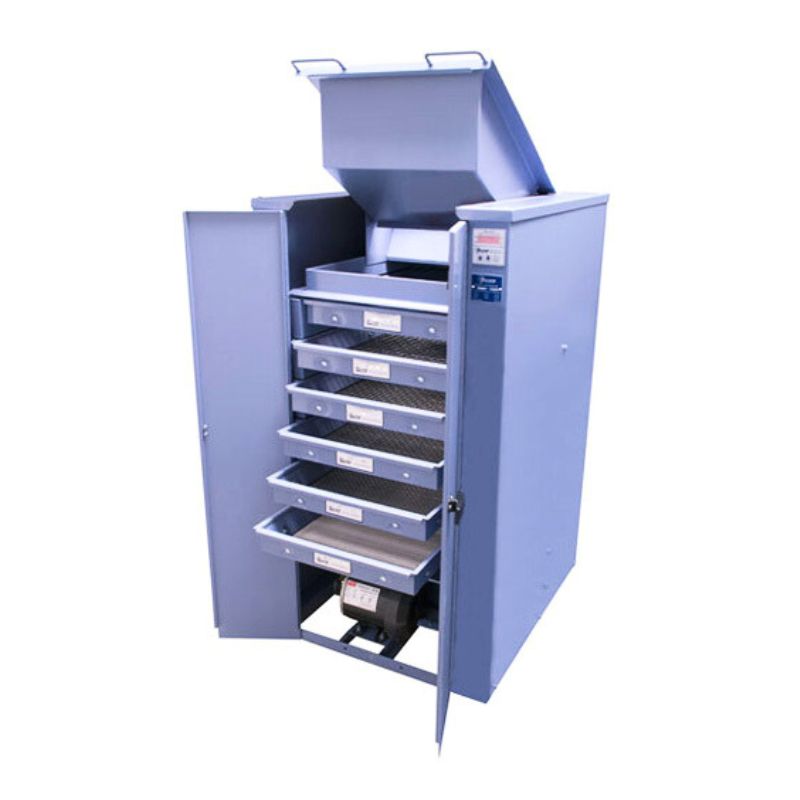

TM-5 Aggregate Screening Machine

he Gilson TM-5 Test-Master is a heavy-duty aggregate screening machine designed for rapid, repeatable particle-size analysis of large aggregate and coarse-material samples. Its enclosed cabinet, hydraulic clamping system, digital timer, integral hopper, and counterbalanced drive make it an excellent choice for laboratories performing frequent gradation testing.

Key Features

• Designed for high-volume aggregate particle-size testing
• Accommodates up to six screen trays plus one pan
• Fully enclosed cabinet helps reduce sound and contain dust
• Counterbalanced drive requires no floor bolting
• Integral hopper evenly distributes the sample
• Hydraulic tray clamping
• Foot-pedal clamp/release operation
• Integrated digital timer
• Safety interlock shuts the machine down when doors are opened

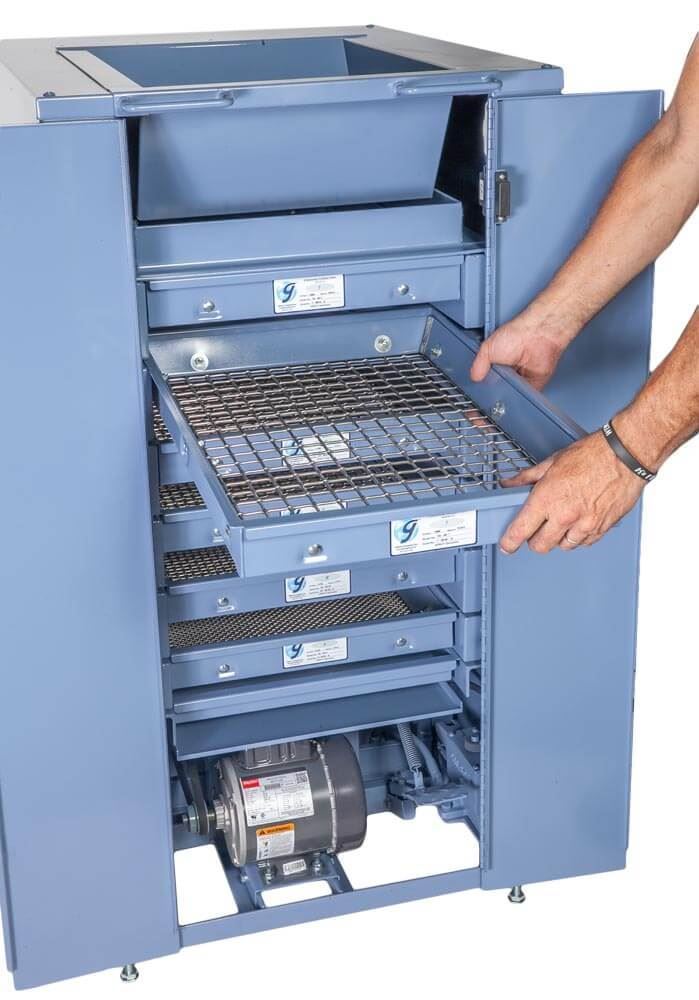

• Compatible with removable Gilson Testing Screen/Test-Master trays

Included Items

• Gilson TM-5 Test-Master Aggregate Screening Machine

Screen trays and collection pan are sold separately.

Typical Applications

Aggregate gradation, asphalt and concrete aggregate testing, quarry QC, DOT laboratories, commercial testing laboratories, mining applications, and university construction materials laboratories.

Lab Manager's Tip

For most standard aggregate gradations, the TM-5's six-tray capacity may be all you need. If your normal sieve stack routinely requires seven separation trays, move to the TM-6 rather than repeatedly splitting the test into multiple runs.
