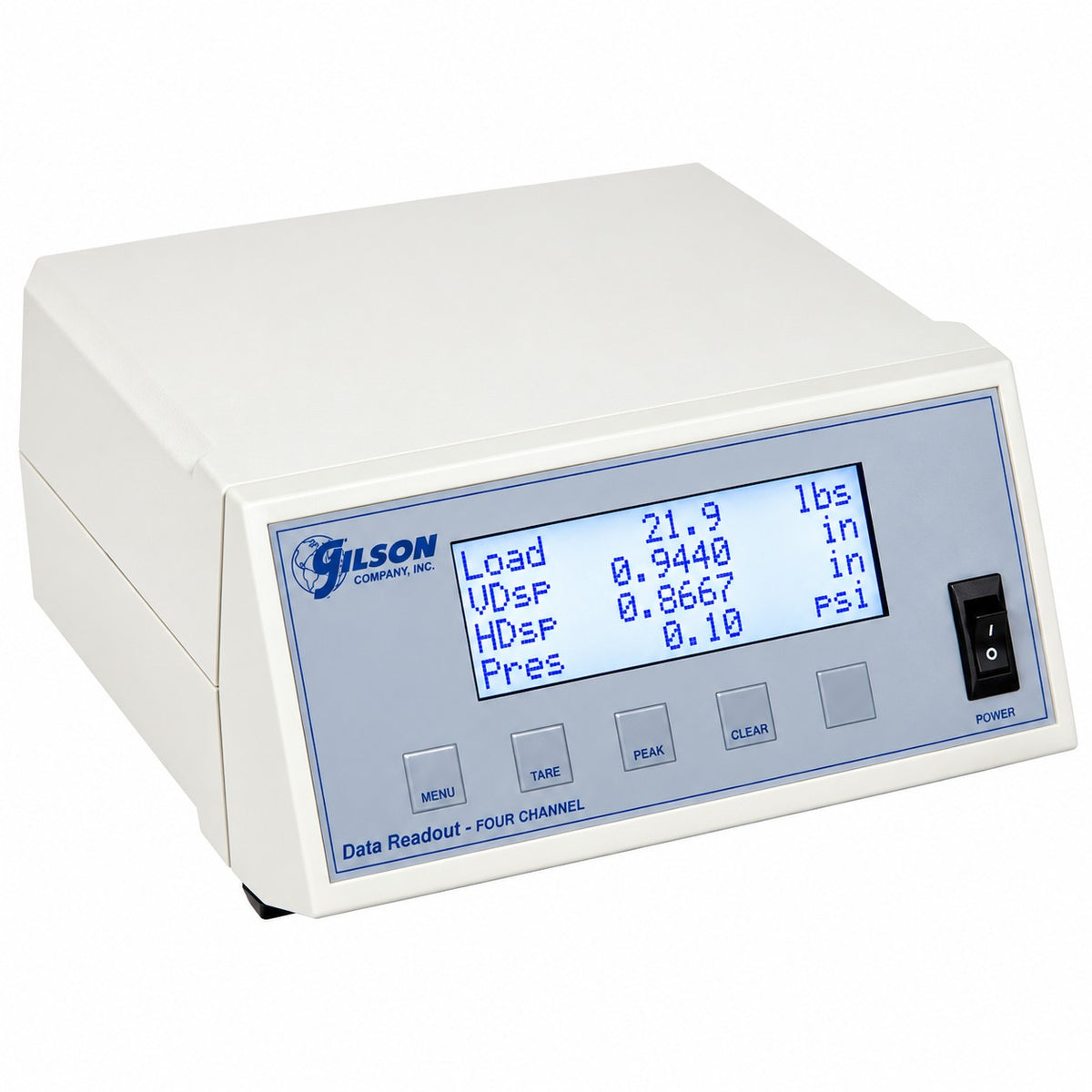

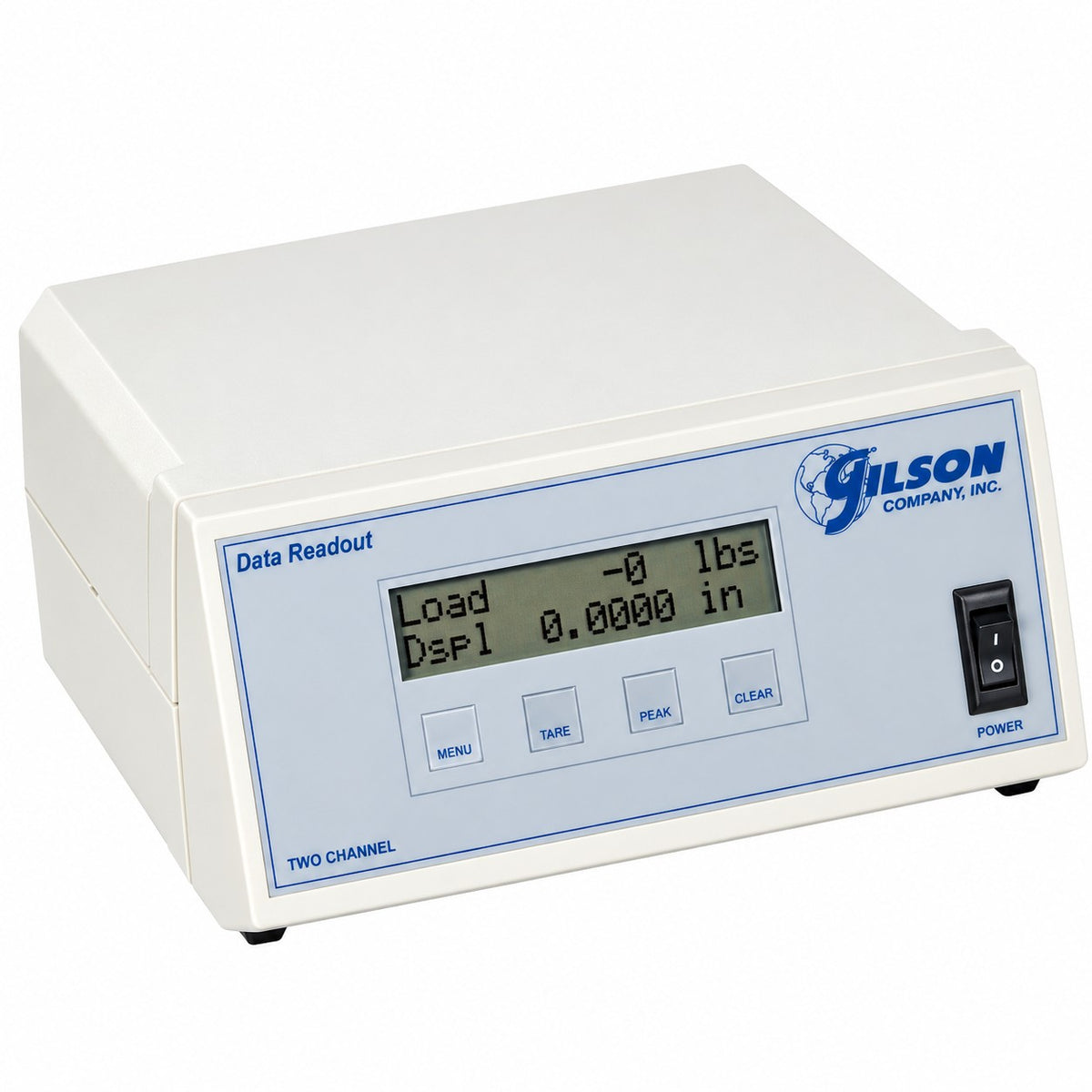

Gilson/Karol Warner Two & Four-Channel Data Readout

These two- and four-channel digital data readouts consolidate measurements from compatible laboratory sensors into a single viewing and recording station. Independent conversion circuitry allows multiple channels to be measured simultaneously, which is useful when a materials test requires technicians to observe load and displacement or other signals together. An illuminated display supports real-time monitoring, while computer connectivity helps transfer results for analysis and recordkeeping. The choice of channel count lets laboratories configure a system around their existing instruments without purchasing unnecessary inputs.

Key Features

• Separate conversion circuitry for each input enables simultaneous measurements, making the readout useful for tests that require load and displacement data at the same time.
• Two- and four-channel choices allow laboratories to match the system to the number of sensors they actually need.
• A clear illuminated display lets technicians monitor measurements during a test without relying solely on a connected computer.
• Data transfer to a computer supports more efficient test documentation and reduces manual transcription of readings.
• Compatibility with appropriately matched force, pressure and displacement sensors makes the unit adaptable to different laboratory test setups.

Included Items

Readout, mini-USB cable and GetData 5 software.

Lab Manager's Tip

Check sensor compatibility, calibration and electrical supply before collecting data. For ASTM or AASHTO tests with measurement-accuracy limits, validate the entire sensor/readout assembly against the applicable procedure.
