Ultrasonic 8" & 12" Sieve Cleaner - 120V

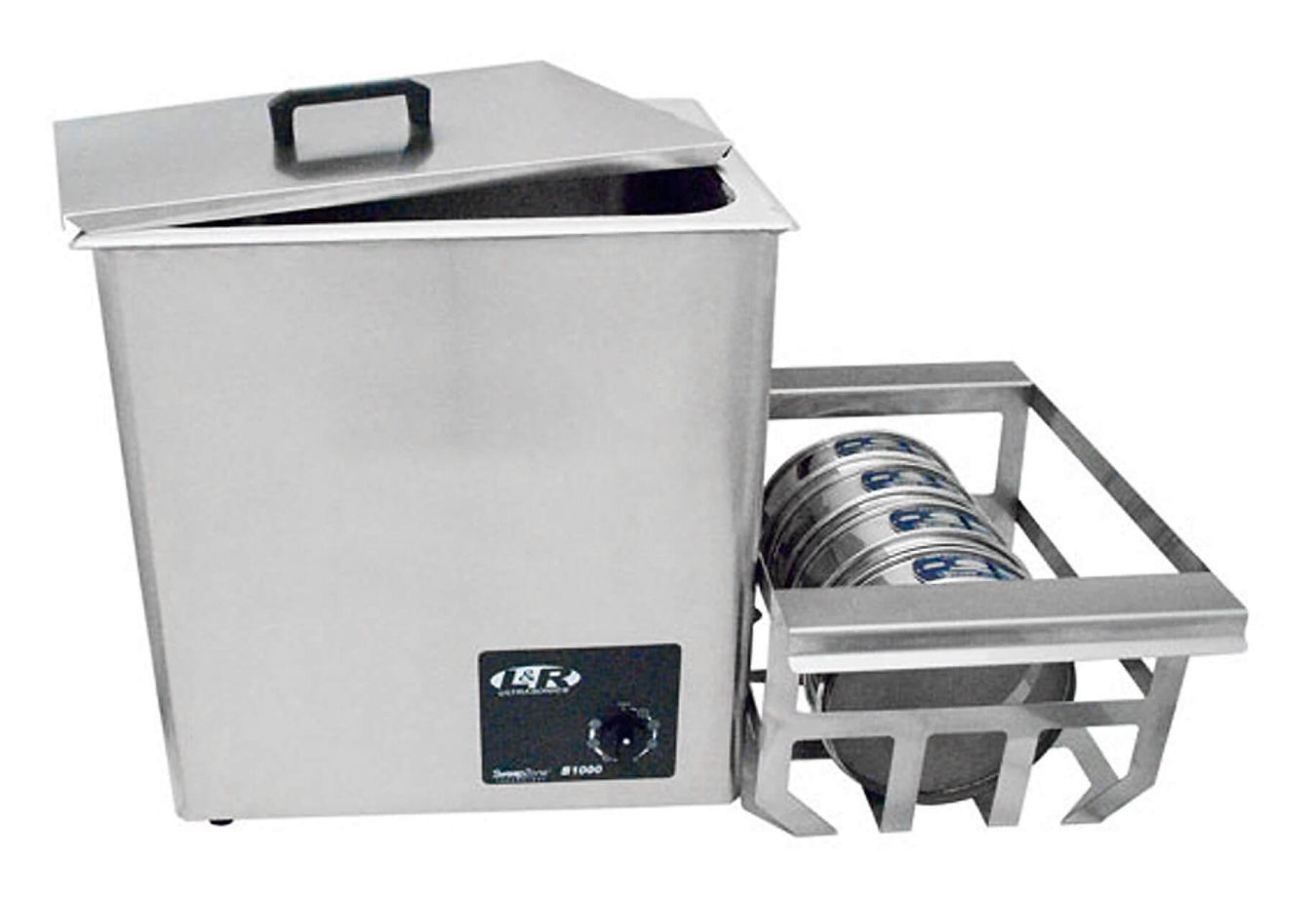

The Ultrasonic Sieve Cleaner uses ultrasonic cavitation to remove embedded fine particles from test-sieve mesh without the aggressive brushing that can damage delicate wire cloth. Its 11.62-gallon stainless-steel tank accommodates multiple 8" sieves and can also be used for partial-immersion cleaning of 12" sieves, making it well suited for high-volume construction-materials laboratories.

Key Features

• Ultrasonic cleaning safely removes lodged fine particles from sieve mesh
• 11.62-gallon / 44L stainless-steel tank
• Fully immerses four full-height 8" sieves
• Fully immerses six half-height 8" sieves
• Partial-immersion cleaning of 12" sieves with manual repositioning
• 43kHz ±2kHz ultrasonic frequency
• SweepZone system distributes ultrasonic cleaning energy throughout the tank
• 0–60 minute timer
• Microprocessor-controlled generator
• Generator includes cooling fan
• Tank includes drain valve
• Helps protect fine and delicate sieve cloth compared with aggressive manual brushing

Included Items

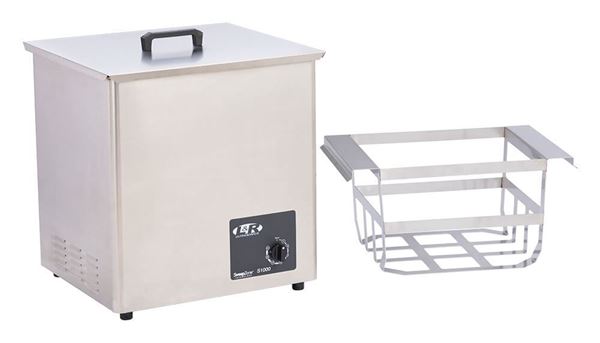

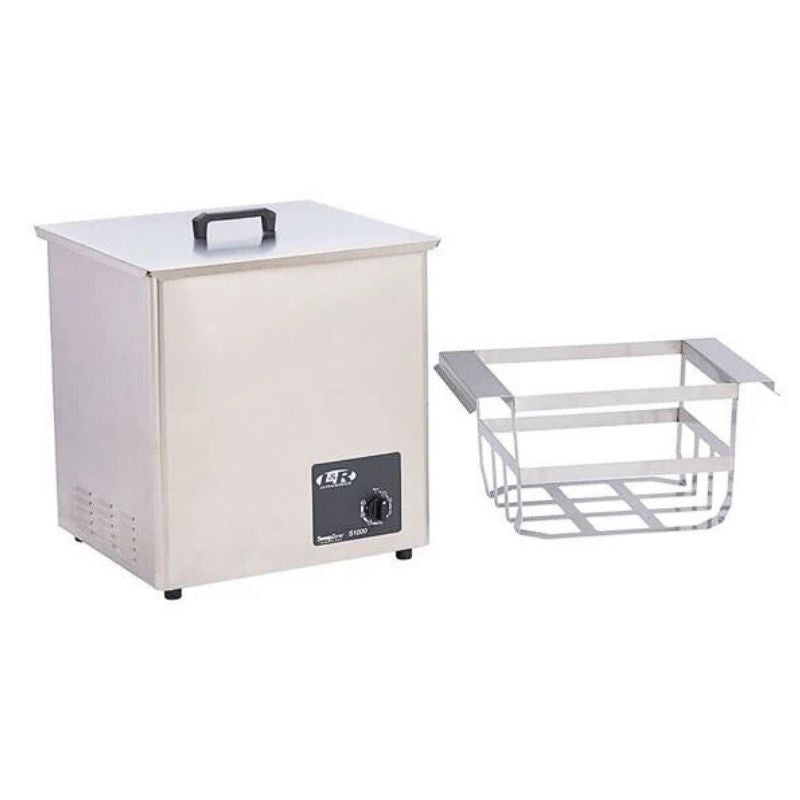

Ultrasonic Sieve Cleaner and sieve holding rack.

Typical Applications

Cleaning 8" and 12" laboratory test sieves, aggregate laboratories, soil laboratories, asphalt laboratories, concrete laboratories, fine-mesh sieve maintenance, removal of embedded particles, and routine maintenance of precision test-sieve inventories.

Lab Manager's Tip

Ultrasonic cleaning is particularly valuable for fine mesh where brushing can distort or break the wire cloth. Avoid overcrowding the rack and use a compatible cleaning solution when necessary. Thorough sieve cleaning can also help prevent retained particles from influencing subsequent gradation results.
