14-Cubic Ft Sheldon Forced Air Oven, 220 Volts

Sheldon Manufacturing

$ 4,784.00
Item #: OV-5440

USA and Canada Prices Only. Click here for International Quotes

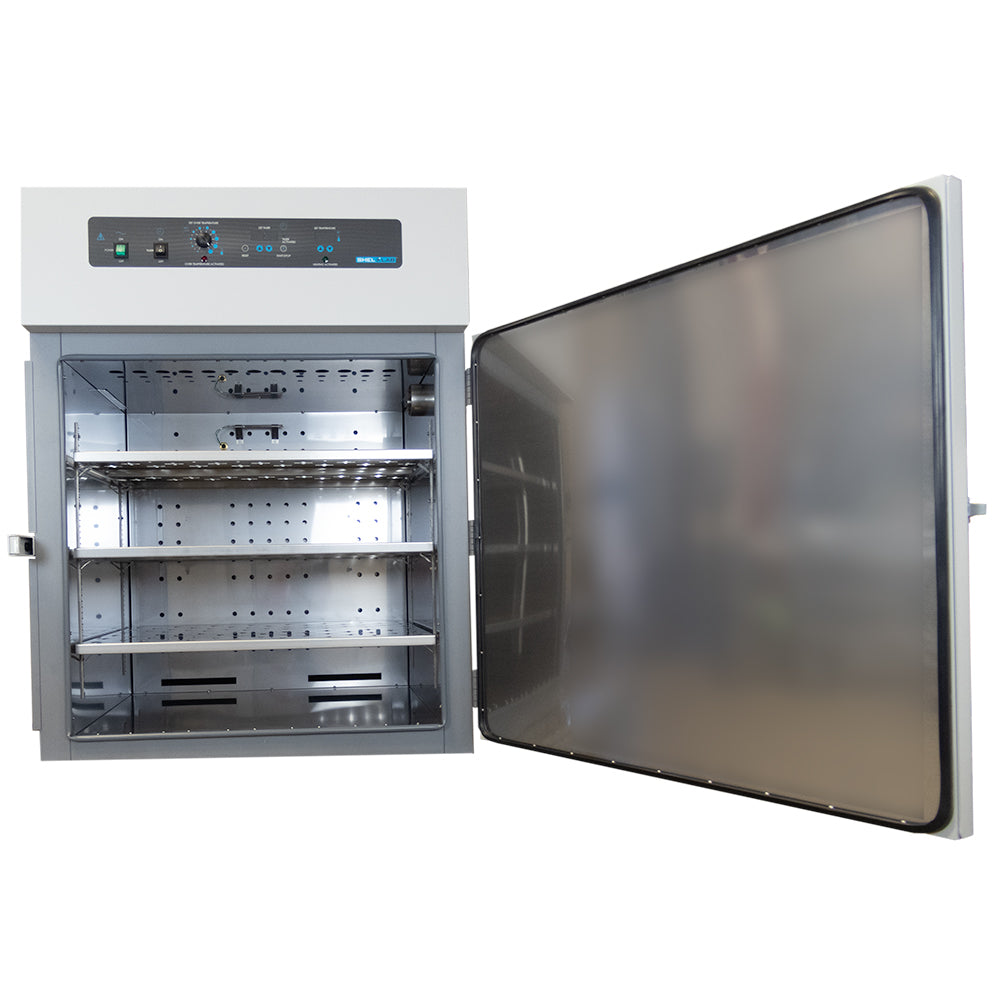

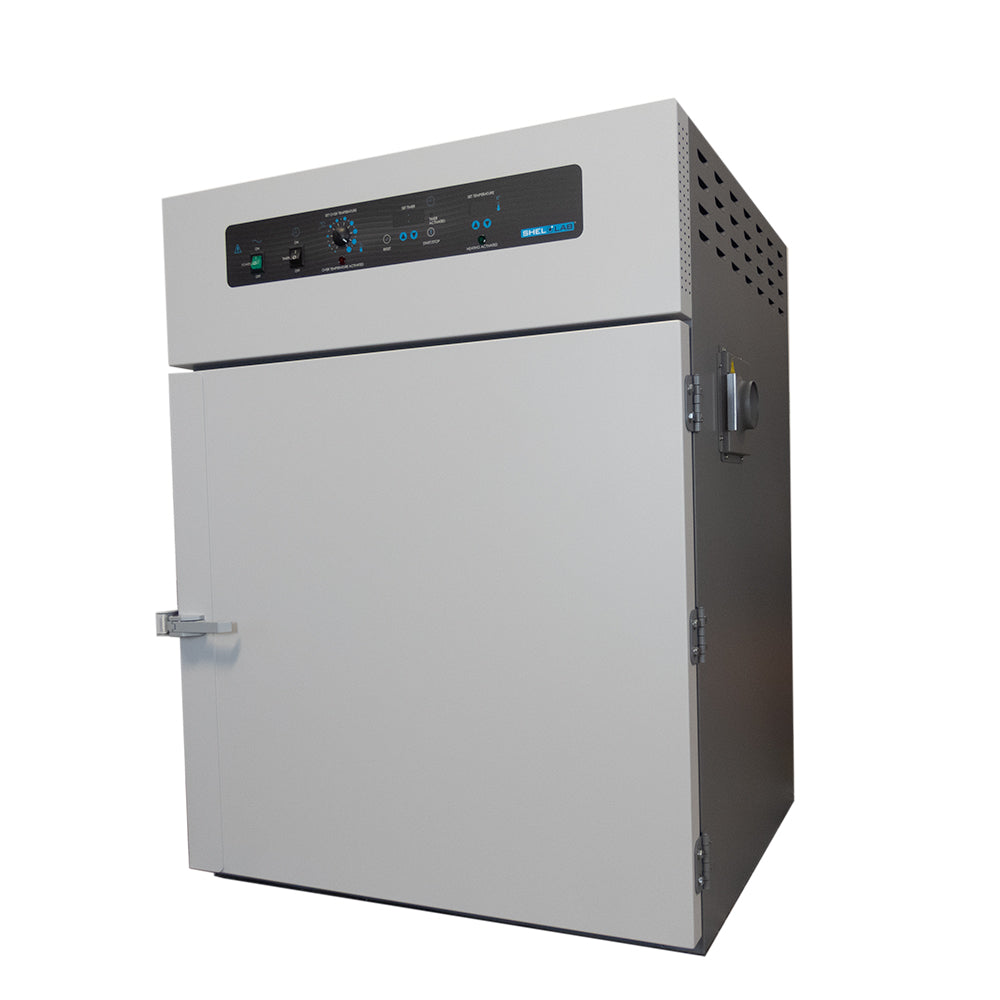

14-Cubic Foot Forced Air Oven

  • This oven is great for batch drying lots of aggregates or curing pans of mix

  • A forced blower that assists airflow offers great chamber temperature uniformity - +/- 3˚C @ 110˚C

  • Temperature Range celsius Ambient +15ºC to 260ºC
  • It only takes 24 minutes to reach 150˚C and just 8 minutes recovery time

  • The turbo blower and heavy-duty motor work tag team style to move air evenly over the shelves and samples, for constant drying or curing

  • Safety features include a user-controlled over-temperature protection system that runs independently from the main controller, insuring the correct temperature is always reached and never exceeded, and the heating elements are actually outside the oven chamber, in the event something spills inside the oven

  • Other great features include an electronic timer that shuts off at a pre-selected time, 3-1/2” of insulation, wrapped in 2 layers, eliminating a seam, and a chamber door gasket that prevents heated air leakage

  • Amps: 16.5A Hertz: 50/60 Watts: 3950W Volts: 220V

  • Exterior Dimensions: 37”W x 34”D x 47”H Inside Dimensions: 30.75”W x 24.75”D x 31”H Comes with 3 Shelves, but it can hold 8

  • Maximum Shelf Load is 75 Lbs Per Shelf

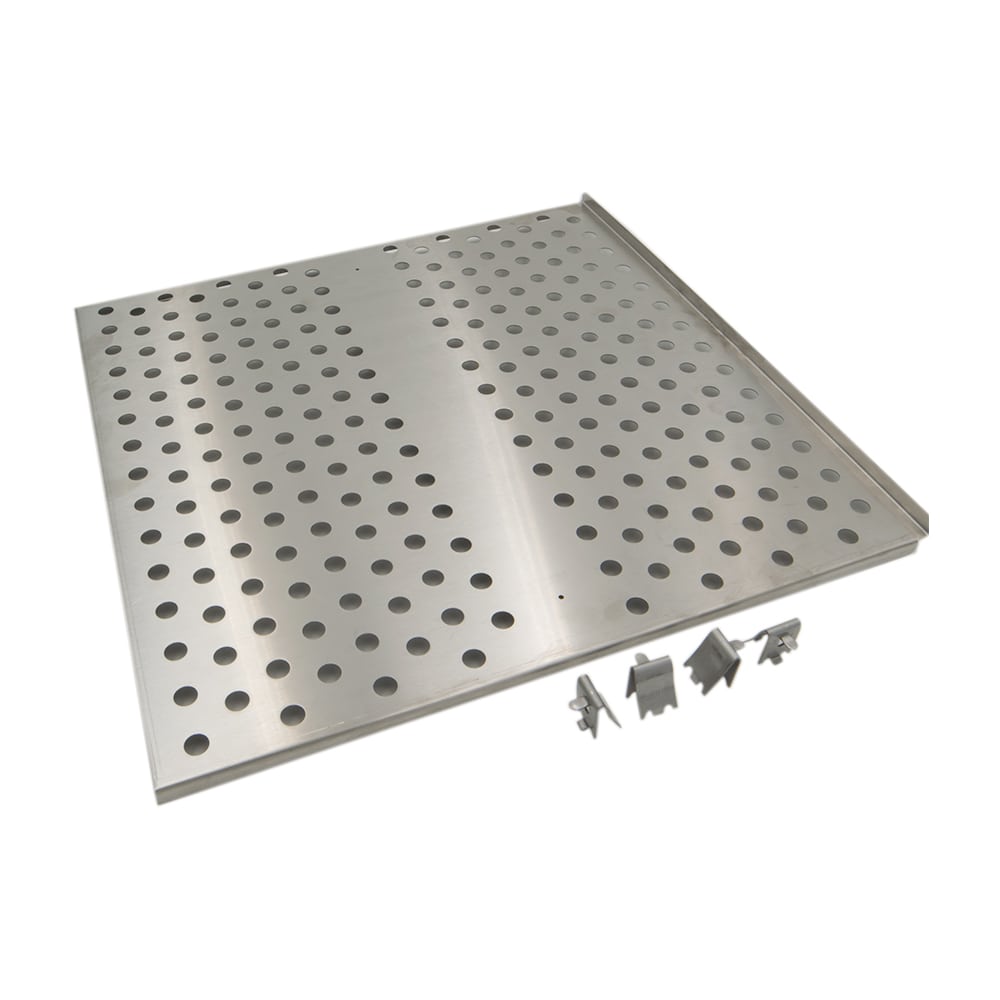

  • Additional shelves available HERE
  • OV-5440
