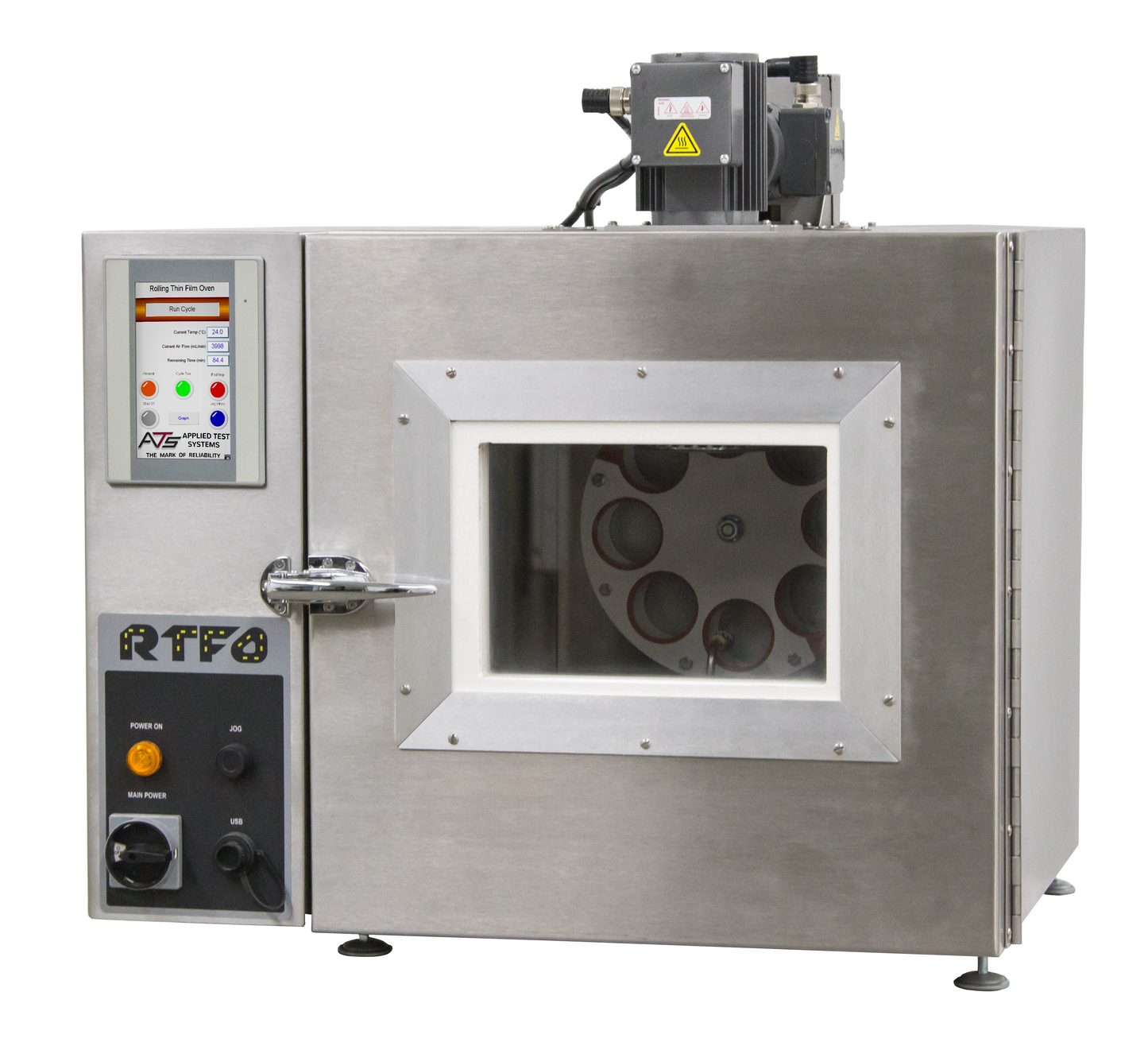

Rolling Thin Film Oven (RTFO Touch)


  • Benchtop unit w/ leveling legs
  • Double walled stainless steel oven
  • Touchscreen controller with easy to use, step-through instructions
  • High temperature silicon vacuum system for securing bottles in carriage
  • Temperature programmable from 0°C to 200°C
  • Maintains temperatures up to 220°C
  • Temperature recovery within 6 minutes of specimen loading
  • NIST traceable platinum RTD with an accuracy of +/- 1°C
  • NIST traceable digital flow meter 200-5,000 ml/min
  • Programmable temperature, preheat, aging time, rotation speed, and air flow
  • USB Port on the front for data downloads and software updates
  • VNC Viewer – remote monitoring capabilities with smart phone or tablet app


  • 8 specimen jars
  • Stylus & clip
  • OV-9100 (240 volt)
