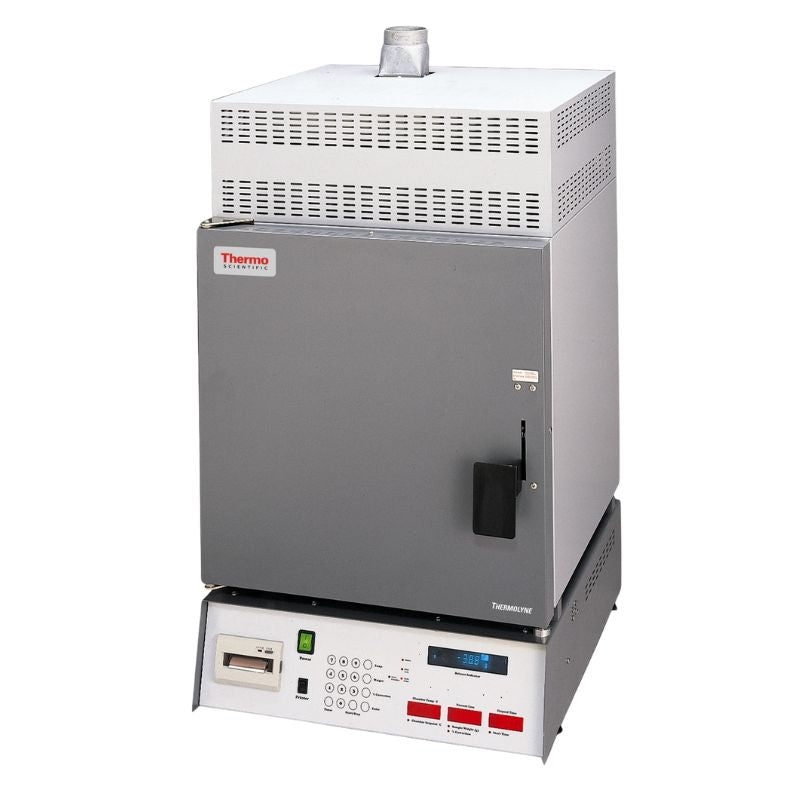

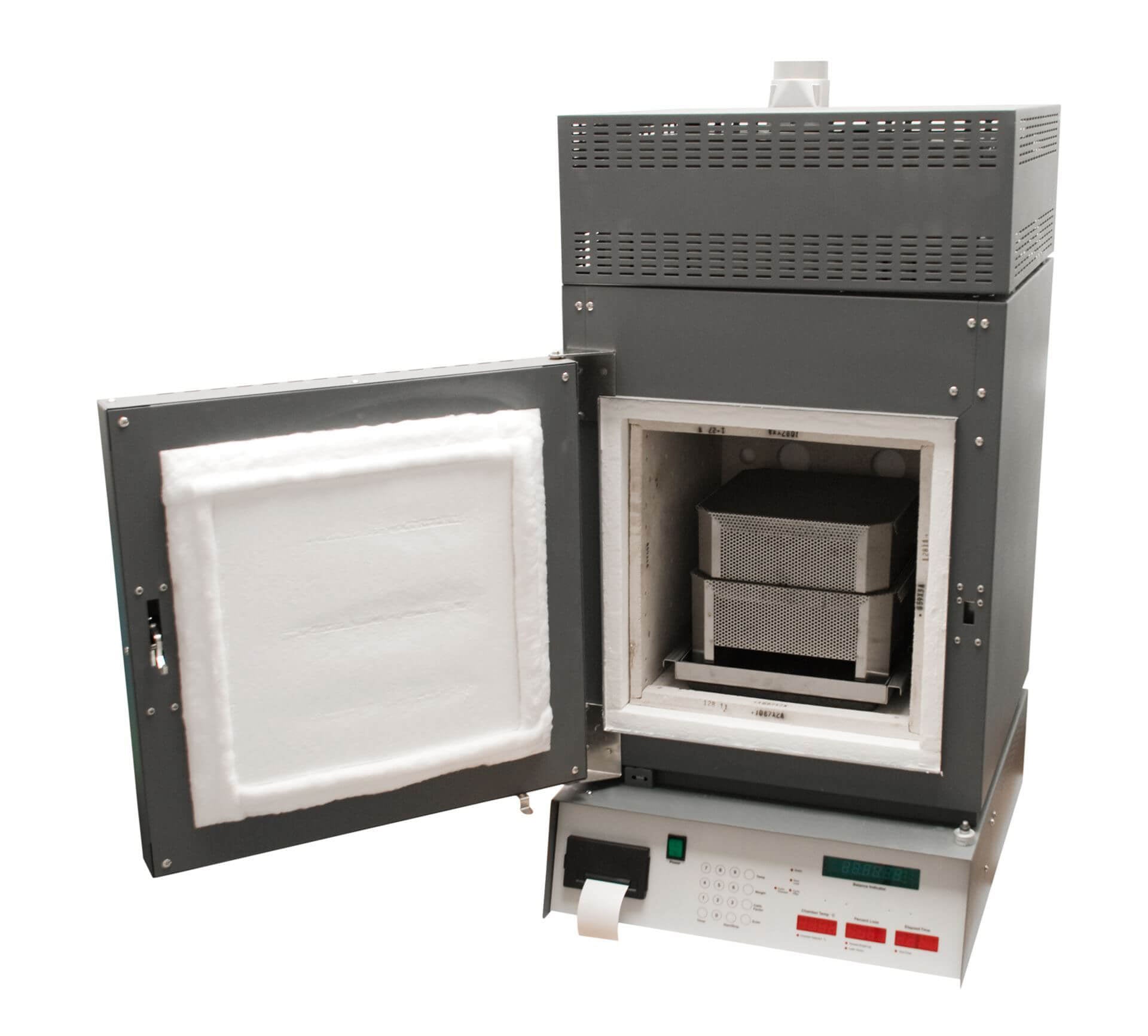

NCAT Furnace, Original Ignition Method - 240V or 208V


$ 12,249.00
Item #: NC-1001-240

USA and Canada Prices Only. Click here for International Quotes

NCAT Ignition Furnace without Kit - Available in 208V & 240V

  • Part #NC-1001C - Please specify voltage when requesting pricing
  • AASHTO T308 & ASTM D6307
  • Need an NCAT Upgrade? - Check out the Ignition™ Panel - HERE
  • Asphalt binder ignition testing is an environmentally friendly and cost effective test method to determine asphalt content of paving mixtures and ensure high quality and economical asphalt product
  • The ignition method reduces testing time when compared to solvent extraction
  • A 1,200-1,800g sample of asphalt can be tested in 30-45 minutes with the NCAT Furnace
  • The unit can accommodate samples up to 5,000g at extended testing times
  • The method also eliminates the cost of solvent, the secondary cost of solvent disposal and safety concerns when handling solvent in the lab
  • Standard NCAT Spec Sheet, click HERE - For Ignition upgrade cut sheet, click HERE


(1) Asphalt content tester

(1) Electronic balance

(1) Hearth tray, gray silicon carbide

(8) Ceramic tube supports, inside furnace chamber

(1) Instruction manual, inside furnace chamber

(6) Replacement fuses

  • 2 qty   1.6 Amp Fuse, Little Fuse #23901.6 All Models, (part number FZX47)
  • 2 qty   4 Amp Fuse, Schurter #034.3123 All Models, (part number FZX53)
  • 2 qty   6.3 Amp Fuse, Schurter #FSTO34.3125, (part number FZX61)

NCAT FAQ's - Click HERE!
