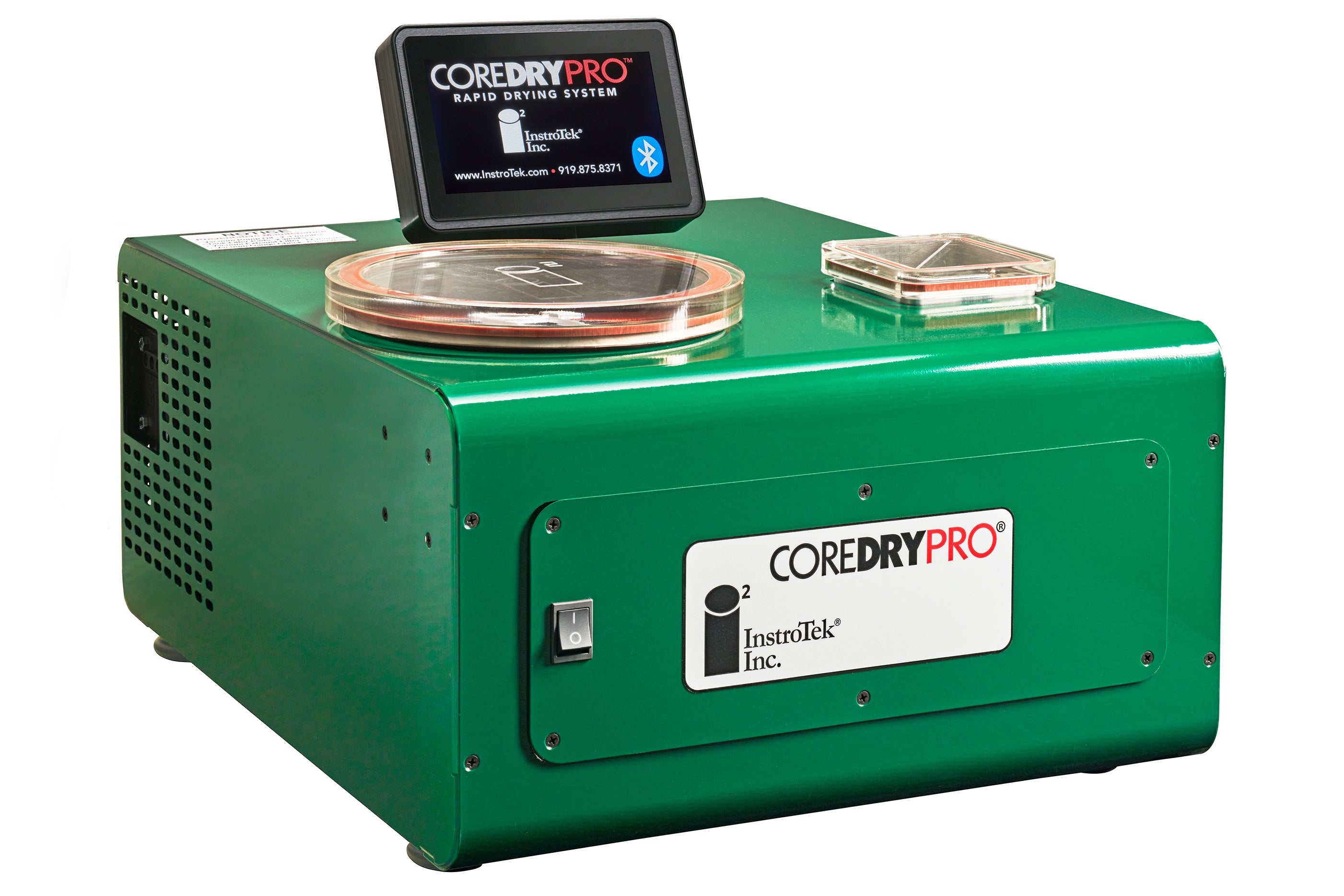

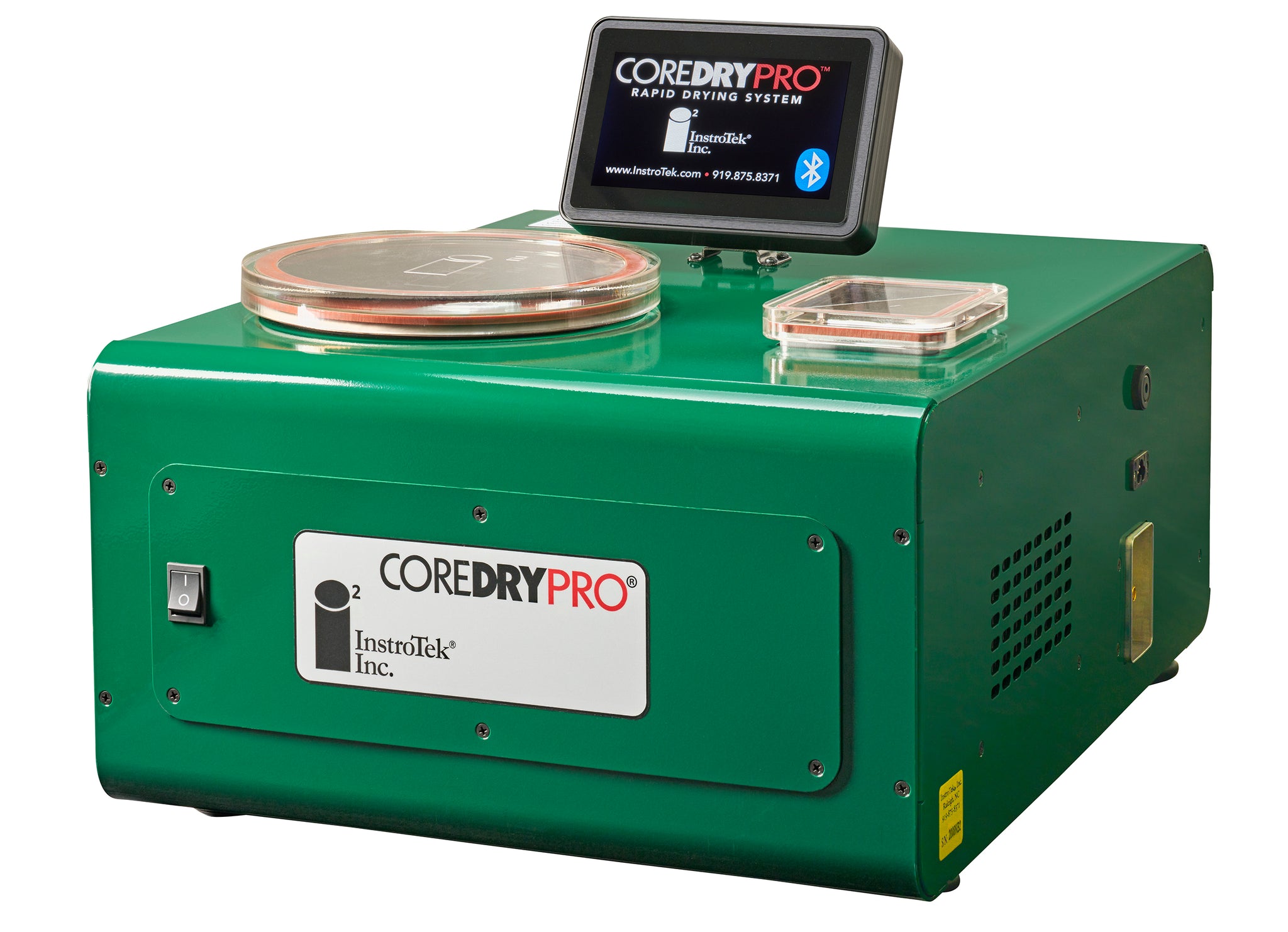

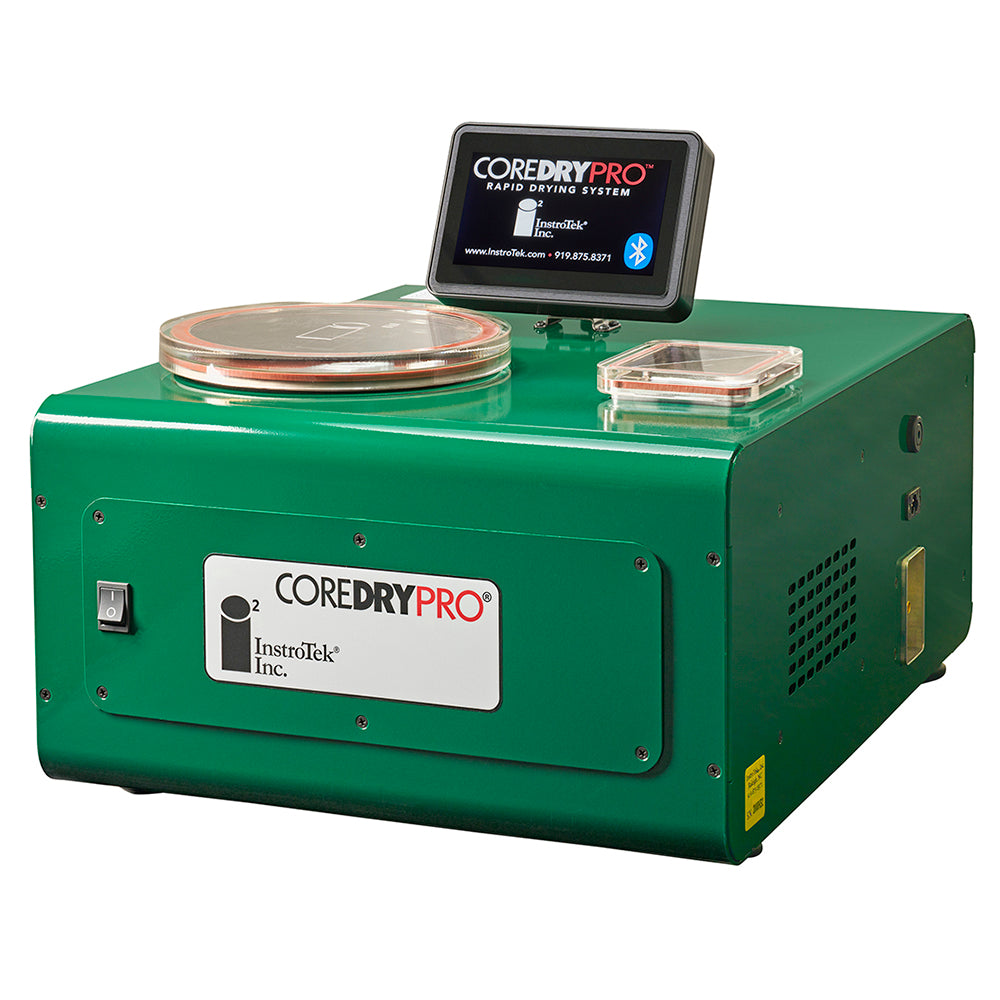

CoreDryPRO w/ PumpSaver

The InstroTek CoreDryPRO is a rapid asphalt and aggregate drying system designed to produce dry sample weights in minutes rather than waiting for conventional oven drying. Its high-vacuum drying process removes moisture while minimizing sample heating, making it especially useful for asphalt cores, gyratory specimens, loose mixtures, and aggregates when rapid density or moisture results are needed.

Key Features

• ASTM D7227 - AASHTO PP75 - AASHTO T280
• Rapidly dries asphalt cores, gyratory specimens, loose mixtures, aggregates, and other materials
• High-vacuum drying dramatically reduces drying time compared with conventional ovens

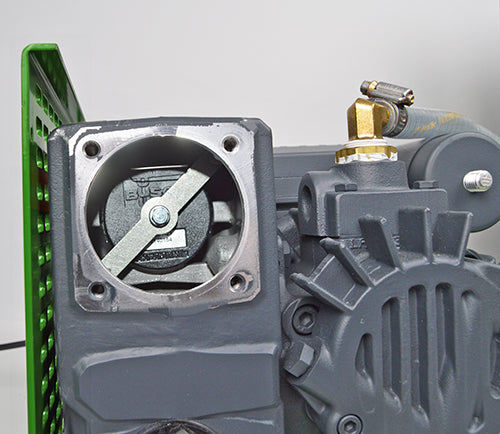

• PumpSaver technology helps protect the vacuum pump during operation
• Large color touchscreen provides guided operation
• Built-in maintenance prompts assist with routine service
• Internal vacuum-pump port provides additional laboratory utility
• External pump-control connection supports compatible AutoRice operation
• Helps laboratories obtain dry specimen weights while field operations are still underway

Included Items

CoreDryPRO drying system, integrated vacuum system, PumpSaver system, touchscreen controller, and incorporated moisture-management components.

Typical Applications

Rapid drying of asphalt cores, gyratory specimens and loose asphalt mixtures; aggregate moisture determination; rapid dry-weight determination; asphalt density testing; development of nuclear and non-nuclear density-gauge offsets; asphalt mix design; and production QC/QA.

Lab Manager's Tip

CoreDryPRO is particularly valuable when density results need to influence paving operations the same day. Instead of waiting hours for an oven-dried specimen, the lab can obtain the dry weight much sooner and complete the associated density calculations while the paving operation is still active.
