InstroTek SmartLoader Universal Load Frame – IDEAL-CT, TSR, SCB & BMD Testing

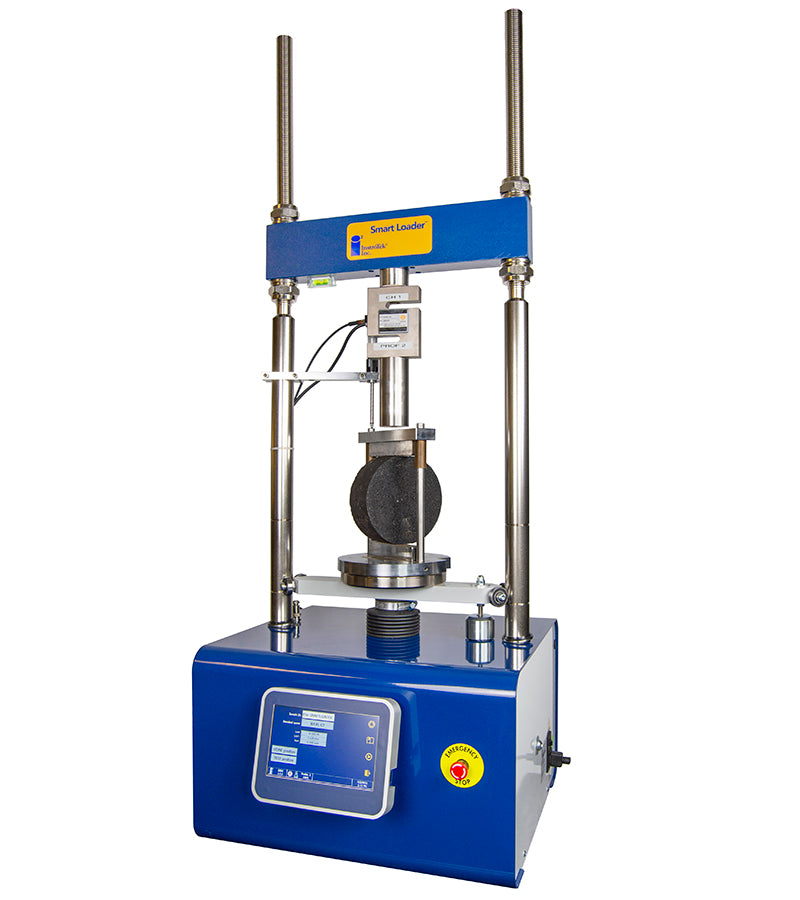

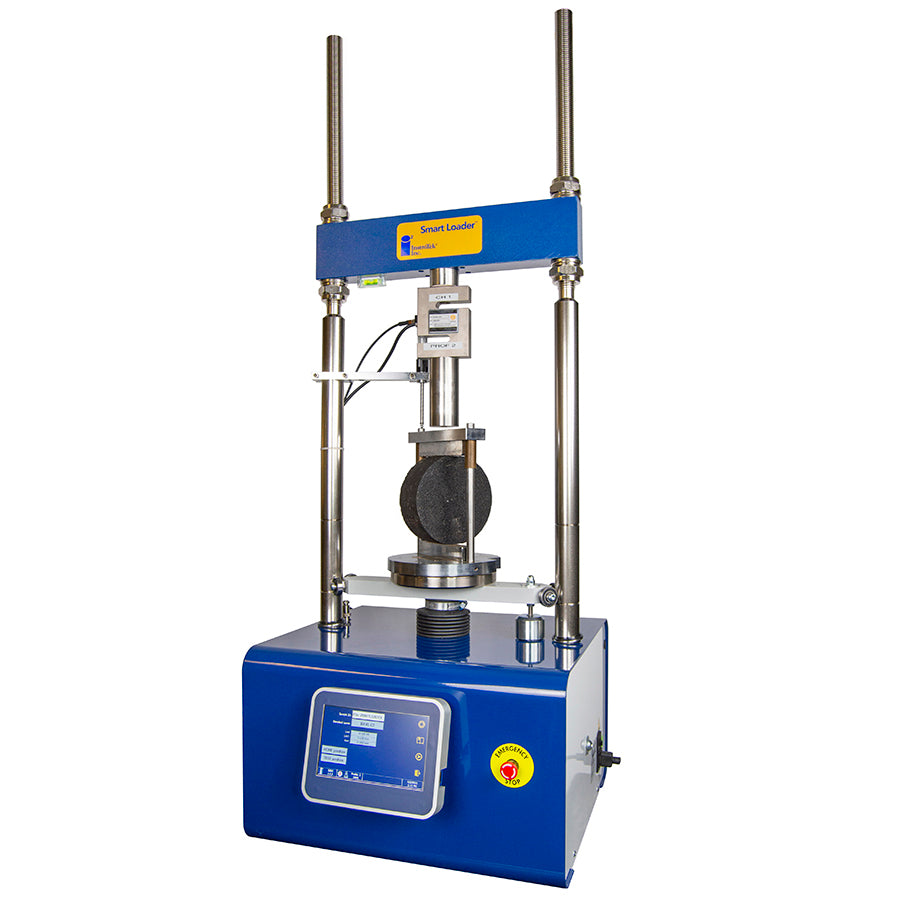

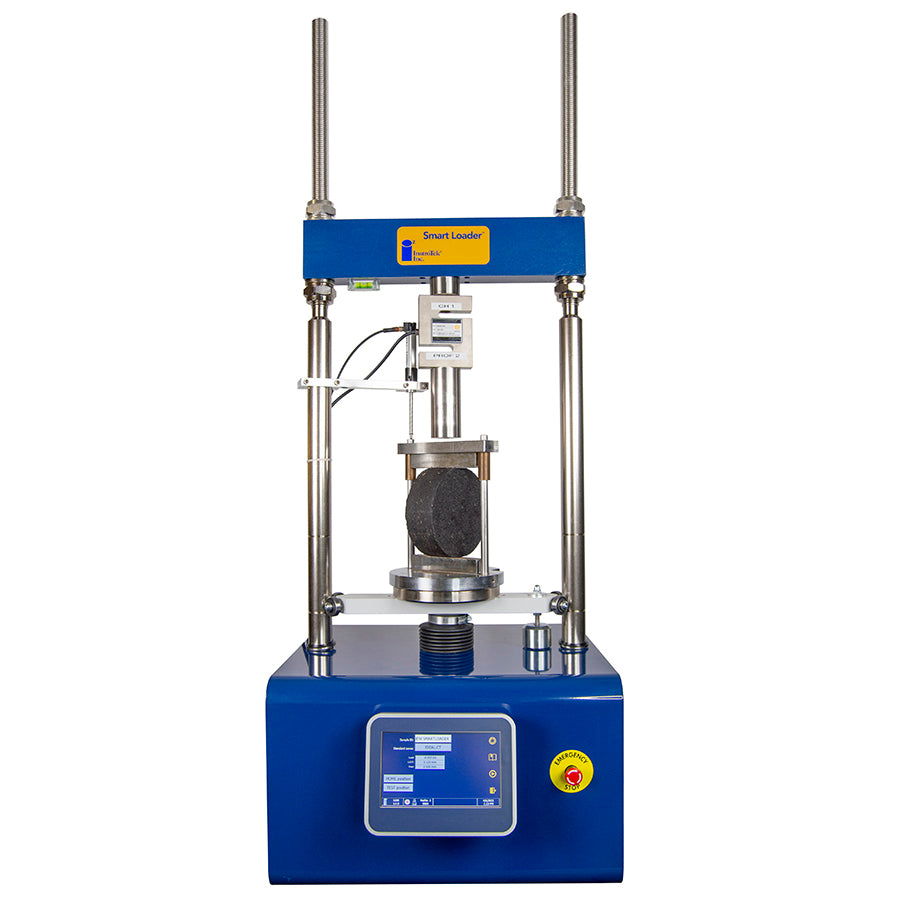

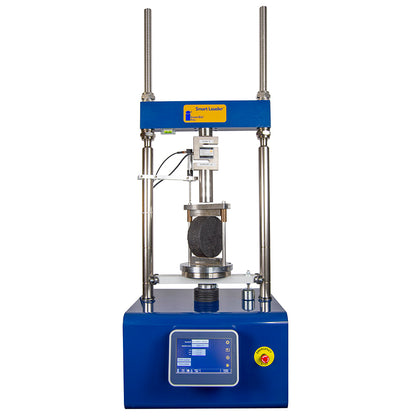

The InstroTek SmartLoader is a variable-speed universal load frame designed to consolidate multiple asphalt and soil loading tests into one compact laboratory system. It comes preprogrammed for several Balanced Mix Design tests and can operate in both load and displacement control, making it a versatile platform for laboratories performing IDEAL-CT, IDEAL-RT, SCB, TSR, Marshall, and direct-shear testing.

Key Features

• Supports ASTM D8225 IDEAL-CT testing
• Supports ASTM D8044 and AASHTO TP 124 SCB applications
• Supports AASHTO T 283 TSR testing
• Supports Tex-249-F shear bond testing with appropriate fixture
• Preprogrammed BMD testing capability
• Load and displacement control
• Up to eight analog input channels
• Color touchscreen display
• Fully automatic test process
• Real-time load/displacement graphing
• Removable memory capable of storing thousands of tests
• User-programmable additional test methods
• Maximum compression: 50 kN / 11,000 lb
• Maximum tension: 25 kN / 5,600 lb
• Ram speed: 0.01–51 mm/min
• 100 mm / 4" ram travel

Included Items

HMA's current configuration identifies:

• SmartLoader universal load frame
• Calibrated 50 kN load cell
• Calibrated 25 mm LVDT
• LVDT holder
• Touchscreen control system

Test-specific fixtures and jigs should be selected according to the tests the laboratory intends to perform.

Typical Applications

IDEAL-CT, IDEAL-RT, TSR/IDT, SCB cracking tests, Marshall testing, asphalt interlayer shear testing, Balanced Mix Design, and selected soil compression tests.

Lab Manager's Tip

The value of the SmartLoader is its versatility. Instead of dedicating separate load frames to individual BMD procedures, a laboratory can use one platform and change fixtures as testing requirements evolve. When quoting one, identify the customer's current and anticipated test methods so the correct fixtures can be packaged with the frame.

• SmartLoader_Spec_Sheet_2.pdf
