HWT Wave-Pro - Sine Wave Verification Kit

The InstroTek HWT WavePRO is a verification system designed specifically for checking the load and sinusoidal wheel motion of Hamburg Wheel Trackers. It provides laboratories with a practical method for verifying critical Hamburg operating parameters, including static and dynamic wheel load, wheel center point, wheel speed, and waveform accuracy.

Key Features

• Meets AASHTO T 324 specifications for applicable Hamburg Wheel Tracker verification parameters
• Verifies sinusoidal wheel motion and reports RMSE
• Measures static and dynamic wheel load
• Determines wheel center point
• Measures wheel speed and waveform
• Compatible with major Hamburg Wheel Tracker systems; supported systems should be confirmed with InstroTek
• NIST-traceable calibration
• ISO/IEC 17025 accredited calibration

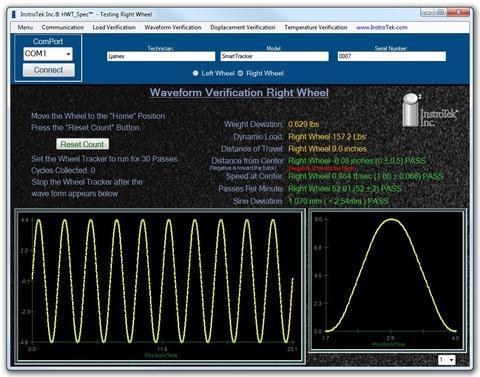

• Built-in data-acquisition software simplifies verification
• Simplified alternative to the full HWT-Pro when displacement and water-temperature verification are not required

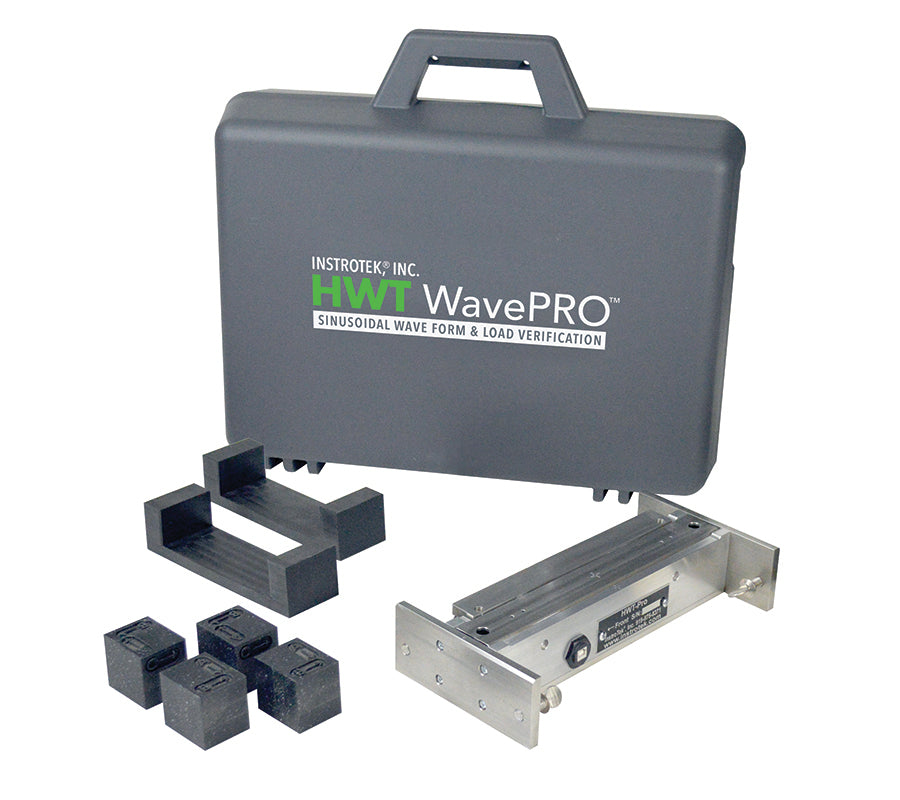

Included Items

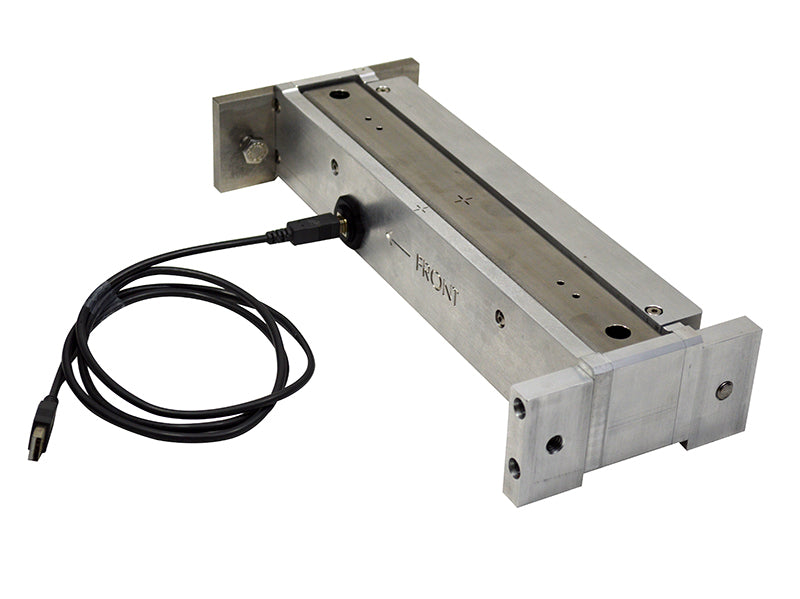

Load bar, spacer blocks for Hamburg molds, data-acquisition system with built-in software, and NIST traceability certificate.

Typical Applications

Hamburg Wheel Tracker verification, sinusoidal waveform verification, wheel-load verification, wheel-speed verification, wheel center-point verification, equipment troubleshooting, preventive maintenance, DOT laboratory quality systems, and asphalt performance-testing laboratories.

Lab Manager's Tip

WavePRO is a good choice when your primary concern is verifying the mechanical loading and sinusoidal movement of the Hamburg. If you also need rut-depth displacement and water-temperature verification, step up to the full HWT-Pro system, which adds those capabilities.
