Moisture Room Control Panel

Moisture Room Control Panel

SKU: Item #:CT-1980

Regular price $ 3,599.99
Regular price Sale price $ 3,599.99
Sale Sold out
Quantity
Shop all Concrete View full details

Additional Information

Product Description

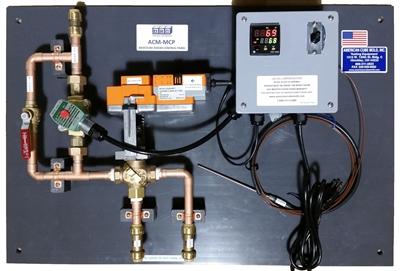

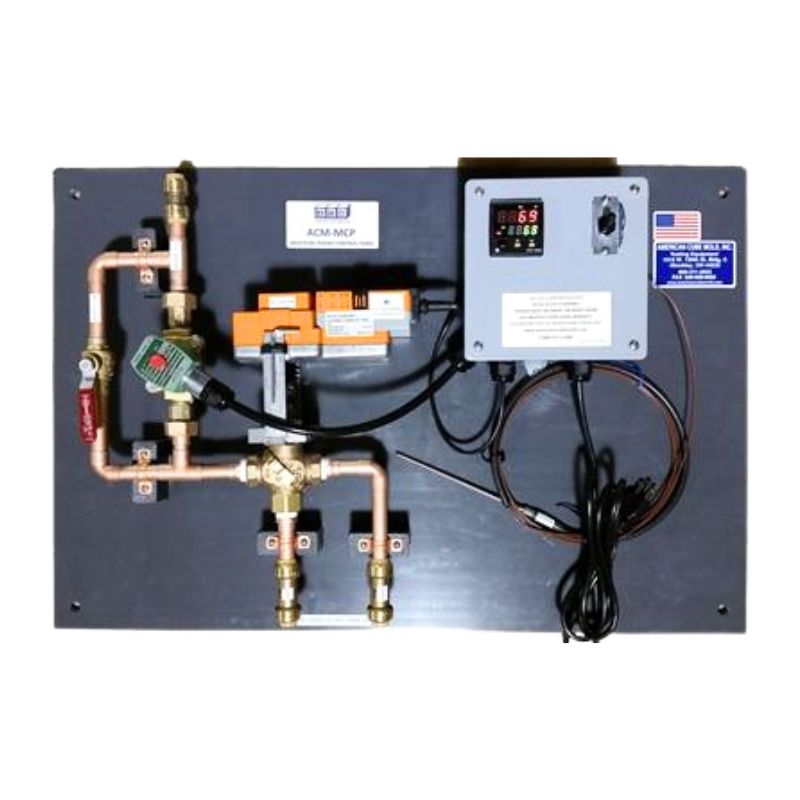

The Moisture Room Control Panel provides automatic temperature and humidity control for concrete curing rooms. By mixing hot and cold water, this wall-mounted system is designed to maintain the conditions needed for curing concrete specimens without a separate fogger or compressed-air system.

Key Features

  • Designed for concrete curing-room conditions referenced in ASTM C511 and AASHTO M 201
  • HMA lists related concrete specimen procedures ASTM C192 and AASHTO T 23
  • Targets 73.4°F ±3°F curing-room temperature
  • Designed to maintain a high-humidity curing environment
  • Automatic mixing of hot and cold water
  • Digital reference display for monitoring conditions
  • Manual bypass for use during a power outage
  • SharkBite-style quick-connect water fittings
  • Space provided for optional temperature recorder or data logger

Lab Manager's Tip

Verify the room's water supply temperatures, drainage, and humidity performance before commissioning. A control panel alone does not establish compliance; monitor and document actual room conditions against the applicable curing standard.

Typical Applications

Concrete cylinder and beam curing rooms, cement and concrete materials laboratories, DOT concrete testing facilities, precast QC and commercial testing laboratories.

Specifications

Installation: Wall-mounted control panel
Temperature target: 73.4°F ±3°F
Control method: Automatic hot/cold water mixing
Manual bypass: Included
Data recording: Space for optional recorder/logger
