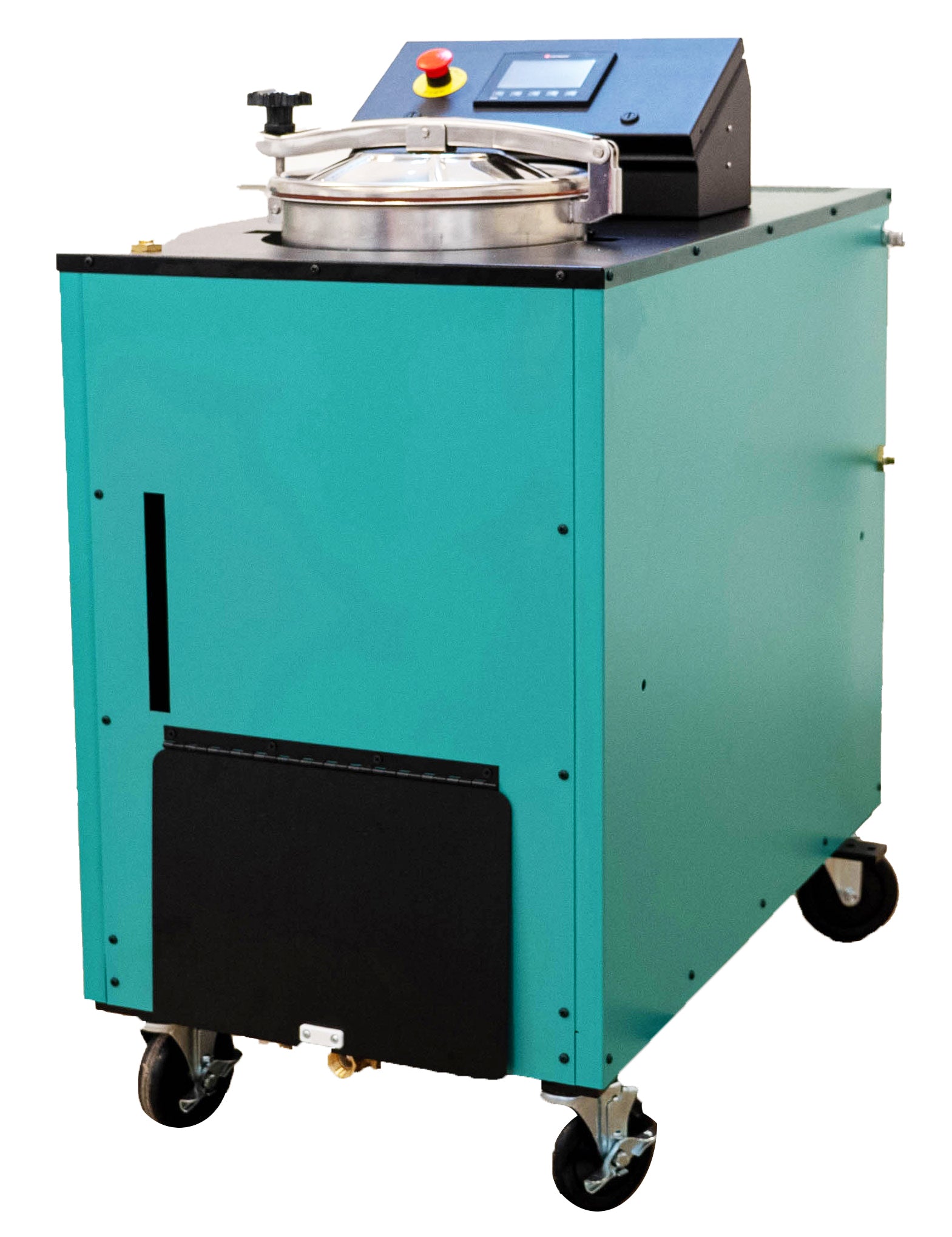

SolvTrue™ S700 & S700V- Industrial Solvent Recycler - 120 or 220V

CBG Biotech

$ 9,679.49
Item #: AC-3000

USA and Canada Prices Only. Click here for International Quotes

Asphalt Extraction Solvent Recycler

Choose Voltage & Style from Drop-Down Menu

SolvTrue has been designed to recycle the solvents used in asphalt extraction tests. It successfully extracts pure solvent from the oil and wastes and generates clean solvent ready for reuse in a new test. SolvTrue reduces the need for new solvent and eliminates problems with solvent disposal

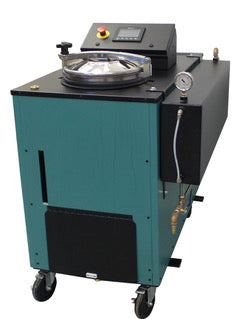

**SolvTrue S700V with Vacuum Assist - For Recycling Solvents with High Boiling Points

Automation

  • Microprocessor controlled with easy-to-read LCD display and TouchView PLC
  • Custom programming for unique solvent requirements using Waste Solvent Mixture Wizard technology
  • Designed and built for multiple shift operations

Safety

  • Multiple safety controls with end-of-cycle shutoff
  • Automatic mixture ignition and bag operating limits
  • RTD probes monitor thermal oil and condenser temperatures
  • Oil is self-contained

Ergonomics

  • Quiet operation
  • Mobile; mounted on locking wheels for easy relocation with stabilizer bar for added support
  • Bag-lined tank allows easy removal of solid contaminants
Specifications
Capacity: 7 gallons / 26 Liters
Voltage: 120V 60Hz or 240V 60Hz
Dimensions: 22.25”Wx39”Lx44”H (57cmWx99cmHx112cmD)
Distillation Rate: 0.75-1.25 GPH
Recovery Yields: 85-98%
Max. Operating Temperature: 206°C
Min. Operating Temperature w/ Tank Liner: 206°C (Bag Op. Temp. Restricted)
Average Volumetric Distillation Rate: 0.75-1.25 GPH*
Estimated Cycle Times: 5.5-9.0 Hours
  • AC-3000 (120V) or AC-3005 (220V)
