100mm & 150mm JBR Tack Bond Shear Strength Jig

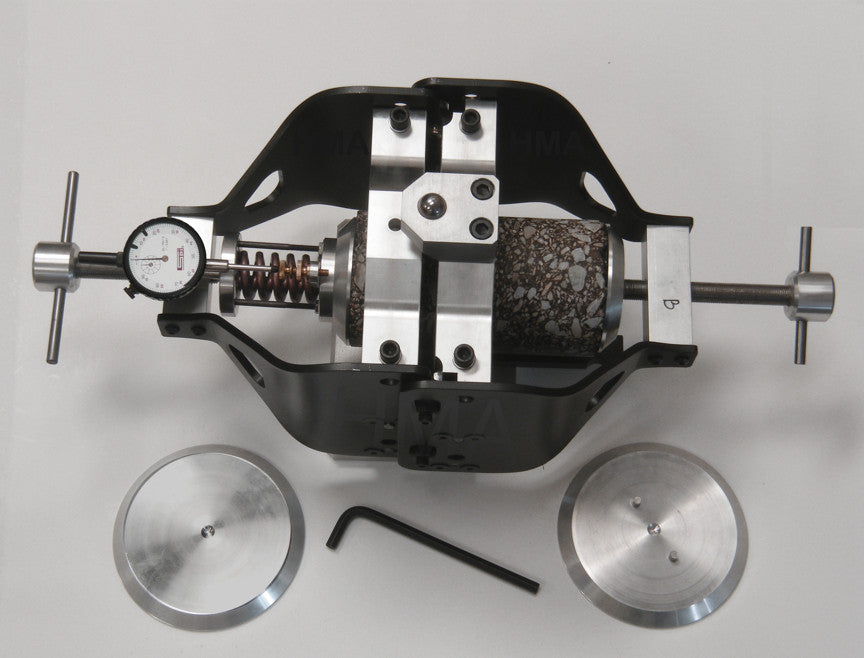

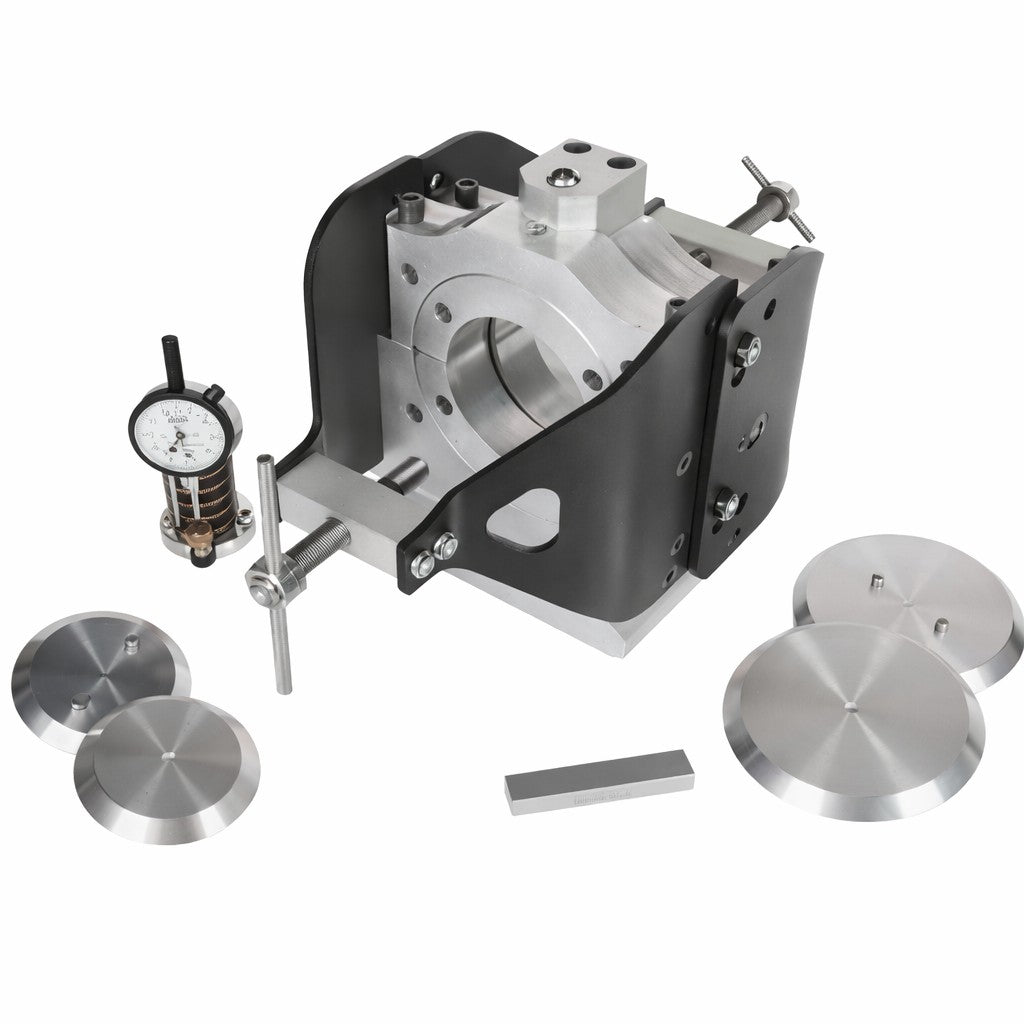

The JBR Tack Bond Shear Strength Jig is designed to measure the force required to shear the interface between pavement layers bonded with tack coat. Its heavy steel frame and interchangeable specimen adapters support evaluation of 100mm and 150mm pavement cores using a suitable load frame.

Key Features

• Designed for asphalt interlayer tack-bond shear evaluation
• Accepts 100mm and 150mm diameter cores using supplied adapters
• Fixed and moving shear plates support controlled loading
• Roller bearings reduce drag during shearing
• Calibrated spring and dial indicator control lateral specimen load
• Shear plane gap: 0.5 inch (12.5mm)
• Maximum shear travel: 0.5 inch (12.5mm)
• Designed to fit many Marshall load frames with at least 10 inches of clearance

Included Items

Shear jig assembly with insert adapters for 100mm and 150mm specimens and lateral-load dial indicator arrangement, as described in the HMA listing.

Lab Manager's Tip

Verify that the jig fits your load frame and that its lateral-load setting is calibrated. Because tack-bond shear procedures may be specified by individual DOTs rather than one universal ASTM/AASHTO method, follow the governing agency's specimen conditioning, shear rate and reporting requirements.

Typical Applications

Tack coat bond testing, pavement interlayer shear evaluation, asphalt mix research, DOT pavement materials testing and asphalt construction QC.
